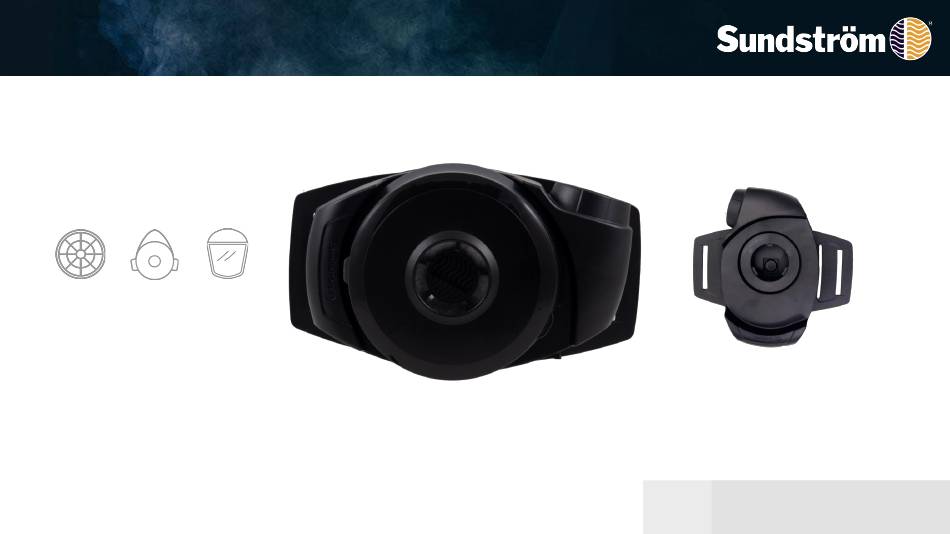

Operating instructions
SR 905
Remote filter holder
Revision: 01
OI01T-300218 SR 905
1
2019-11-11

Advertisement

loading
Need help?

Need help?

Do you have a question about the SR 905 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sundstrom SR 905

Summary of Contents for Sundstrom SR 905

  • Page 1 Operating instructions SR 905 Remote filter holder Revision: 01 OI01T-300218 SR 905 2019-11-11...

  • Page 2: General Information

    Before use, both the user instruction and those for the half mask, the breathing hose and the filters must be carefully studied. The SR 905 is a remote filter holder that, together with half mask and breathing hose, is included in the Sundström respiratory protective device systems conforming to EN 12083:1998.
  • Page 3 Unpacking SR 905 Packing list: ▪ Remote filter holder ▪ Belt attachment ▪ Cleaning tissue ▪ User instruction OI01T-300218 SR 905 2019-11-11...
  • Page 4 1.2 Remove the inhalation 1.4 Fit the pre-filter in the pre- membrane from the filter filter holder and press it into holder. Save the membrane place on the filter. for future use. OI01T-300218 SR 905 2019-11-11...
  • Page 5 Press the until the filters separate. filters together with your fingers placed around the outer edges of the filters until you hear a click. 2.2 Correctly mounted gas filter, particle filter, pre-filter and pre-filter holder. OI01T-300218 SR 905 2019-11-11...
  • Page 6 3. Belt 3.1 Assemble the belt in the 3.2 Assemble the SR 905 to belt attachment. the belt attachment. Two alternatives. Two alternatives. 3.3 Assemble the filter holder with filter onto the SR 905. OI01T-300218 SR 905 2019-11-11...
  • Page 7 Check all parts. Replace if worn, broken, or in other way defect. Check that you have selected the right filter and it has been installed properly. 4.1 Take the SR 905 on and 4.3 Put on the half mask. adjust the belt so that the...
  • Page 8 SR 905. Assemble the breathing hose into SR 905. Perform a fit check, se section 5. Fit check. Page OI01T-300218 SR 905 2019-11-11...
  • Page 9 5. Fit check 5.1 Place the palm of your 5.2 Rotate back the belt so hand lightly over the hole on that the SR 905 is placed at the pre-filter holder to make it the back of your waist. tight.
  • Page 10 If necessary, spray the SR 905 with 70 % ethanol or isopropanol solution for disinfection. Leave the equipment to dry, and then assemble it.

  • Page 11: Maintenance Schedule

    7. Maintenance schedule Every year Before use After use ● Visual check ● Fit check ● ● Cleaning ● Change membrane ● Change gasket Change filtrer See User instructions for filters OI01T-300218 SR 905 2019-11-11...
