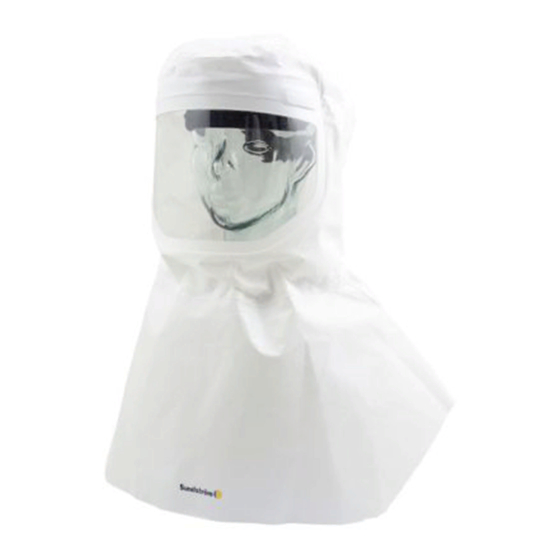

Sundstrom SR 601 Operating Instruction
Hoods
Hide thumbs
Also See for SR 601:
- Instructions for use manual (85 pages) ,
- User instructions (84 pages) ,
- User instruction (164 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Sundstrom SR 601
Summary of Contents for Sundstrom SR 601
- Page 1 Operating instruction SR 601, SR 602 Revision: 01 OI06H-5418 SR 601 SR 602 1 2019-10-30...
-
Page 2: General Information
Instructions for use for SR 601, SR 602 should be read before use. Hoods SR 601/SR 602 together with the fan unit SR 500 or SR 700 are included in the Sundstrom fan- assisted respiratory protective device system conforming to EN 12941:1998, TH3. - Page 3 Unpacking SR 601, SR 602 Packing list: • Hood • Head harness with air-duct • Breathing hose • User instructions • Cleaning tissue OI06H-5418 SR 601 SR 602 3 2019-10-30...
- Page 4 1.2 Fit the head harness and 1.4 Fit the hood into the two air-duct into the hood. fixing grooves on the air-duct, one on each side. OI06H-5418 SR 601 SR 602 4 2019-10-30...
- Page 5 1.6 Check that the air-duct´s 1.8 Pull down the rear part of front locking pin is in the the hood to the correct correct position. position over the air- duct/breathing hose. OI06H-5418 SR 601 SR 602 5 2019-10-30...
- Page 6 Tip! When the bag is turned achieved, check that: with the measuring tube -The flow meter is vertical inwards it can be used as a -The ball moves freely storage bag -The bag seals well around the hose. OI06H-5418 SR 601 SR 602 6 2019-10-30...
- Page 7 (SR 602) neck seal using the If necessary, adjust the head harness. There are a lot of adjustment elastic neck strap. options. See section 4. To adjust the head harness easier, remove the head harness from the hood. OI06H-5418 SR 601 SR 602 7 2019-10-30...
- Page 8 If necessary, adjust the head harness in height by The two pins can be placed in lengthening or shortening the the upper or lower holes. two straps for the top of the head. OI06H-5418 SR 601 SR 602 8 2019-10-30...
- Page 9 There are two options. 4.6 Width adjustment of the head harness. If necessary, adjust the circumference of the head harness by means of the knob at the rear of the head harness. OI06H-5418 SR 601 SR 602 9 2019-10-30...
- Page 10 5.4 If the equipment is more and the air-duct. heavily soiled, use a soft brush or sponge moistened with a solution of water and dishwashing detergent or the like. Rinse and let dry. OI06H-5418 SR 601 SR 602 10 2019-10-30...
-
Page 11: Maintenance Schedule
The use of non-genuine parts or modification of the equipment may • • Cleaning reduce the protective function and put at risk the approvals received by the product. • Change of gasket for breathing hose OI06H-5418 SR 601 SR 602 11 2019-10-30... - Page 12 Secure the two loose sockets of the sweatband onto the head harness. Assemble in reverse order. OI06H-5418 SR 601 SR 602 12 2019-10-30...
- Page 13 8. Change the head harness 8.1 Remove the head Assemble in reverse order. harness from the air- duct/hood by releasing the three fixing points. 8.2 Fit a new sweatband according to the instructions in section 7. OI06H-5418 SR 601 SR 602 13 2019-10-30...
- Page 14 1. Assemble Remove the breathing hose from the air-duct. 9.2 Remove the hood from the air-duct by releasing the two fixing grooves and pull off the hood from the head harness and air-duct. OI06H-5418 SR 601 SR 602 14 2019-10-30...
- Page 15 1. Assemble. two fixing grooves and pull off the hood from the head harness and air-duct. 10.2 Remove the air-duct from the head harness by releasing the three fixing points. OI06H-5418 SR 601 SR 602 15 2019-10-30...
