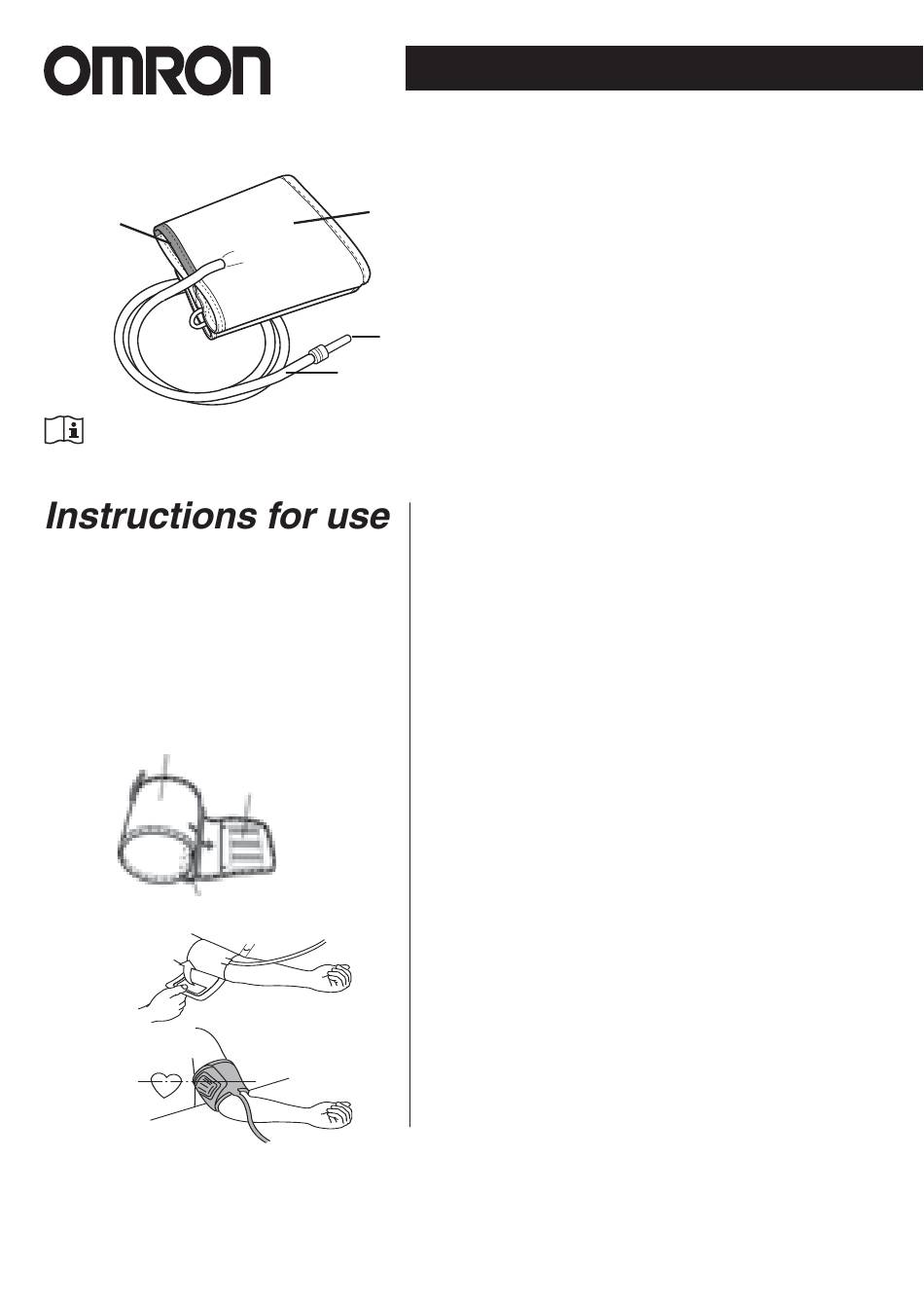

CS2 Small cuff (HEM-CS24)
Green Mark
Please read this instruction manual thoroughly before using the unit.
Please keep for future reference.
Pile side material
Pile side material
Sewn hook material
Sewn hook material
D-ring D-ring
2
Cuff
Air Plug (connects to Air Jack)
Air Tube
1 – 2 c m
1 – 2 cm
Instruction Manual for Small Cuff
Thank you for purchasing the OMRON Small Cuff.
Arm circumference for this cuff is 17 to 22 centi-
meters. OMRON Small Cuff can be connected to
various OMRON Blood Pressure Monitors. Please
refer to the original instruction manual of your Blood
Pressure Monitor.
Please check your present product as to which plug
you must use. Note that two plugs are extremely
similar, connect the correct air plug to the air tube.
Using the wrong plug may cause air leakage and
incorrect readings.

Applying the Arm Cuff

1. Put your left arm through the cuff loop.
Note: If the cuff is not assembled, pass the end
of the cuff furthest from the tubing through
the metal D-ring to form a loop. The smooth
cloth should be on the inside of the cuff loop.
2. Position the arm correctly.
1) The air tube should run down the inside of your
forearm and be in line with your middle finger.
2) The bottom of the cuff should be approximately
1 to 2 cm above your elbow.
3) Apply the cuff to your upper arm so that the
marker (arrow under tube) is centered on the
middle of your inner arm and points down the
inside of the arm.
