- Page 2 Mounting and installation ......................11 Conversion of previous application program versions ..............12 2.2.1 Procedure ...........................12 Additional voltage output ......................13 Reset ............................14 Faults ............................15 Ordering details ..........................16 Power Supply Standard, 640 mA, MDRC, C4-KNX-PS640MA (KNXPROD File Name: SV/S 30.640.3.41) 200-00549-B 10262018 LW...

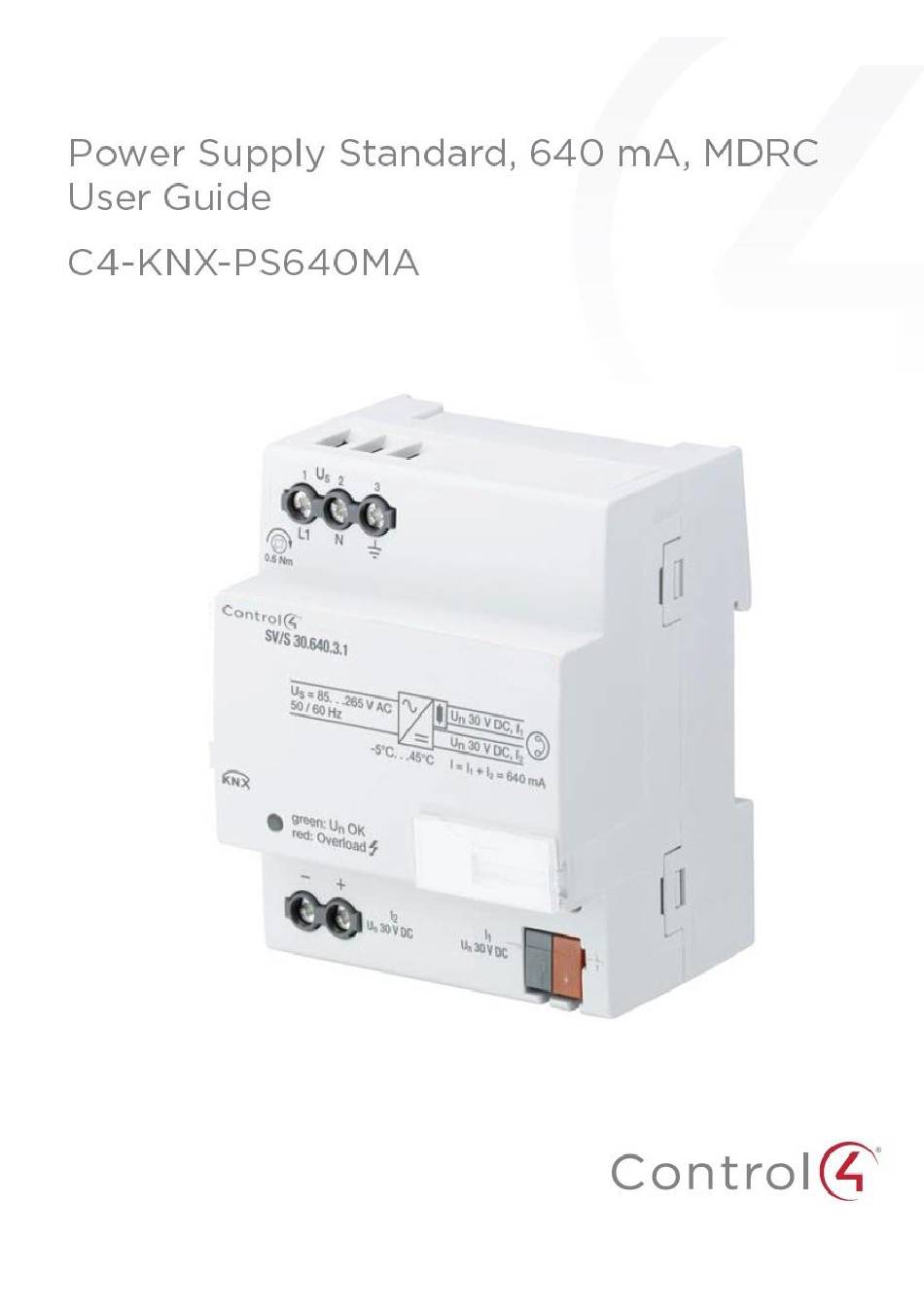

- Page 3 This manual describes the function and configuration of the Power Supply Standard, 640 mA, MDRC. Use ETS v.5.6.6 (or higher). Power Supply Standard, 640 mA, MDRC, SKU: C4-KNX-PS640MA. KNXPROD filename: SV/S 30.640.3.41, download: https://ctrl4.co/knx-ps640ma Subject to change. Exclusion of liability: Although the contents of this document have been checked to ensure that they are consistent with the hardware and software, deviations cannot be completely excluded.
- Page 4 Control4 ® The Control4 KNX Power Supply Standard, 640 mA, MDRC, SKU: C4-KNX-PS640MA (KNXPROD File Name: SV/S 30.640.3.41. Download: https://ctrl4.co/knx-ps640ma) provides the system voltage (SELV) for KNX components. The choked output voltage powers individual components and enables them to communicate.
- Page 5 Control4 ® Each Control4 KNX Power Supply Standard, 640 mA, MDRC, SKU: C4-KNX-PS640MA (KNXPROD File Name: SV/S 30.640.3.41. Download: https://ctrl4.co/knx-ps640ma) has an integrated choke. It connects to the KNX bus via a bus connection terminal. Devices with diagnostics or bus functions for complex applications are available alongside standard devices.
- Page 6 ® Control4 KNX power supplies generate and This device has an additional 30 V DC monitor the KNX system voltage (SELV). short-circuit and overload protected The bus line is decoupled from the power voltage output that can be used to supply by an integrated choke.
- Page 7 ® Control4 Protection class EN 61 140 Isolation category Overvoltage category III under EN 60 664-1 Pollution degree 2 under EN 60 664-1 Temperature range Operation -5 °C…+45 °C -25…+55 °C Storage -25…+70 °C Transport 93 %, no condensation allowed Ambient conditions Maximum air humidity Design Modular installation device (MDRC) Modular installation device, Pro M...
- Page 8 ® Control4 Bus connection terminal Label carrier Power supply connection U Status LED Voltage output without choke, I...
- Page 9 ® Control4...
- Page 10 ® Control4 Indicator Description Function LED status Two-colored indicator for displaying mains Green: Device operating normally (I < I (green/red) voltage, overload and short-circuit. Red: Overload (I < I < I Overload and short-circuit current values Red, flashing: Current limiting is active apply to the total current, I = I Output voltage regulated downwards (I = I...
- Page 11 ® Control4 ® For Control4 KNX devices, it is possible to adopt the parameter settings and group addresses from earlier versions of the application program from ETS v.5.6.6 (or higher). • Import the current VD file into ETS and add a product to the project, using the current application program.
- Page 12 ® Control4 Control4® KNX Power Supply Standard, 640 mA, MDRC, SKU: C4-KNX-PS640MA (KNXPROD File Name: SV/S 30.640.3.41. Download: https://ctrl4.co/knx-ps640ma) devices have a 30 V DC voltage output without choke. This can be used in combination with an additional choke to power a main or area line. To do this, the devices must be installed in accordance with the connection schematic below.
- Page 13 ® Control4 During a reset the bus line is disconnected from the output voltage and shorted. This restarts devices connected to this bus line. The red Reset LED lights up for the duration of the reset. The LED goes off when the reset is complete.
- Page 14 ® Control4 C4-KNX-PS640MA (KNXPROD File Name: SV/S 30.640.3.41. Download: https://ctrl4.co/knx-ps640ma) Indicators for normal operation, short-circuit and overload Description Recommendation green/ Device operating normally. green Output overloaded. Rectify overload or reduce number of bus devices until there is no longer an overload and only the green U OK LED is lit.
- Page 15 ® Control4 Appendix Ordering details Short description Description Weight 1 pcs [kg] Pkg qty [pcs.] C4-KNX-PS640MA KNX Power Supply, 640 mA, MDRC 0.25 KNXPROD File Name: SV/S 30.640.3.41 Download: https://ctrl4.co/knx- ps640ma...
