Bus Power Supply, 48V
Installation Guide
Introduction

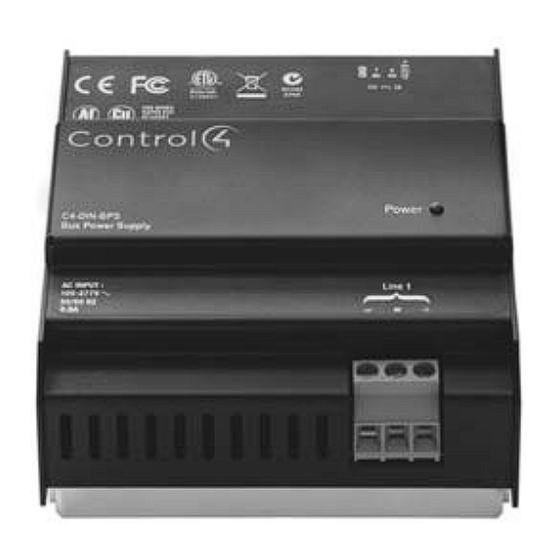

The Control4® Bus Power Supply (C4-DIN-BPS48) is intended for use in a Control4
system. This device installs in a Control4 Centralized Lighting panel or in any
standard DIN rail panel with 35 mm rails. The Bus Power Supply provides the
power to the Bus Ethernet Gateway (C4-DIN-BEG) and Control4 wired keypads
(C4-KCB-xx and C4-SKCB-xx) in a Centralized Lighting system.
Package contents
•
Bus Power Supply
•
Pluggable Terminal Block (1)
•
Bus Power Supply Installation Guide (this document)
Warnings and considerations
Warning! Improper use or installation can cause SERIOUS INJURY,
DEATH or LOSS/DAMAGE OF PROPERTY.
Attention ! Une mauvaise utilisation ou installation peut entraîner des
blessures graves, décès ou perte / dommages à la propriété.
Warning! This device must be protected by a circuit breaker
(20A max).
Attention ! Cet appareil doit étre protègè par un disjoncteur
(20A max.)
Warning! Disconnect the power for all lines feeding into the panel
before installing this product.
Attention ! Couper le courant électrique pour tous les disjoncteurs
d'alimentation dans le panneau avant d'installer ce produit.
Important! The Bus Power Supply should be installed by a licensed
electrician in accordance with all national and local electrical codes.
Requirements and specifications
Before installing this product, make sure that the Control4 5-Slot or 2-Slot Panel
(or other cabinet) to house the power supply has been installed.
Part number
Power input
Power output
Power consumption
Connectors
Operating temperature
Humidity
Storage
Dimensions
DIN module width
Weight
Shipping weight
Front view
Figure 1: Front view
A
Pluggable terminal connector
B
Power LED
C
Line voltage connector
C4-DIN-BPS48
100-277VAC / 1.25A
48 VDC 1.2A (120-277V)
48 VDC 1.0A (100-120V)
75W, 120V/1.0A; 277V/0.6A
One RS-485 Pluggable Terminal Block
36 AWG to 14 AWG (0.14 mm to 1.5 mm)
One Line Voltage Screw Terminal
• One Line
• One Neutral
• One Earth Ground
• One 26 AWG to 12 AWG
(0.12 mm to 4 mm)
32˚F ~ 104˚F (0˚C ~ 40˚C)
5% - 95%
Non-condensing
-4˚F - 158˚F (-20˚C ~ 70˚C)
4.23 × 4.48 × 2.32˝ (107.5 × 113.9 × 59 mm)
6M
1.3 lbs. (0.589 kg)
1.7 lbs. (0.770 kg)
A
B
C
