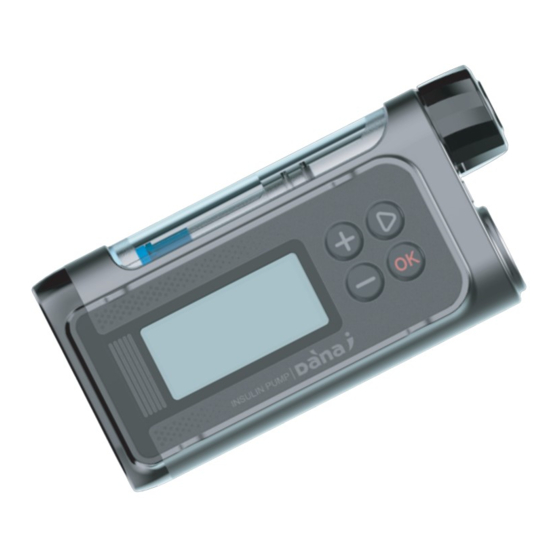

Sooil Diabecare DANA-i Quick Manual
Hide thumbs Also See for Diabecare DANA-i:

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the Diabecare DANA-i and is the answer not in the manual?

Questions and answers

Summary of Contents for Sooil Diabecare DANA-i

  • Page 2 All precautions and warnings within the IFU must be read and adhered to always. Read the entire IFU before commencing or using the Diabecare DANA-i Insulin Pump. Refer to the DANA-i Manual for advanced features instruction and more complex operation of the Diabecare DANA-i Insulin Pump.
  • Page 3 Inserting a battery and turning the pump on Open the battery compartment with coin. Place a new AAA alkaline battery into the hole with the positive(+) at top and insert the negative(-) into the pump Place the battery cap back onto the pump and tighten Firmly.
  • Page 4: The Pump Buttons

    The Pump Buttons This picture shows how the buttons are used to navigate through the menus. Press to increase insulin dosages, time and date. Press to decrease insulin dosages, time and date or to exit to previous menu. (cancel/stop button) Press to move to the next function on the LCD screen or to scroll to the right in menus.
  • Page 5 Pump initial screen This image shows what is displayed on the DANA-i home/initial screen. ① ② Date (MM/DD/YYYY) Current Time ③ ④ Current basal rate in units Percentage of basal rate. (100% is normal basal hour. The flashing delivery without a indicates the basal is active temporary rate active) ⑤...
  • Page 6 Structure of the Pump Menu...
  • Page 7 Loading an Insulin Reservoir Preparation - things to get ready before starting • Analog Insulin (room temperature) • DANA Reservoir (3ml) • Auto Setter • Linking Screw • DANA Infusion Set and Alcohol Swab (if required) • DANA Insulin Pump Procedure Remove the round cap at the bottom (back) end of the Insulin Reservoir and discard.
  • Page 8 Twist and pull to remove the needle from the reservoir and use the small white plastic stopper put aside earlier to seal the top of the reservoir. Insert the reservoir into the Auto Setter. (the reservoir will protrude from the top of the Auto Setter) Press the button on the Auto Setter to start measuring.
  • Page 9 Setting Basal Rates Select the ‘Basal’ option from main menu Select the ‘Edit Basal’ option from within the ‘Basal’ menu Confirm the current Basal profile. Adjust the start time and end time for the section (period) being changed or amended. (Note: TDB = Total Daily Basal) Next adjust the Basal rate (u/hr) for the period selected.
  • Page 10 Setting up and personalizing the DANA pump Select the ‘Option’ from main menu Select the ‘User Option’ from within the ‘Setting’menu Within the ‘User Option’ menu there are 14 options that can be personalized and configured. These options are specific to individual preferences –...
  • Page 11 DANA pump Setup – User Options menu Top RH button moves through this menu, changes individual option. Select Exit at bottom to save any/all changes. Time display 12 or 24 hour clock Button Scroll On or Off – enables button press and hold to change levels or dial up Carbohydrate –...
  • Page 12 DANA pump Setup – Personalizing CIR and CF CIR = Carbohydrate to Insulin Ratio CF = Correction Factor Select the ‘Bolus’ option from main menu Select the ‘Bolus Setting’ option from BolusOption menu Select the first option = ‘CIR/CF’ from setting menu.
  • Page 13 Quick Bolus - delivering a Food Bolus without a Correction (This bolus ignores any residual Active Insulin) From the main menu select ‘Bolus’ Select ‘Bolus’ to deliver a standard food bolus without including a correction dose and without reducing the dose for Active Insulin.
  • Page 14 Delivering a Food Bolus with a Correction Select the ‘Bolus’ option from the main menu. Select the ‘BG Bolus Calculator’ option from the Bolus menu. Input actual BG and grams of carbohydrate in meal. The next screen shows the pre- programmed Ideal BG, Carb to Insulin ratio and Correction factor.
  • Page 15 Temporary Rate Start and Stop Starting a new temporary rate Select TEMPORARY BASAL from the main menu. Select the duration of the intended temporary rate and the percentage of standard basal rate. Ex)150% is a 50% increase in standard rate. 80% is a 20% reduction in standard rate Select to start the TEMP.
  • Page 16 Flying with an Insulin Pump 1. Refill the pump before flight. a. Ensure there is no air in reservoir. b. Only load enough insulin for 1 or 2 days (preferably only about 1ml). 2. Upon aircraft take off – disconnect pump for ½ hour or until cruising altitude is reached.
  • Page 17 SOOIL Development Co., Ltd MT Promedt Consulting GmbH Altenhofstrasse 80, 62, Yonggu-daero 2325beon-gil, 66386 St. Ingbert Germany Giheung-gu, Yongin-si, Gyeonggi-do, 16922, Republic of Korea...
  • Page 18 IUQ-130-EN (rev.0_200622) SOOIL DEVELOPMENT CO., LTD...
