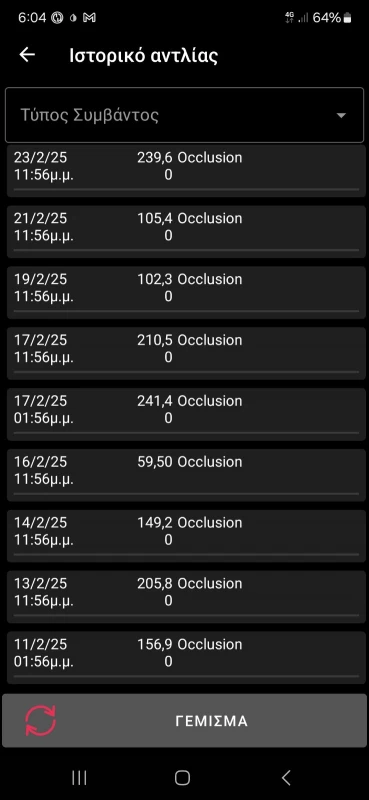

User image 67d3062abef4e
0

Subscribe to Our Youtube Channel

Related Manuals for Sooil Dana Diabecare RS

Summary of Contents for Sooil Dana Diabecare RS

  • Page 2 This page left blank intentionally...

  • Page 3: Table Of Contents

    Indications for Use ..........................6 Precautions ..............................7 Getting Started ............... 9 ➢ Components of DANA Diabecare RS System ................. 9 Getting to know the DANA Insulin Pump .................. 10 ➢ DANA Diabecare RS Insulin Pump .................... 10 ➢ Control Panel ............................10 Installing a battery ..........................
  • Page 4 Loading Insulin into the Pump ..........30 Preparation ............................... 30 Filling the Reservoir with Insulin ..................... 31 Adjust the length of link-screw with Easy Setter ..............33 ➢ Using DANA Easy Setter ........................ 34 Inserting the Reservoir into the Insulin Pump ................35 Connecting the Infusion Set to the Insulin Pump ..............
  • Page 5 Button Lock .............................. 62 Basal Profile ............................. 63 HISTORY : Displays all the Pump History ..................64 ➢ Review Menu ............................64 SHIPPING INFORMATION ........................67 Airplane mode ............................68 Extended Bolus ............................69 ➢ Start Extended Bolus (Quick Bolus) ..................69 ➢...
  • Page 6 ➢ Occlusion caused by external factor ..................86 Troubleshooting the Insulin Pump ....................87 Battery for DANA Insulin Pump ...................... 88 Maintenance of Pump & Accessory ........89 Caring for the Insulin Pump ......................89 ➢ Transport and Storage Condition ....................90 ➢...

  • Page 7: Introduction

    1. Introduction 1.1 DANA Diabecare RS Insulin Pump Introduction The DANA Diabecare RS Insulin Pump herein after will be referred to as ‘Insulin Pump’ throughout the manual. Warning The DANA Diabecare RS system is only to be used by patients who have received training from a certified diabetes educator and/or insulin pump trainer and by advice from a physician.

  • Page 8: Explanation Of Warning Symbols

    1.3 Indications for Use The DANA Diabecare RS Insulin Pump is intended for the subcutaneous delivery of insulin for the treatment of diabetes mellitus. The device is not intended for use with blood or blood products.

  • Page 9: Precautions

    Patients must not open the Pump housing or handle any internal components. The DANA Diabecare RS Insulin Pump is intended for use with a proprietary Infusion Set, reservoir and other accessories specified in this booklet. DO NOT use the Pump with any other infusion system or accessories.
  • Page 10 10. For any trouble with any of the system components, turn off the Insulin Pump by removing the battery and contact your healthcare professional or your Insulin Pump trainer. Remove the battery for long-term storage.

  • Page 11: Getting Started

    2. Getting Started To make proper use of Dana Diabecare RS Insulin pump, the accessories and other devices are necessarily needed. And Components of DANA Diabecare RS KIT makes you feel a lot more comfortable when using Dana Insulin Pump.

  • Page 12: Getting To Know The Dana Insulin Pump

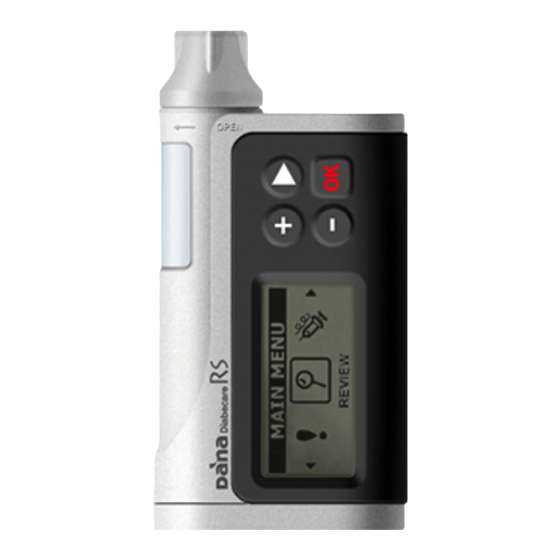

    2.1 Getting to know the DANA Insulin Pump ➢ DANA Diabecare RS Insulin Pump ① Reservoir Cap The reservoir and linking screw are inserted in this compartment. Turn the reservoir cap clockwise to open. ② Battery Cap The battery is inserted in this compartment.

  • Page 13: Installing A Battery

    2.2 Installing a battery Insulin Pump ① Open the battery cap by inserting the Battery key into the battery cap slot and turning counter clock-wise. ② Insert the battery with the positive end down into the Insulin Pump. ③ Replace the battery cap and press down whilst turning it clock-wise.

  • Page 14: Check The Dana Battery

    ➢ Check the DANA Battery: Caution Use of battery other than the 1/2AA size 3.6V battery manufactured ⚫ exclusively for the DANA Insulin pump will void the Insulin pump warranty. DO NOT attempt to change the battery while a bolus is in progress. ⚫...

  • Page 15: Display Screen

    2.3 Display Screen ➢ Initial Screen The initial screen is the first menu display. Enter by depressing any key from battery save mode Current date and time Time system option 12/24 available Month/day hh:mm am/pm Refer to 3.1 Setting the time and date Notice When the time is set to ‘12’, “AM/PM”...
  • Page 16 Button lock Appears on the screen when it is locked. Refer 6.3 Button Lock Insulin remaining volume Displays volume of insulin in the reservoir. Notice Low Reservoir indicator will flash when insulin volume remaining is low. Refer to chapter 7. Alarms and Error messages. Extended bolus status This icon (EXTENDED 1.20u/h) will be displayed only when extended bolus is active.

  • Page 17: Remote Control Mode

    ➢ Remote control mode Remote control mode When the smartphone with app installed is connected to the pump, the pump screen is displayed as shown in the figure. In this state, the button of the pump does not work. Notice You can disconnect by pressing the key for more than 5 seconds.

  • Page 18: Patient Education

    2.4 Patient Education Follow up education is recommended for all insulin pump user. When starting on insulin pump therapy, the patient should have daily contact with the pump trainer and/or medical professional. Visit with the Endocrinologist, Diabetologist or Advanced Practice Nurse within 3-7 days.

  • Page 19: Programming The Insulin Pump

    3. Programming the Insulin Pump ➢ Structure of DANA DIABECARE RS Menu: Warning Follow the training and advice of a pump specialist Healthcare professional and certified Insulin pump trainer whilst inputting the initial settings. Incorrect settings may cause serious harm.

  • Page 20: Setting The Time And Date

    3.1 Setting the time and date Setting the correct date and time is necessary for accurate basal insulin delivery and for retaining an accurate record of all insulin delivery. 1. Select OPTION in main menu and press 2. Select CLOCK SETTING, press button.

  • Page 21: Setting The Basal Rate

    3.2 Setting the Basal Rate Basal settings must be programed before using the insulin pump. Basal insulin is required to maintain an ideal glucose level while fasting. Basal insulin infusion rates are specific to individual patients. There are 24 hourly rates each day, these may increase or decrease to match personal insulin resistance and other factors.

  • Page 22: Description Of Basal Graph

    ➢ Description of Basal Graph: ① Basal rate bar graph per hour The graph consists of 24 bars, and each bar represents each hourly basal rate. In the graph, this bar starts with 00 and display until 24 (12:00AM). When the specific time period is selected, the color of that bar changes to black.

  • Page 23: How To Edit The Basal Rate

    ➢ How to edit the Basal Rate: 1. Within MAIN MENU scroll through and select BASAL with 2. Select EDIT BASAL and press 3. The current Basal Profile is displayed, confirm the selection with 4. The edit basal screen is displayed. The default time is 00-01.
  • Page 24 6. Use the to adjust the End time. press to move to the Basal rate. 7. Use the buttons to adjust the Basal rate for the selected time. Press to save the basal rate or press button to move to the start time(step.5). 8.

  • Page 25: View Basal Rate

    3.3 View Basal Rate The view basal rate is used to view the current profile's time-specific settings. 1. Select VIEW BASAL RATE in BASAL's sub menu and press 2. The current Basal Profile letter is displayed, confirm the selection with 3.

  • Page 26: Setting User Options

    3.4 Setting User Options The user can change the settings related to pump usage through the User option. 1. Select OPTION in main menu and press 2. Select USER OPTION in OPTION’s sub menu and press 3. Use the buttons to set the user option. to move to next item.

  • Page 27: User Options

    ➢ User Options 1. TIME DISPLAY Adjust the time display as 12hour or 24hour. 2. BUTTON SCROLL When ON holding the buttons adjusts the value quickly. 3. BEEP Key Beep ON/OFF enables an audio tone when buttons are depressed. 4. ALARM Change between SOUND, VIBRATION or BOTH for alerts and pump alarms.
  • Page 28 8. GLUCOSE UNIT Adjust the unit of measure for Glucose results between ML (mmol/L) or MG (mg/dL). Warning Using wrong unit of measure could lead to Glucose results being misinterpret. 9. SHUTDOWN This is a safety setting, where if no buttons are depressed after the time set (0 –...
  • Page 29 ➢ User Options 12. CANNULA VOLUME: Soft needle cannula has a pre-assigned volume that needs to be filled with insulin before delivery. Set the pre-set the required volume here for the specific cannula used. (Refer to 10.3 Prime Volume of infusion sets) 13.

  • Page 30: More Information Screen

    3.5 More Information Screen The More Information screen provides a quick review of: Active Insulin from a previous bolus. ⚫ Extended bolus information (if active). ⚫ The most recent bolus delivery information including how many minutes ⚫ ago the bolus was delivery and the volume of the bolus. 1.
  • Page 31 This page left blank intentionally...

  • Page 32: Loading Insulin Into The Pump

    4. Loading Insulin into the Pump 4.1 Preparation Loading and refilling the Insulin Pump with insulin is a technical process which involves medication (insulin) and sterile components. It is recommended that: Retrieve the insulin vial from the refrigerator and let it warm up to room ⚫...

  • Page 33: Filling The Reservoir With Insulin

    Filling the Reservoir with Insulin 1. Remove the round cap at the backend of the reservoir plunger and discard. A small white reservoir cap needs to be removed from the plunger–keep this cap for later use. Pull back on the plunger to the line marked with the 3 ml. 2.
  • Page 34 6. Place the clear needle protective cover back onto the needle. Gently tap the reservoir with your finger in order to make the air bubbles rise to the top of the reservoir. And push the plunger up gently to remove the air bubbles from the reservoir.

  • Page 35: Adjust The Length Of Link-Screw With Easy Setter

    4.3 Adjust the length of link-screw with Easy Setter The DANA Easy Setter is intended for adjusting the length of linking screw ready for the reservoir to be loaded into the pump DANA Easy Setter Insert a battery into Easy Setter Open the battery compartment.

  • Page 36: Using Dana Easy Setter

    ➢ Using DANA Easy Setter Whilst refilling and priming the Insulin Pump, you can also set the linking screw using the DANA Easy Setter. 1. Loosen the linking screw until the shaft cap part is covered by the head part (blue part). This is important to adjust the length accurately.

  • Page 37: Inserting The Reservoir Into The Insulin Pump

    4.4 Inserting the Reservoir into the Insulin Pump 1. Insert the reservoir with linking screw into the Insulin Pump as shown. TIP! When inserting the reservoir, rotate the reservoir 90 degrees until the notch on the side of the reservoir slide into place within the pump.

  • Page 38: Connecting The Infusion Set To The Insulin Pump

    4.5 Connecting the Infusion Set to the Insulin Pump Attach the Infusion Set Tube counter clockwise into the reservoir compartment until it is firmly in place. TIP! The DANA insulin pump uses a proprietary LH lure connection between the insulin pump and the Infusion Set tubing.

  • Page 39: Refill

    4.6 Refill With the refill input, pump get to know exactly what the insulin amount is. 1. Move to REFILL, press 2. Select REFILL menu, press 3. You can adjust the insulin amount directly using buttons. 4. To confirm the insulin amount press button.

  • Page 40: Prime The Infusion Set Tubing

    4.7 Prime the Infusion Set Tubing Prime every new Infusion set tube to displace air from within the tubing. Visually confirm that all bubbles are primed from the Infusion Set tubing. Upon completion of refill process confirm the basal is active and correct. Warning It is important to properly prime the Tube and ensure all air is removed from the system.

  • Page 41: Prime Procedure

    ➢ PRIME procedure: 1. From the main menu select REFILL and press 2. Select PRIME from the REFILL's sub menu and press 3. From the PRIME START menu press to start. Warning It is very dangerous to start a Prime whilst the Infusion set is connected to the body.
  • Page 42 6. The PRIMING display will show the volume of insulin delivered. Notice During PRIME the pump may BEEP or VIBRATE after every unit of Insulin is primed. When droplets of Insulin appear at the end of the TUBE press to PAUSE. Check the entire length of TUBE for any bubbles.

  • Page 43: Prime The Cannula

    4.8 Prime the Cannula When using an infusion set with a soft needle/cannula, the hollow area within the cannula requires PRIME CANNULA after completing tube prime. 1. After inserting the cannula into the body (following the cannula instructions) connect the infusion set tube to the infusion set after priming all bubbles out from the tube.
  • Page 44 5. Press to confirm. 6. The PRIME CANNULA window displays the delivery. Notice Cannula fill volume is set in the USER OPTION menu. Cannula fill can be set between 0.1 – 0.9 units. Read cannula instructions to determine individual requirements for filling.

  • Page 45: Connection Of Pump & Reservoir

    ➢ Connection of Pump & Reservoir The following is structure of pump and reservoir through linking screw. Connection Success Connection Fail If after a new refill, insulin pump If the linking screw is too short, it primes the tubing properly and won’t engage with the pump insulin droplets appear at the motor and insulin delivery fails.

  • Page 46: Inserting Infusion Set

    4.9 Inserting Infusion Set Refer to instructions for the specific Infusion Set you (the patient) are using. Each Infusion Set/Cannula is made of different material and some have auto insertion tools to help with the Cannula insertion. It is also recommended that cannula/infusion sites are inserted following a warm shower to ensure the area is clean and assist with adhesion.

  • Page 47: Recommending Insertion Site Location

    ➢ Recommending insertion site location It is recommended to rotate the location of your Infusion Set sites to minimize skin damage and enable longer healing times. Consult your healthcare professional about the infusion site rotation. It is recommended that good rotation between 4 separate areas on the body –...
  • Page 48 This page left blank intentionally...

  • Page 49: Delivering A Bolus

    5. Delivering a Bolus The DANA Insulin Pump can deliver a bolus of insulin using different user input parameters to calculate the bolus volume. ➢ Bolus calculation parameter Step Bolus (Quick): This standard bolus option can be calculated by either. ⚫...

  • Page 50: Three Type Of Bolus Delivery

    ➢ Three type of Bolus Delivery After selecting one of the options on previous page to assist with calculating the required dosage - the DANA Insulin Pump can deliver three types of bolus: After a suggested bolus amount is shown press to select the bolus type: Step Bolus (Refer to chapter 5.1) ⚫...

  • Page 51: Bolus (Quick Bolus)

    5.1 Bolus (Quick Bolus) This bolus can be used to cover the carbohydrate in a meal or snack. ➢ How to start the (Quick) bolus delivery: 1. Select BOLUS from the BOLUS Sub menu press 2. Adjust the grams of carbohydrate with Move down the menu using to adjust the CIR.

  • Page 52: Stop Delivery During Bolus

    5. The INSULIN INJECT screen displays during the delivery and you will hear the motor run as the bolus is being delivered. Notice You will hear the Insulin Pump beep or vibrate for every 1.0 unit while a bolus is being delivered. 6.

  • Page 53: Bg Bolus Calculator (Smart Bolus)

    5.2 BG Bolus Calculator (Smart Bolus) This type of BOLUS will calculate an estimate of insulin required for a correction bolus and/or food bolus and adjusts the suggested dose to compensate for residual Active Insulin from previous Bolus delivery. 1. From MAIN MENU select BG BOLUS CALCULATOR with button.
  • Page 54 3. The BOLUS review displays the suggested Bolus dose. 4. Start the BOLUS with button. Within the BOLUS review display the following values are displayed is the Bolus dose to adjust Glucose = (BG-IDEAL)/CF is the Bolus dose to cover Carbohydrate in the meal = CARBO/CIR is the residual Active insulin calculated from previous boluses.

  • Page 55: Bolus Setting

    5.3 Bolus Setting The Bolus Setting menu enables personalization of all Bolus features within the insulin pump. 1. Select BOLUS SETTING from within the BOLUS MENU press 2. The bolus setting menu is shown 3. Press buttons so adjust the BOLUS SETTING.

  • Page 56: Bolus Setting

    ➢ Bolus Setting 1. CIR/CF SETTING Used in the Bolus Calculator and the Bolus (Quick) menu (when calculation is selected) to accurately calculate the appropriate bolus to deliver. Press buttons so adjust the CIR and CF rates. The button will move through the menu to next setting option.
  • Page 57 ➢ Bolus Setting 2. EXTENDED BOLUS Adjust between extended and dual bolus ON/FF. 3. BOLUS CALCULATOR Setting changes CARB, UNIT or BOTH CARB = Bolus requests grams entered UNIT = Bolus by adjusting units entered BOTH = every bolus asks which option? 4.

  • Page 58: Pre-Set Bolus

    ➢ Pre-set Bolus The value of pre-set bolus is a default value which will first appear in the bolus menu. Set the size for breakfast, lunch and dinner bolus’s as an option within Bolus setting menu. Pre-set meal boluses are set following by these time periods.
  • Page 59 This page left blank intentionally...

  • Page 60: Advanced Features Within Pump

    6. Advanced features within Pump 6.1 Temporary Basal Rates The temporary basal rate feature is useful to manage blood glucose levels during unexpected and unusual short-term activities (sport or exercise) or conditions of illness or stress. Using the temporary basal rate enables changes to be temporary and to automatically revert to usual rates upon completion.

  • Page 61: Review Temporary Basal Rate Whilst In Operation

    ➢ Review Temporary Basal Rate Whilst in Operation 1. From the Home Screen a flashing indicates that a Temporary Rate is active. 2. Select TEMPORARY BASAL from the MAIN MENU. 3. TEMP STATE is displayed. ① Time Temporary rate has been running ②...

  • Page 62: Stopping A Temporary Basal Rate

    ➢ Stopping a Temporary Basal Rate 1. Select TEMPORARY BASAL from the main menu. 2. The TEMP. STATE screen is displayed, press to STOP the TEMPORARY RATE. 3. Confirm the STOP TEMP. RATE with Caution Consult Healthcare Professional, Nurse or Doctor for advice about Temporary Basal rates prior to using them.

  • Page 63: Suspend

    6.2 Suspend To stop the Insulin Pump with the suspend function. Suspend stops all insulin delivery including basal and bolus. The Suspend must be off to resume basal delivery or to deliver a bolus. 1. Select SUSPEND from the MAIN MENU. 2.

  • Page 64: Button Lock

    6.3 Button Lock Button lock prevents accidental Insulin Pump keypad presses. It is particularly useful for: Pediatric patients who are not able to program their own pump. ⚫ Patients whilst sleeping. ⚫ 1. Select BUTTON LOCK from the MAIN MENU. 2.

  • Page 65: Basal Profile

    6.4 Basal Profile The adjusted basal rates can be saved as 4 different profiles. These are useful for sport days, sick days or specific events that may affect your insulin sensitivity. 1. Select BASAL PROFILE from the BASAL sub menu. 2.

  • Page 66: History : Displays All The Pump History

    6.5 HISTORY : Displays all the Pump History History and pump memory can be viewed either on the Insulin Pump 1. Select REVIEW from the MAIN MENU then select HISTORY from the REVIEW sub menu. 2. The a n d Use scroll up/down.
  • Page 67 Review Menu ➢ 2. BOLUS AVERAGE Daily total average bolus for 3, 7 14 and 28 days displayed in units of insulin. 3. DAILY TOTAL HISTORY History of last 60 day’s delivery totals Displayed as date with Basal / Basal +Bolus 4.
  • Page 68 9. SUSPEND HISTORY History of Suspend Date, Time of when Temporary rate is started (ON) or stopped (OFF). 10. TEMP. BASAL History of Temporary Basal rates Date, Time of when Temporary rate is started (ON) or stopped (OFF). 11. BASAL HISTORY Review of hourly basal delivery.

  • Page 69: Shipping Information

    6.6 SHIPPING INFORMATION This displays the country that the pump was originally shipped to after manufacture. Also displayed is the date of manufacture, pump serial number and the software version installed. From MAIN MENU select REVIEW screen then open SHIPPING INFORMATION from the sub menu. Display includes: Pump serial number ⚫...

  • Page 70: Airplane Mode

    6.7 Airplane mode DANA Diabecare RS is designed for remote control in conjunction with smartphone app. However, since it always transmits Bluetooth signal, it is necessary to switch to airplane mode when it is necessary to turn off the electronic signals such as when boarding on an airplane.

  • Page 71: Extended Bolus

    6.8 Extended Bolus Extended or Dual bolus can be used for: Meals with slow absorption (high fat) i.e. pizza or lasagne ⚫ Insulin Pump users who have other conditions such as gastroparesis which ⚫ can delay/slow the absorption of carbohydrate. Refer to your Healthcare Professional about this condition and treatment.

  • Page 72: Review Extended Bolus

    ➢ Review Extended Bolus 1. Extended state shown on the initial screen. 2. From MAIN MENU select BOLUS. From BOLUS sub menu select Bolus icon. The three bolus types are displayed, select Extended press 3. The EXT. BOLUS displays the current active Extended Bolus.

  • Page 73: Dual Pattern Bolus

    6.9 Dual Pattern Bolus Dual Pattern bolus delivers a combination of a Step Bolus followed by an Extended Bolus. A Dual Pattern bolus is useful for meals with a combination of fast and slow absorbed carbohydrate. ➢ Starting a Dual Pattern Bolus 2.

  • Page 74: Stopping A Dual Pattern Bolus

    ➢ Stopping a Dual Pattern Bolus To stop the extended part of a Dual Bolus from the EXT Bolus status menu. 1. Dual state shown on the initial screen. 2. From EXT BOLUS status screen press 3. Confirm the BOLUS STOP with Notice If Step Bolus is selected while an Extended Bolus or Dual Pattern Bolus is being delivered an “EXT.

  • Page 75: Alarms And Error Messages

    7. Alarms and Error Messages This chapter describes insulin pump alarms and error messages and how to solve them. DANA Diabecare RS alarms and error messages are as follows. Type Alarm and Error Message LOW BATTERY LOW RESERVOIR WARNING EMPTY RESERVOIR...

  • Page 76: Warning Message

    ➢ WARNING Message LOW BATTERY The low battery screen will appear when the battery level is not sufficient to operate the pump and deliver insulin. A continuous alarm will be activated with both sound and vibration. How to solve: Remove the battery from the Insulin Pump and replace with a new battery. Low Battery warning step Step.1 Recommended to change: When battery energy is below 5%, an...
  • Page 77 ➢ WARNING Message LOW RESERVOIR When the reservoir volume is below the 'Low Reservoir' warning configured in the user options, this screen will be shown with an alarm. How to solve: The pump will revert to the Initial Display and the reservoir icon will blink/flash. After checking the actual remaining insulin volume of the reservoir in your pump, replace the reservoir and refill the pump if necessary.
  • Page 78 SHUTDOWN The Pump will automatically give an alarm sound if no buttons are pressed after the pre-set shutdown period is exceeded. If no acknowledgment of the alarm is received (button press) following the audible alarm - the pump will suspend all insulin delivery. How to solve: Silence by acknowledging the alert and pressing any of the buttons.

  • Page 79: Error Message

    ➢ ERROR Message CHECK ERROR This alarm occurs if the Insulin Pump suspects an internal signal defect. SYSTEM ERROR This alarm occurs when the Insulin Pump detects any unusual movement of the controller. How to solve: If/when either of these alarms, removal of the battery will silence the alert. Reinsert the battery after 10 seconds and the pump will perform a full self- check procedure.
  • Page 80 ➢ ALARM Message MISSED BOLUS If you missed a bolus during the time period you had set, the Insulin Pump will give you an alarm together with an alarm message. Refer to 5.3 Bolus Setting-MISSED BOLUS How to solve: Silence the alarm by pressing any button. Follow the prompt by determining if a food bolus was missed and administer if necessary.
  • Page 81 ➢ ALARM Message DELIVERY LESS THAN BASAL SET RATE If the basal is skipped and delivered less than 80% of the basal setting, this alarm will be generated. How to solve: Silence the alarm by pressing any button. If you operate the pump at basal delivery interval, the basal may occasionally skip.
  • Page 82 CONFIRM PAIRING Displayed when the pump receives a pairing signal. How to solve: If you do not want pairing, press N O . Refer to instruction for use of application. NO DELIVERY The pump cannot deliver insulin for one or more of different reasons.

  • Page 83: Troubleshooting

    8. Troubleshooting 8.1 Hypoglycemia (low blood sugar) ➢ What is hypoglycemia (low blood sugar)? Hypoglycemia occurs when the blood sugar level is low. Anyone using insulin should be familiar with the symptoms and treatment of hypoglycemia. The symptoms are: Headache and dizziness ⚫...

  • Page 84: Hypoglycemia Troubleshooting

    ➢ Hypoglycemia Troubleshooting POSSIBLE CAUSE SUGGESTED RESPONSE Consult with your healthcare professional to make Increased physical adjustments for increased physical activity. You may activity choose to use or modify temporary basal rates or decrease meal boluses prior to activity. Consult with your healthcare professional to adjust basal Eating less rates or meal boluses to more accurately reflect your current intake.

  • Page 85: Hyperglycemia (High Blood Sugar)

    8.2 Hyperglycemia (high blood sugar) ➢ What is hyperglycemia (high blood sugar)? Hyperglycemia (high blood sugar) can occur due to any interruption in the delivery of insulin. It is important to know that if there is no insulin delivery you may experience an increase in your blood sugar which, if undetected or untreated, may cause DKA (diabetic ketoacidosis).

  • Page 86: Troubleshooting For Hyperglycemia

    ➢ Troubleshooting for Hyperglycemia POSSIBLE CAUSE SUGGESTED RESPONSE Visually check display screen for remaining insulin and Empty reservoir also visually check reservoir in Pump. Replace reservoir if required. Examine infusion site to make sure that there is no Insulin leakage at leakage.

  • Page 87: Occlusion Alarm

    8.3 Occlusion Alarm The causes of occlusion alarms are very variety. The tube may be blocked by uncertain materials or may be caused by other external factors. The various causes of occlusion are described as follows. ➢ Real Occlusion (Usually within the Cannula or tube) OCCLUSION CAUSES WHAT TO DO Use of the reservoir or Infusion Set for...

  • Page 88: Occlusion Caused By External Factor

    ➢ Occlusion caused by external factor OCCLUSION CAUSES WHAT TO DO Wash linking screw in warm water Linking screw has previously been with mild detergent, thoroughly dry affected by insulin leakage. (seldom) then reinstall the linking screw into the pump. Adjust and fully loosen the linking The end of insulin delivery.

  • Page 89: Troubleshooting The Insulin Pump

    8.4 Troubleshooting the Insulin Pump PROBLEM CORRECTIVE ACTION An abnormal LCD can occur when the battery charge is low. Check the remaining battery charge after you administer a bolus dose. The life span of the battery is between 3-6 weeks, but varies among users.

  • Page 90: Battery For Dana Insulin Pump

    8.5 Battery for DANA Insulin Pump DANA Insulin Pump Battery is a Lithium ½ AA size. Caution Do not store or transport the unpackaged battery with any conductor such as coin, metal key or metal clip. The Battery has a high-risk of starting a fire if the battery poles are shorted.

  • Page 91: Maintenance Of Pump & Accessory

    9. Maintenance of Pump & Accessory 9.1 Caring for the Insulin Pump Use a soft cloth or tissue to wipe the exterior of the Insulin Pump. If necessary, a small amount of mild alcohol on a soft cloth or tissue may be used. Organic solvents such as benzene, acetone and household industrial cleaners can cause irreparable damage to the Insulin Pump.

  • Page 92: Transport And Storage Condition

    ➢ Transport and Storage Condition For safe transport and storage of the DANA Diabecare RS Insulin Pump kit avoid the following conditions: Storage Temperatures below -20°C (-4°F) or above 50°C (122°F). ⚫ Operation Temperatures below 1°C (34°F) or above 40°C (104°F).
  • Page 93 This page left blank intentionally...

  • Page 94: Specification

    10. Specification 10.1 Insulin Pump SPEC INSULIN PUMP Size 3.6× 1.8× 0.8inch (91× 45.5× 20mm) **including reservoir cap Net Weight 53g (without battery), 62g (including battery) Insulin Reservoir 3mL(300 Units) insulin compatible reservoir Meal Bolus Setting 0 - 80u Basal Rate Setting 0, 0.04 ~ 16.0 u/h Basal Profile 24 Settings...

  • Page 95: Infusion Sets

    10.2 Infusion Sets Easy Soft- Soft- Easy Super Line Release Ⅱ Release-0 Release-ST Release Needle gauge Stainless Stainless Stainless Needle type Teflon Teflon Steel Steel Steel Insertion 90° 15-30° 0°, 90° 90° 90° angle Disconnect Notice Each type of Infusion Set is unique. Healthcare Professional and your Insulin Pump Trainer will help provide assistance with the most appropriate Infusion Set to use.

  • Page 96: Prime Volume Of Infusion Sets

    10.3 Prime Volume of Infusion Sets New unopened Infusion Sets are sterile and the tubing is filled with air/empty. Once connected to the Insulin Pump it is necessary to prime the tubing (fill it with insulin and remove the air) before the tube is connected to the Cannula or patient. The following shows the estimated volume of insulin required to fill tubing for each of the Infusion Sets below: Notice...

  • Page 97: Delivery Accuracy

    Trumpet Curve for Delivery Accuracy (-1.94 %) at the basal setting of 8u/h (the intermediate rate) 10.5 Classification and Compliance with Standards The DANA Diabecare RS is classified as an internal powered equipment BF ⚫ type under the standard of IEC 60601-1 (Medical Electrical Equipment, General Requirements for Safety).

  • Page 98: Declaration Of Emc Compatibility

    10.6 Declaration of EMC compatibility The DANA Diabecare RS insulin pump is intended for use in the electromagnetic environment specified below. The customer or the user of the DANA Diabecare RS insulin pump should assure that it is used in such an environment.
  • Page 99 Electromagnetic immunity – for all ME equipment and ME systems Electromagnetic Emissions test IEC 60601 test level Compliance environment The DANA Diabecare RS should not be ±8㎸ Electrostatic affected by ±8㎸ contact discharge(ESD) contact electrostatic discharge ±15㎸ air IEC 61000-4-2 that might occur ±15㎸...
  • Page 100 Portable and mobile RF communications equipment should be used no closer to any part of the DANA Diabecare RS insulin pump, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.
  • Page 101 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the DANA Diabecare RS insulin pump is used exceeds the applicable RF compliance level above, the DANA Diabecare RS insulin pump should be observed to verify normal operation.
  • Page 102 Recommended separation distance between portable and mobile RF communications equipment and the DANA Diabecare RS The DANA Diabecare RS insulin pump is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the DANA Diabecare RS insulin pump can help prevent...

  • Page 103: Explanation Of Universal Symbols

    10.7 Explanation of Universal Symbols On the packaging and on the type plate of DANA Diabecare RS System you may encounter the following symbols shown here with their meanings: Follow instructions for use Consult instructions for use Caution. Refer to safety-related notes in the manual...
  • Page 104 Sterilized with ethylene oxide Adhesive plaster Tubing length (1100mm, 700mm, 550mm / 43inch, 27inch, 22inch) International Protection Code. IP28 Dustproof degree: 2 / Waterproof degree:8 European Conformity for R&TTE Direct current Disposal (WEEE marking) Non-Pyrogenicity Keep dry Storage temperature range Do not use if package is damaged Storage humidity range Atmospheric pressure limitation...

  • Page 105: Index

    11. Index Accessories Easy Setter Active Insulin Edit Basal Airplane Mode Error message Alarm and Error Extended Bolus Basal Profile Glucose Unit Change Basal Setting Battery Installing a battery Battery for Insulin pump History Bolus Hyperglycemia Step Bolus(Quick) Hypoglycemia BG Bolus Calculator(Smart) Bolus Setting Button lock Infusion Sets...
  • Page 106 Occlusion Warning 78, 87 User option Option View Basal Rate Password Volume of infusion set Preset Bolus Prime the cannula Prime the infusion sets Warning message Refill procedure Remote Control mode Reservoir (Filling with insulin) Review Shipping Information Specification Structure of Menu Suspend Symbol Temporary basal...

  • Page 107: Warranty

    • Modifications or changes to the System by the user or any other person after the date of manufacture. • A force majeure or other event beyond the control of SOOIL or acts of negligence, misuse, or mishandling of the System by the user or any other person including but not limited to physical abuse of the product such as dropping or otherwise damaging the DANA Diabecare System.
  • Page 109 This page left blank intentionally...
  • Page 110 IFU-120-EN (rev.1_180109) SOOIL DEVELOPMENT Co.,LTD...
