BANDELIN SONOREX TECHNIK RM 16.2 UH User Instructions

High-power ultrasonic baths and rinsing baths
Hide thumbs Also See for SONOREX TECHNIK RM 16.2 UH:
Table of Contents

Advertisement

Quick Links

Download this manual
User instructions
3 4 RM
High-performance ultrasonic and rinsing baths
Valid for:
RM 16.2 UH, RM 16.2 U, RM 16.2 H, RM 16.2
RM 40.2 UH, RM 40.2 U, RM 40.2 H, RM 40.2
RM 75.2 UH, RM 75.2 U, RM 75.2 H, RM 75.2
23726a GB/2020-07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SONOREX TECHNIK RM 16.2 UH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BANDELIN SONOREX TECHNIK RM 16.2 UH

Summary of Contents for BANDELIN SONOREX TECHNIK RM 16.2 UH

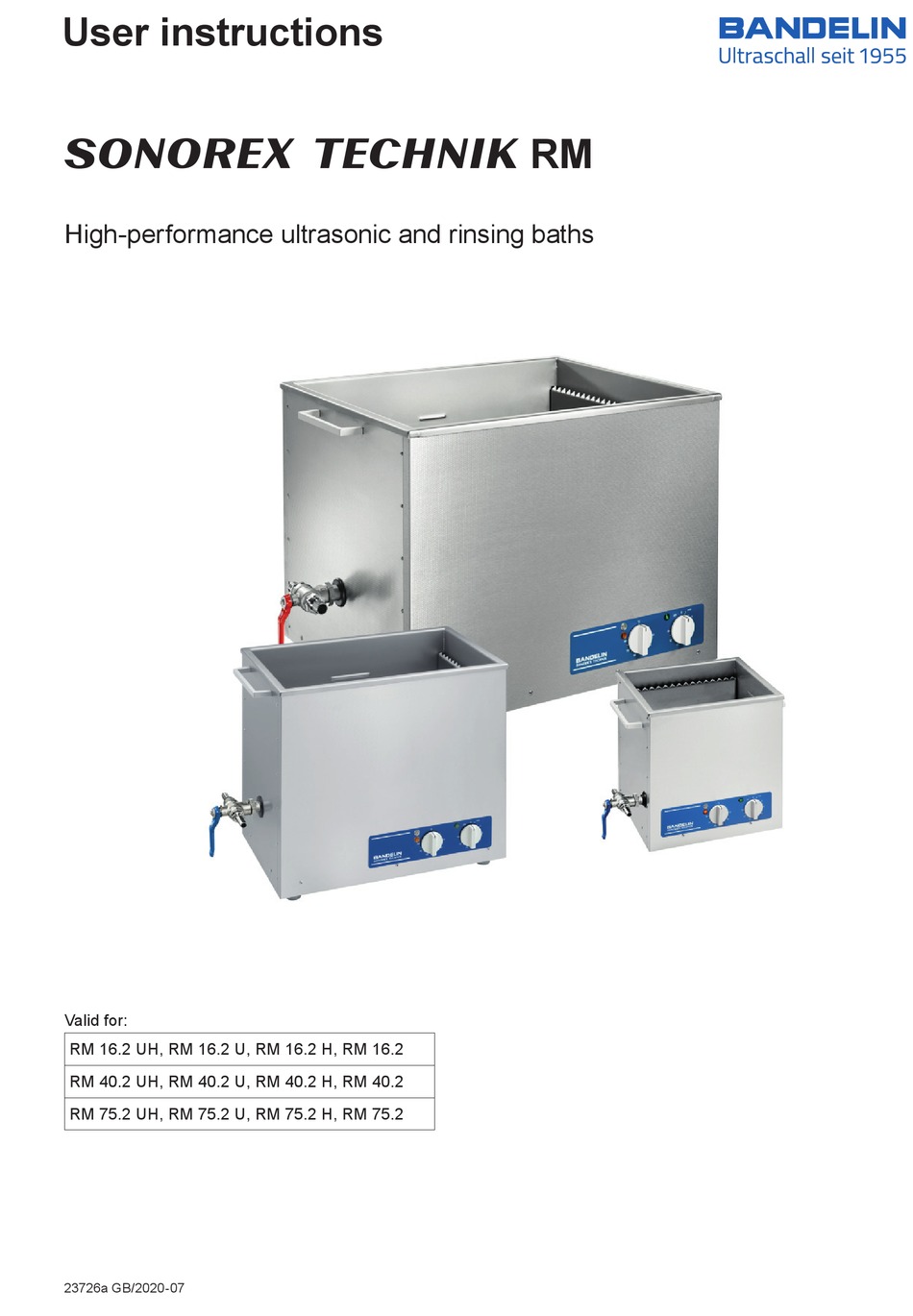

  • Page 1 User instructions 3 4 RM High-performance ultrasonic and rinsing baths Valid for: RM 16.2 UH, RM 16.2 U, RM 16.2 H, RM 16.2 RM 40.2 UH, RM 40.2 U, RM 40.2 H, RM 40.2 RM 75.2 UH, RM 75.2 U, RM 75.2 H, RM 75.2 23726a GB/2020-07...
  • Page 2 Copyright & limit of liability This document may not be reproduced, either in full or in extracts, without prior approval of BANDELIN electronic GmbH & Co. KG, hereinafter referred to as BANDELIN. The German original is the binding version of this document. Any diff erences in the translation are not binding and have no legal eff...
  • Page 3 Operating sequence Identifi es instructions that are to be followed in the described  instructions sequence. 23726a GB/2020-07 3 / 34 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...

  • Page 4: Table Of Contents

    Instructions for use .....................16 General use ........................18 Further information .....................20 4.3.1 Degassing ........................20 4.3.2 Disposal of sonication fl uids ..................20 4 / 34 23726a GB/2020-07 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
  • Page 5 Key words - not applicable - ....................31 Informative appendices Example of a possible cleaning sequence using peripheral devices 23726a GB/2020-07 5 / 34 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...

  • Page 6: Product Description

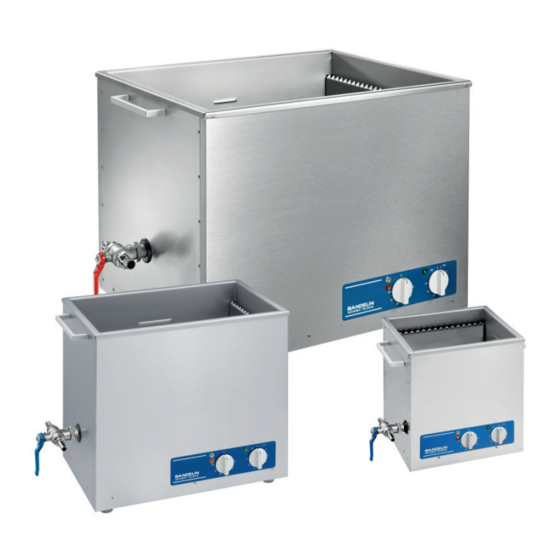

    • Depending on the model, with time switch (type "U") for 1 - 15 min or continuous operation (7) and/or with heating (type "H") (8). SONOREX TECHNIK RM 40.2 UH 6 / 34 23726a GB/2020-07 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
