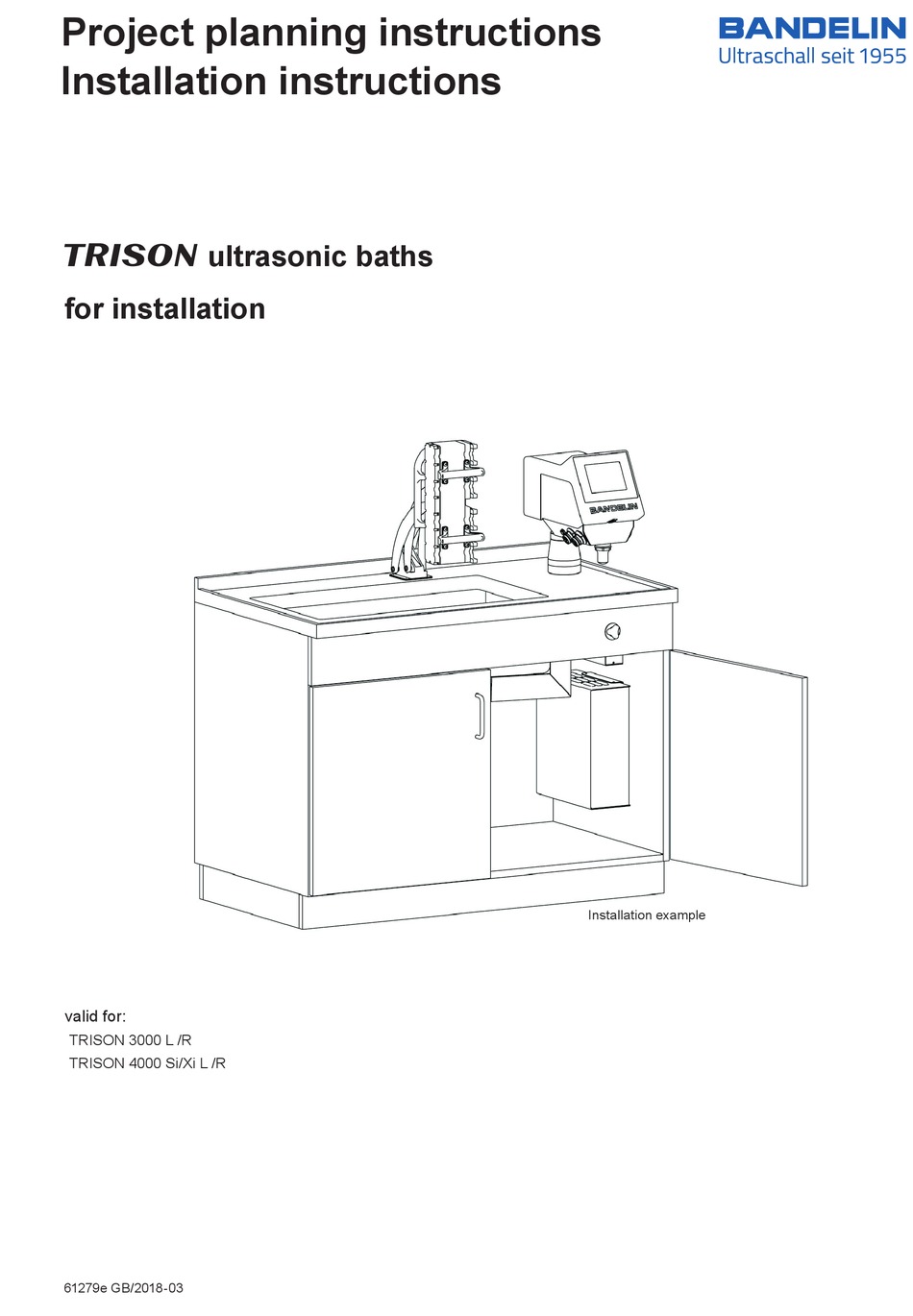

- Page 1 Project planning instructions Installation instructions T ultrasonic baths for installation Installation example valid for: TRISON 3000 L /R TRISON 4000 Si/Xi L /R 61279e GB/2018-03...
- Page 2 Copyright & limit of liability This document may not be reproduced, either in full or in extracts, without prior approval of BANDELIN electronic GmbH & Co. KG, hereinafter referred to as BANDELIN electronic. The German-language original is the binding version of this document. Any differences in the translation are not binding and have no legal effect.
- Page 3 For health reasons, remaining for long periods of time in the protection vicinity of the device without hearing protection is prohibited. 61279e GB/2018-03 3 / 25 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 4: Table Of Contents
Suspending the mains supply switch .................15 Pivot mounted arm TRISON Lift (only at TRISON 4000) ...........16 Connection of the ultrasonic bath ................18 4 / 25 61279e GB/2018-03 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... - Page 5 TE 3000 Oscillating Tank Enc. 2 Complete assembly (example: Trison 4000 Xi R) Enc. 3 Dimensioning - Hole pattern 61279e GB/2018-03 5 / 25 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 6: Warning And Safety Precautions
The fi lling temperature may not be higher than 50°C. • All live conductors must be protected from liquids – chapter 8. 6 / 25 61279e GB/2018-03 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 7: Scope Of Delivery
Fastening materials are not included in the scope of supply. The following mounting material is included: 2 threaded rods M6 × 80 mm 61279e GB/2018-03 7 / 25 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 8: Project Planning Instructions
• Outlet for emptying the ultrasonic oscillating tank • Ethernet interface for documentation/ record-keeping (recommended). Alternatively, a USB connector is available on the control unit. 8 / 25 61279e GB/2018-03 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... - Page 9 2 x Ø 60 mm re- quired for 2 safety plugs Mains supply switch HF generator for installation or suspension 61279e GB/2018-03 9 / 25 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 10: Mounting Of The Tank
CAUTION – note the tank's corner radius "R"! Overfl ow edge (exterior) Interior dimensions / tank External dimensions Type TE 3000 All measurements given in mm 10 / 25 61279e GB/2018-03 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 11: Fixing The Sealing Tape
Note: Always set down the ultrasonic oscillating tank carefully on the oscillator cover. 61279e GB/2018-03 11 / 25 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 12: Fixing The Tank
- no liquid can access the transducers or the bottom-mount cabinet can cause a short circuit in the HF generator - there is no undesired sound propagation outside of the tank. 12 / 25 61279e GB/2018-03 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 13: Mounting The Drain Set
• The unit can be swivelled on its base by up to 180° in increments of 15° (12 stops) 61279e GB/2018-03 13 / 25 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... - Page 14 Ø 7 mm (in base M6 thread / length max. 8 mm) 14 / 25 61279e GB/2018-03 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 15: Mains Supply Switch
1. Drill holes for the screws (e.g. M5) leaving 80 mm of distance between them and ensuring that there is suffi cient height. 2. Suspend the mains supply switch. 61279e GB/2018-03 15 / 25 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 16: Pivot Mounted Arm Trison Lift (Only At Trison 4000)
Screws on site 4× M5×L L = Length depends on the laminate board and the table top (S-2 ... 5) 16 / 25 61279e GB/2018-03 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... - Page 17 TRISON Twist 4000 Xi R TRISON Twist 4000 Si R Connector Support for bolts in the ultrasonic oscillating tank 61279e GB/2018-03 17 / 25 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 18: Connection Of The Ultrasonic Bath
For this, cut off the existing plug of the network cable and fasten the supplied connector according to the enclosed instructions. 18 / 25 61279e GB/2018-03 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 19: Functional Check Following Mounting
“Details on use as a medical device” and “Information on EMC” can be found in the Instructions for Use. 61279e GB/2018-03 19 / 25 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 20: Ultrasonic Oscillating Tank Te 3000
15° from its against solid foreign bodies with a vertical axis diameter of 12 mm or larger 20 / 25 61279e GB/2018-03 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 21: Control Unit Trison Base
