The user can set up the password and user name after splitting
the ARCFlash into two disks to protect the files in the secure
area.

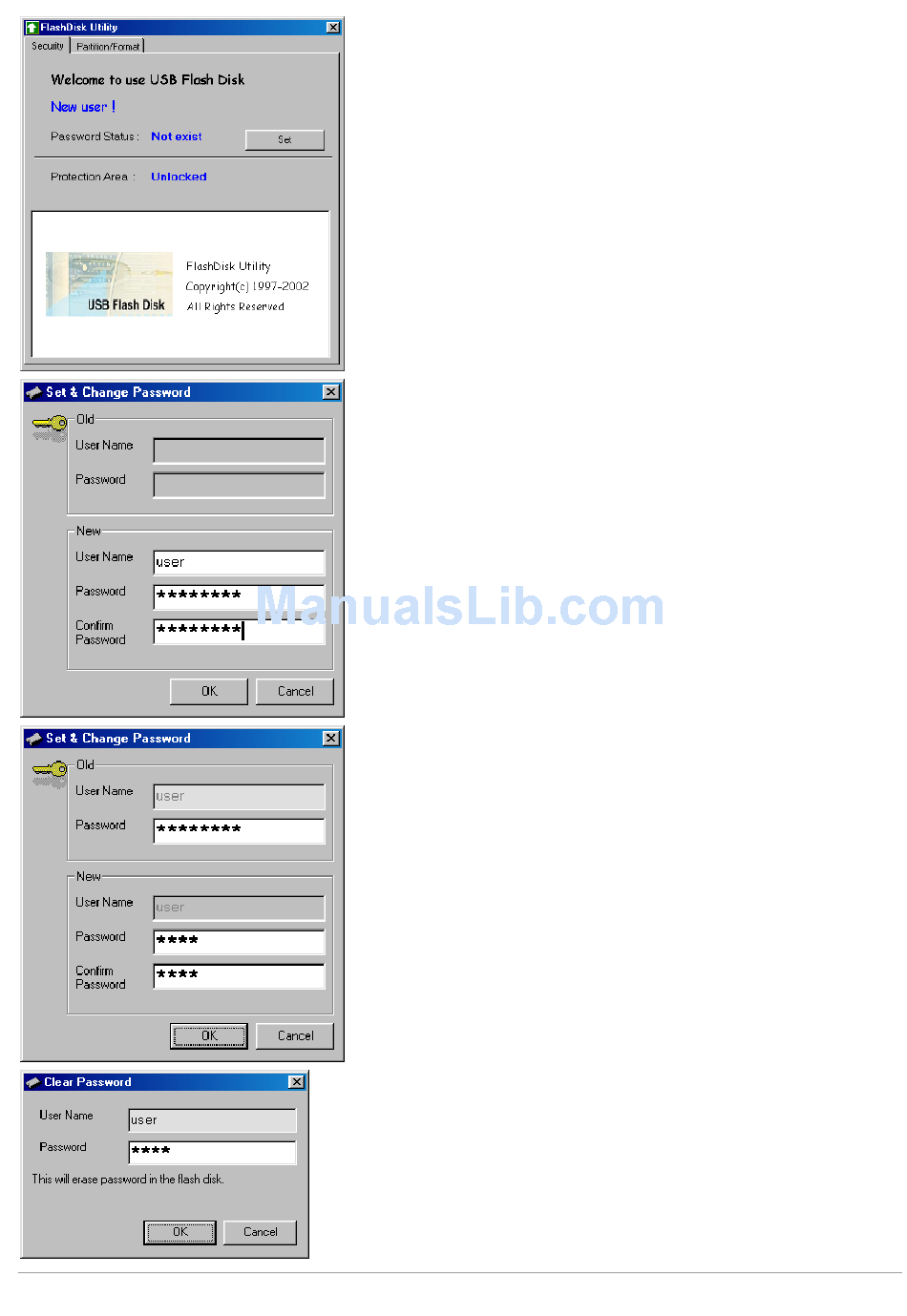

Set up your password: Click "Set", and the "Set & change
password" window should appear. Enter the user's name and
password, then click "OK" to set up the password.
Change the password: Click the "Change" button. The
dialog boxes as shown below will appear, enter the old
password and new password then click "OK" to complete the
process.
Clear password: Click the "Clear" button. When the dialog
box below appears, enter the correct password then click
"OK" to clear the password.
