4.2.5 OPERATION

This operator station is installed on the truck, for example the pump operator's panel. It is used to operate the monitor from a location
on the truck.
OSCILLATE button used to
initiate monitor movement
through stored sequence
(pattern) or to program a
sequence (pattern).
FOG button used to move
nozzle pattern to wide and
short reach.
LEFT button used to rotate
(sweep) water stream from
right to left from starting
point.
DOWN button used
to move water stream
vertically down from
starting point.
MONITOR UP/DOWN
button typically used to
control RC Extend-AGun.
Also known as the AUX1
button. Could also be used
with YE-REMAUX relay
interface box to control
other devices.
©Copyright Task Force Tips, Inc. 2008-2014
NO COMMUNICATION LINK
WHEN ALTERNATING
POWER
OSCILLATE
FLASHING = LOW BATT
®
UP
MONITOR www.tft.com
DOWN
800-348-2686
WARNING
Read manual before use.

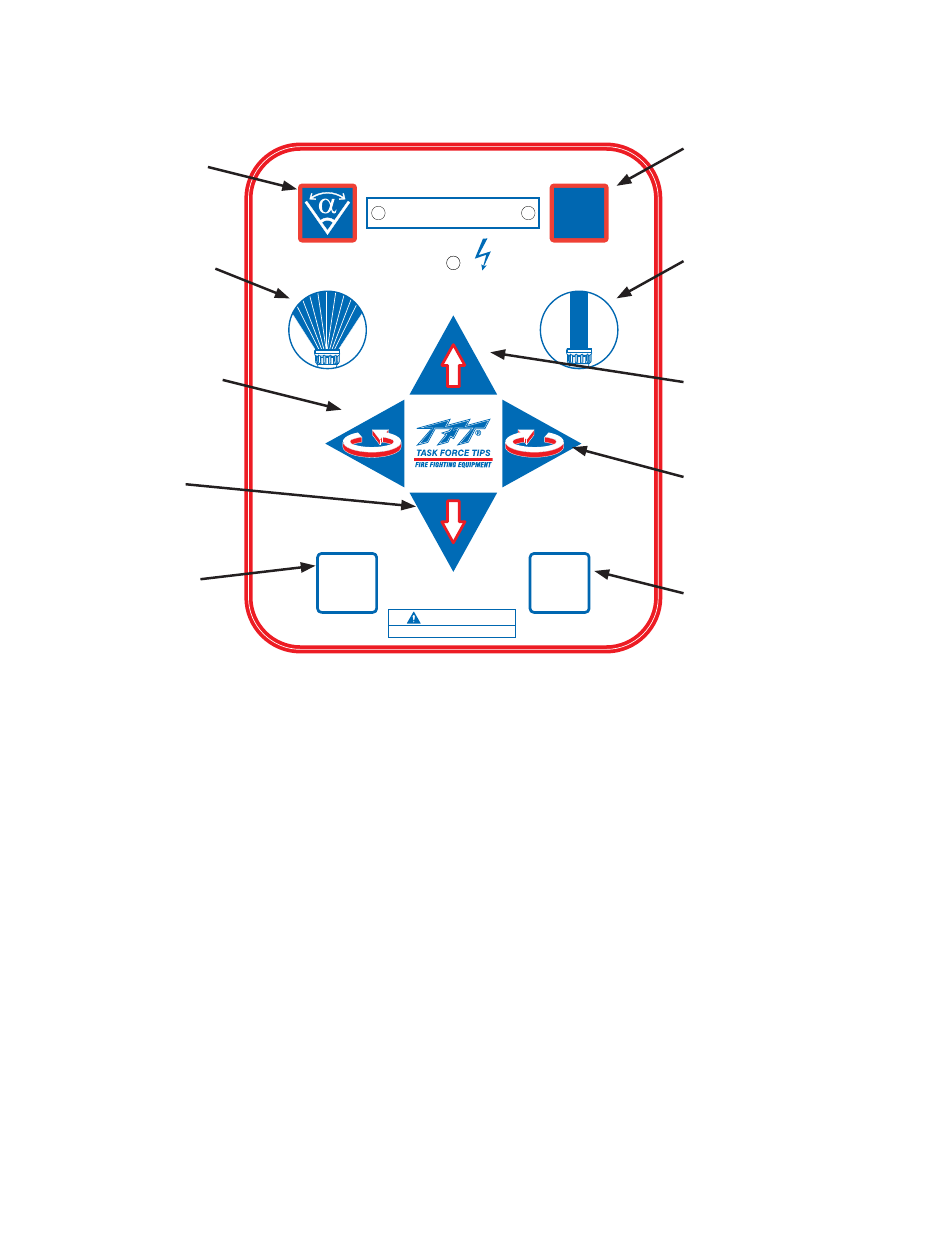

Fig. 4.2.5
Operator Station Control Pad
14
PARK button used to initiate
monitor storage sequence
or to program storage
movements.
P
PARK
STRAIGHT STREAM button
used to move nozzle pattern
to narrow and long reach.
UP button used to move
water stream vertically up
from starting point.
RIGHT button used to rotate
(sweep) water stream from
left to right from starting
position.
ON
FLOW ON/OFF button
FLOW
typically used to control
OFF
RC Valve Kit or VUM. Also
known as the AUX2 button.
Y5700
Could also be used with YE-
REMAUX relay interface box
to control other devices.
