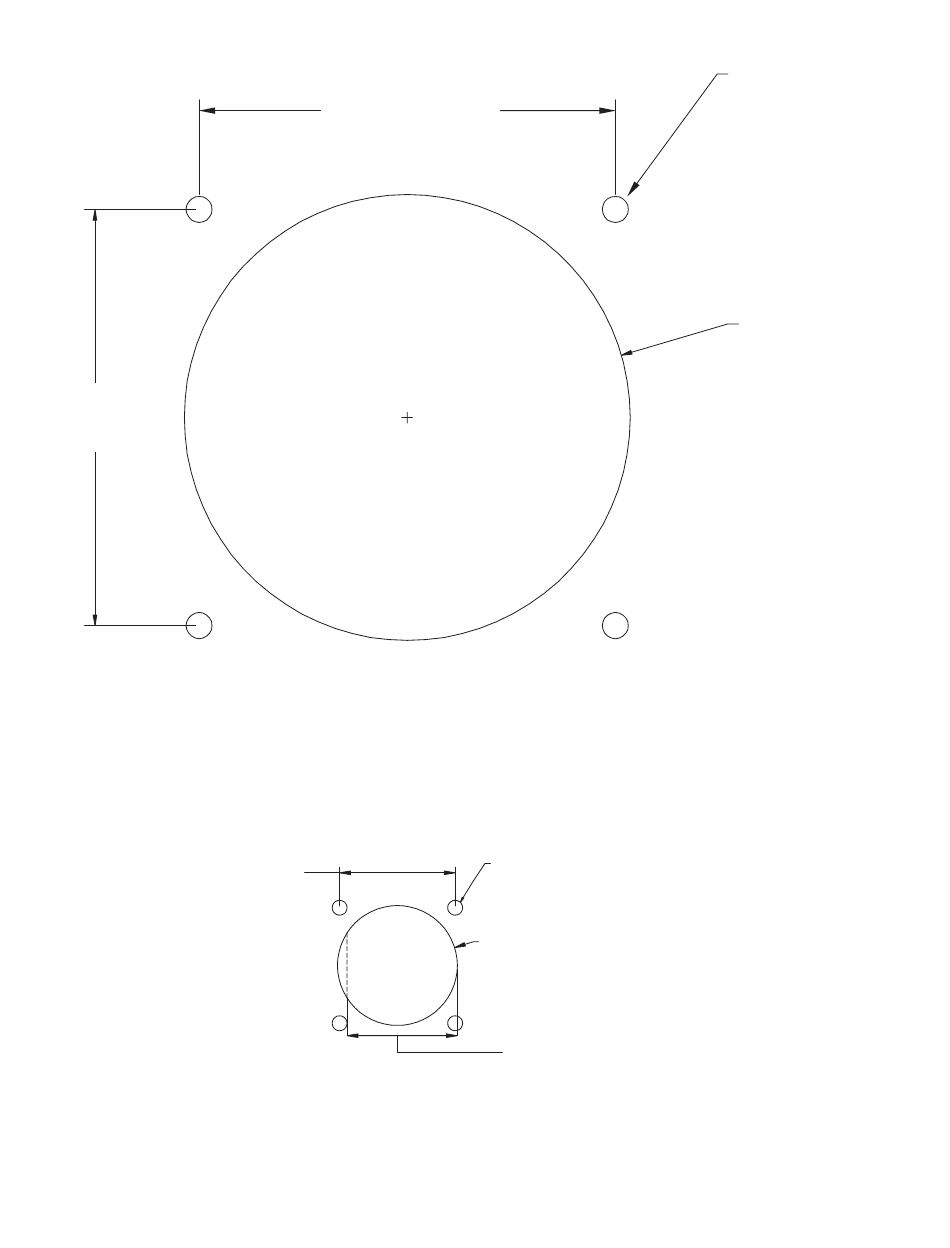

12.0 TEMPLATES

7/32" (5.5mm) DIA
3 1/2"
(4) PLACES
(89mm)
OR TAP FOR
10-32 UNC THREAD
Ø3.75"
(95mm)
3 1/2"
(89mm)
CUT OUT FOR RC CONTROLS
TEMPLATE 4.2A
INSTALLER CAN USE FLAT OR #4
SCREWS TO STOP ROTATION
0.964" (24.5mm)
1/8" (3mm) DIA
SQUARE
(4) PLACES
Ø1.00" (25mm)
0.919" (23mm)
OPTIONAL FLAT
CUT OUT FOR QUICK CONNECT PLUG
TEMPLATE 4.2B
