KWIK GOAL 2D301 Assembly Instructions Manual page 4

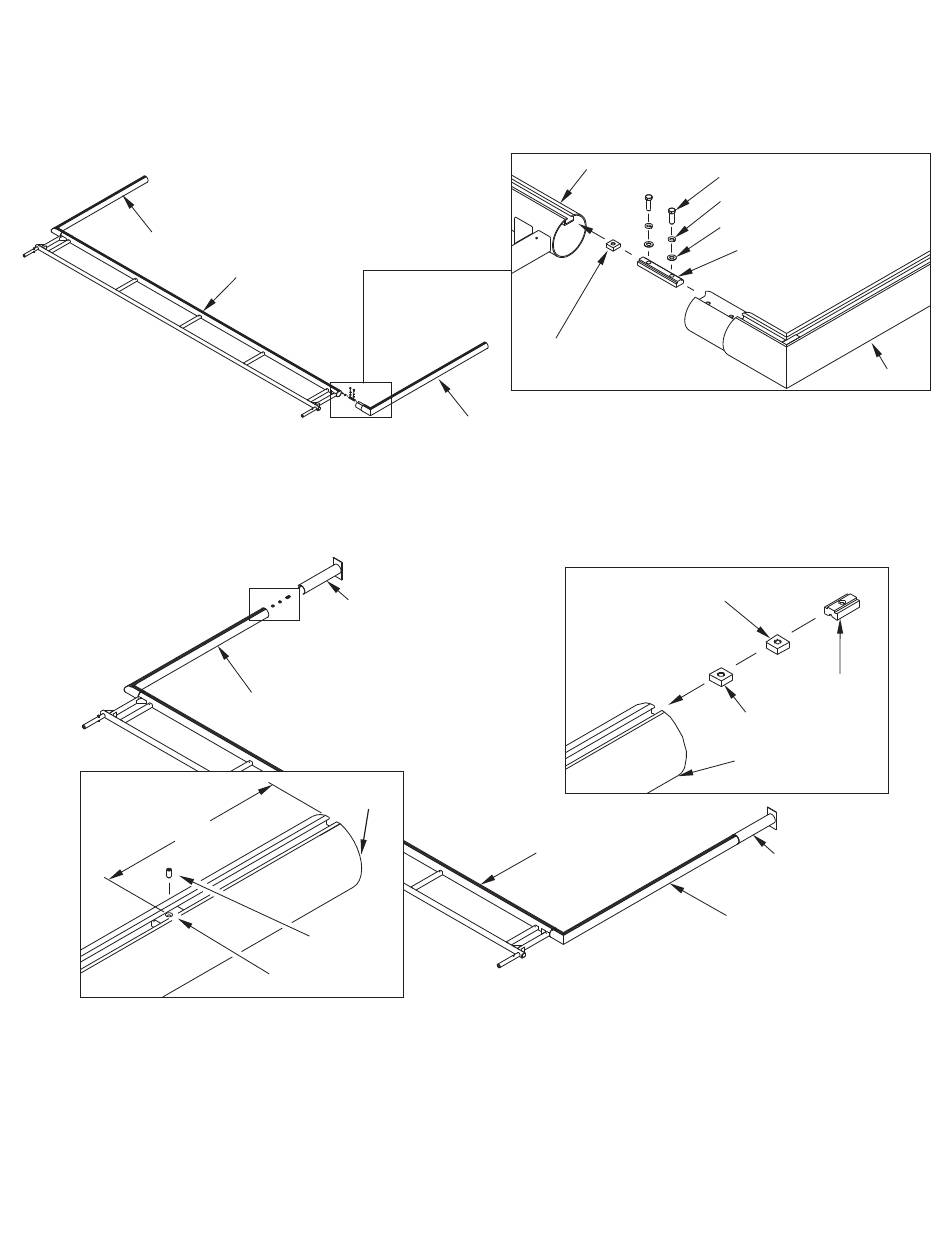

3. Attach left post and right post to crossbar using channel spacers and 3/8" x 1-1/2" hex bolts. Note direction of
decals on crossbar before fastening. Be sure connections are pressed firmly together before tightening hex bolts.
Left Post
24"
This goal has been designed to be used for the game of football or soccer only. Goal posts must be anchored AT ALL
TIMES and shall be secured against overturning. Do not climb on the net or goal framework at any time! All
fastenings must be checked to insure they are fully tightened before and after each use of this product. Goal posts
not in use must be disassembled and properly stored in a safe, secure area (See included Guidelines for Moveable
Soccer Goal Safety.). Assembled goal posts should not be left unattended. Remove nets when goals are not in use.
Do not use this equipment during the threat of high winds. Goal posts should be checked for safety before and after
each use. All warning and safety labels included with this product must be visible at all times.
Any modifications to this or any Kwik Goal product will void any and all warranties.
Crossbar
4. Insert two 3/8" square nuts and one T-spacer into left post and
Post Ground Sleeve
Left Post
Left Post
1/4" X 1/2"
Set Screw
T Spacer
***CAUTION***
Crossbar
3/8" Square Nut
Right Post
right post. Lock T-spacer into position with 1/4" x 1/2" set screws.
Slide front post ground sleeves onto left post and right post.
3/8" Square Nut
Crossbar
3/8" X 1 1/4" Hex Bolt
3/8" Lock Washer
3/8" Flat Washer
Channel Spacer
Right Post
T Spacer
3/8" Square Nut
Left Post
Post Ground Sleeve
Right Post
