Summary of Contents for Conquip Base Box 2500

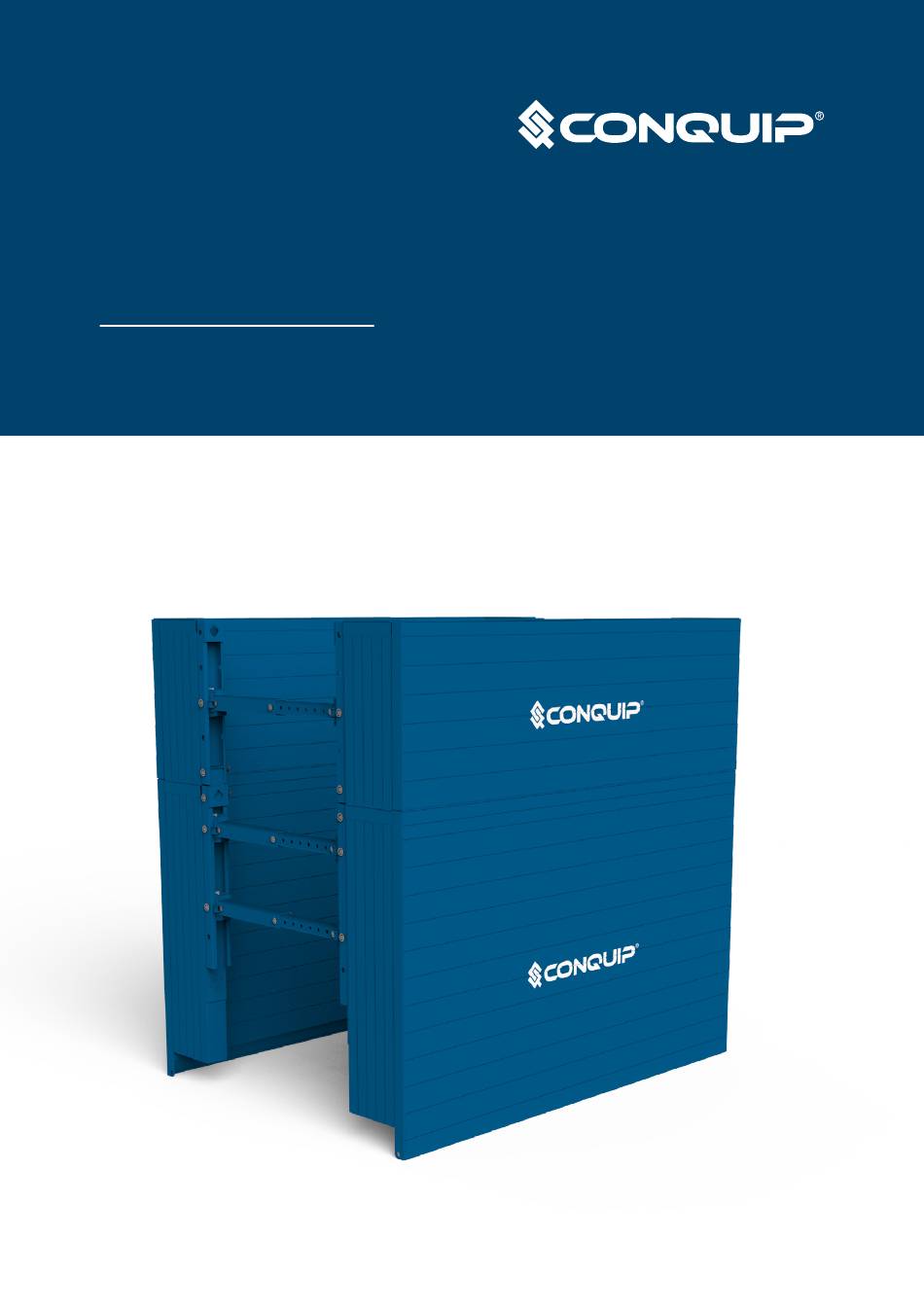

- Page 1 User Guide Manhole Box...
- Page 2 Product Information Overview The Conquip Manhole Box is a simple to assemble, two sided trench lining support system designed to be installed by an excavator using the ‘dig and push’ technique, or by simply carrying out the excavation and then lowering each box into place.
-
Page 3: Specification
Product Information Product Information Specification Specification Item Product Code Item Product Code Base Box 2500 TL103-00011 Extension Box 2500 TL103-00012 Base Box 3500 TL103-00007 Extension Box 3500 TL103-00008 Base Box 4000 TL103-00009 Extension Box 4000 TL103-00010 Excluding Struts Excluding Struts... -
Page 4: Parts Diagram
Manhole Extension Box NOTE: These parts are for this model, they may differ for previous versions. Please contact Conquip with any queries. NOTE: These parts are for this model, they may differ for previous versions. Please contact Conquip with any queries. -
Page 5: Usage Instructions
Original Working Instructions Usage Instructions Fig 1.1 Important Assembly Notes • Top extension boxes are to be assembled in the same way but only two struts should be fitted. Extension boxes are secured to the base boxes using connector brackets and pins. •... - Page 6 Original Working Instructions Original Working Instructions Usage Instructions Usage Instructions Connecting Extensions Boxes Important Installation Notes 1. The base box and extension box are connected via a connector bracket. • All personnel involved in installation must wear relevant personal protective equipment.
-
Page 7: Safety Instructions
Your risk assessment will determine the correct Personal Protective Equipment (PPE) for the task you are doing. You must use it. Conquip recommends that you should wear: •... - Page 8 If any third-party modifications or alterations, involving drilling, welding, cutting or distortion of materials in any form, are to be carried out on the product, Conquip Engineering Group must provide full written approval prior to the work being carried out.
-
Page 9: Ec Declaration Of Conformity
In accordance with EN ISO 17050-1:2004 Declaration: As defined by the Machinery Directive 2006/42/EC and subsequent amendments We, CONQUIP ENGINEERING GROUP, herewith declare that the following indicated equipment meets the fundamental health and safety requirements concerning the EU guide line(s), due to their design and manufacture. -
Page 10: Important Notes
Important Notes • This User Guide is for this Conquip product only. • Any movements of the product must be thoroughly planned before the work commences to identify potential hazards and assess risk. • All personnel involved in lifting and transportation of this product must have read this User Guide and must be properly briefed.
