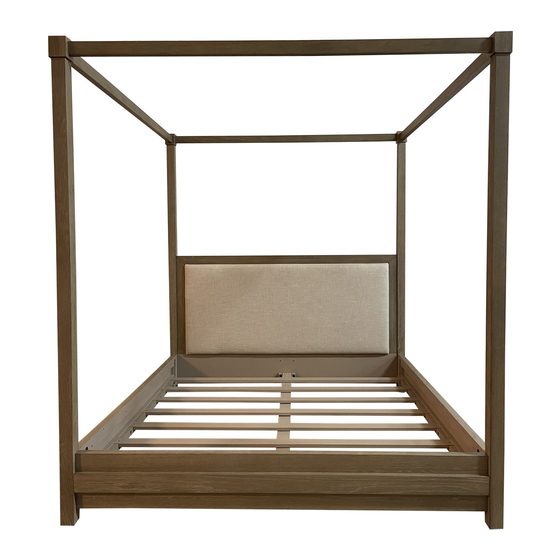

RH STACKED CANOPY BED Instructions

Thank you for choosing this quality product. Be sure to check all packaging materials carefully for small parts that may have
become loose during shipment and place all parts on a non-abrasive surface.
These bed parts can be cumbersome and heavy to some people, therefore the assistance of two or more people is
recommended in order to prevent personal injury and ensure the bed parts are not damaged during the assembly process.
PARTS INCLUDED
A [1] HEADBOARD
B [1] FOOTBOARD
C [2] SIDE RAILS
D [4] POSTS
E [2] SHORT CANOPY RAILS
F [2] LONG CANOPY RAILS
G [1] CENTER SUPPORT SLAT
H [2] CENTER SUPPORT LEG
I [7] BED SLATS
F
D
B
10/1/18
STACKED CANOPY BED INSTRUCTIONS
HARDWARE INCLUDED
NO. ITEM
1
Threaded Rod 5/16'' x 3"
2
3
Threaded Rod 5/16'' x 4-1/2"
4
5
6
Curved Slotted Washer
7
8
9
10
DESCRIPTION QTY.
12 PCS
4 PCS
Allen Bolt
8 PCS
20 PCS
Hex Nut
24 PCS
Lock Washer
20 PCS
2 PCS
Wrench
12 PCS
Plain Washer
1 PC
Allen Wrench
14 PCS
Screws
E
A
G
I
C
H
Page 1 of 4
