5.2.3 SHAPER LOCK OUT LEVER

The G-Force has an optional shaper lock out lever that locks
the shaper in a set position. Various stream patterns are
possible. User can specify with order. If not specifi ed, default
position at partial fog. When locked, the lever will be on top
of the nozzle. Moving a lever unlocks the shaper for normal
pattern adjustment. When rotating the shaper, the shaper will
automatically become locked when the lock out lever moves
to the top of the nozzle.
5.2.4 STREAM PATTERN POSITION ADJUSTMENT
Typically the G-Force is factory set with the tactile indicator or lock out lever in the top position for a partial fog stream pattern. The
stream pattern can be adjusted while keeping the tactile indicator or lock out lever on top by following the steps in fi gure 5.2.4A:
1) Remove the shaper label.
2) Loosen the clamp ring
©Copyright Task Force Tips, Inc. 2011-2013
with a pin spanner.

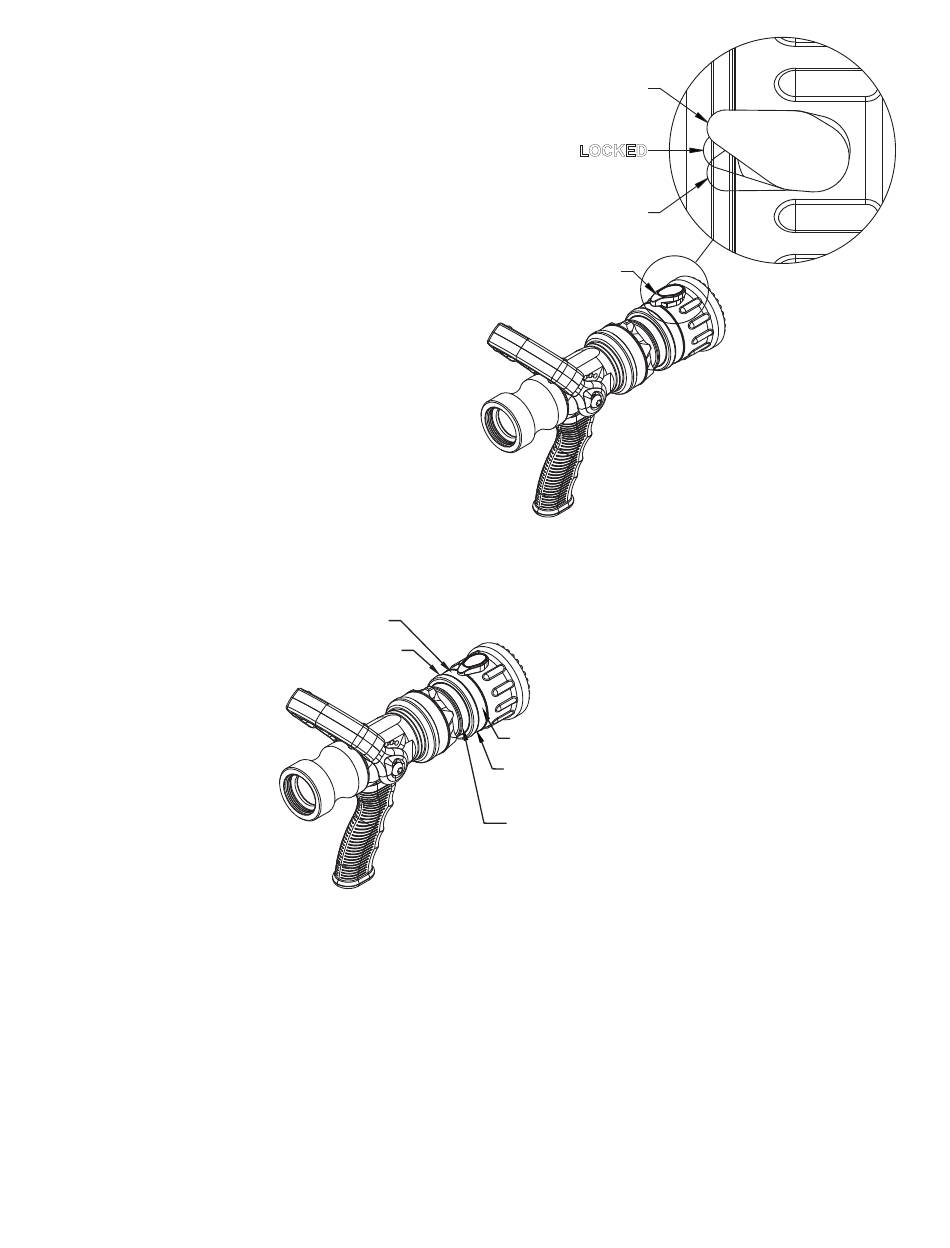

Figure 5.2.4A Stream Pattern Adjustment
UNLOCKED
LOCKED
UNLOCKED
LOCKOUT
5) Apply a new shaper label.
4) Tighten the clamp ring
with a pin spanner.
3) While keeping the tactile indicator
or lock out lever on top,
rotate the shaper guide
to obtain the desired stream pattern.
11
TOP VIEW
