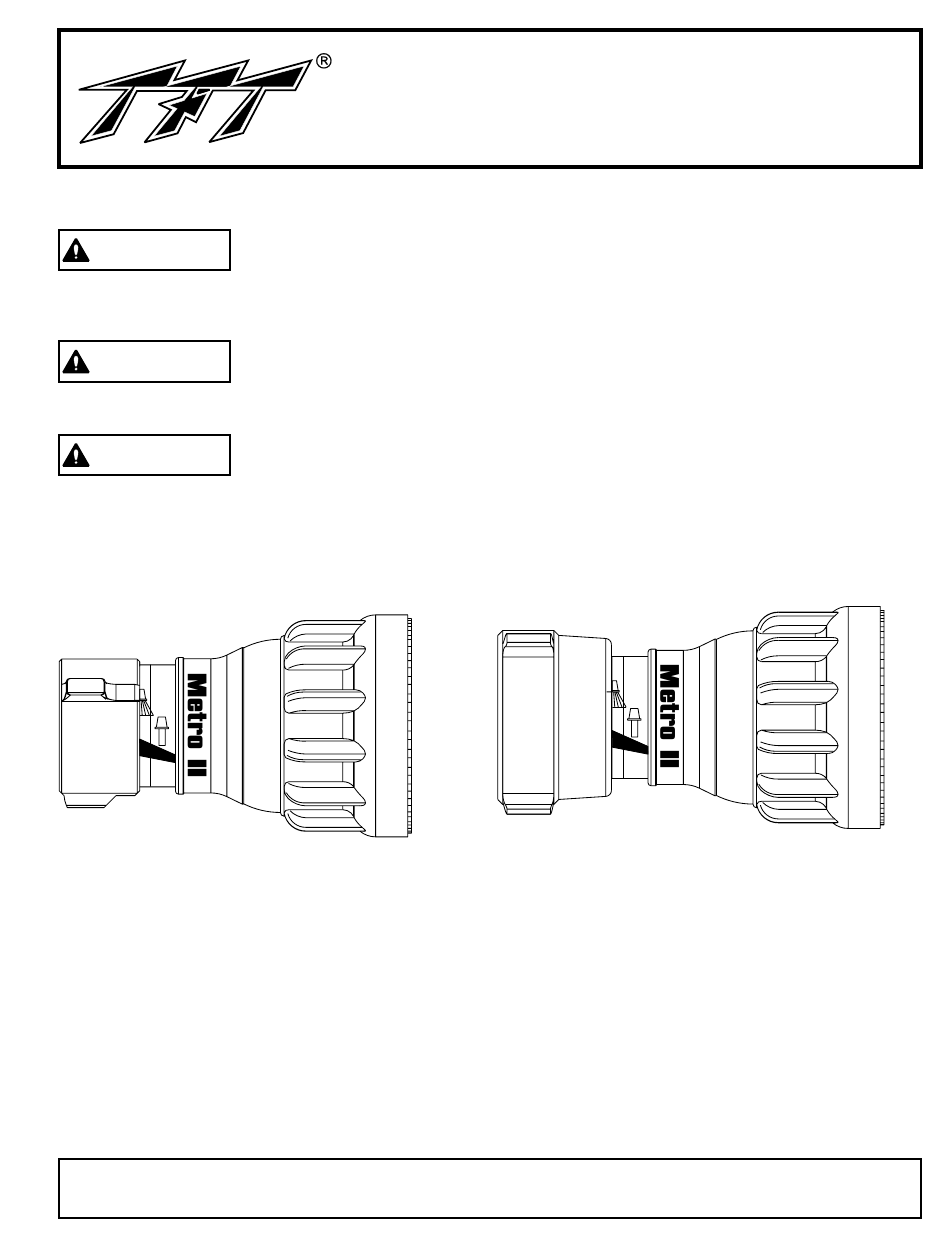

INSTRUCTIONS FOR SAFE OPERATION AND MAINTENANCE
WARNING
WARNING
WARNING
FM Series
METRO II TIP 1.5" NH
MAXIMUM OPERATING PRESSURE 150 PSI
HYDROSTATIC PROOF TEST 900 PSI
TASK FORCE TIPS, Inc.
www.tft.com
©Copyright Task Force Tips, Inc. 2002
Read instruction manual before use. Operation of this nozzle without
understanding the manual and receiving proper training can be
dangerous and is a misuse of this equipment. Call 800-348-2686 with any
questions.
This instruction manual is intended to familiarize firefighters and
maintenance personnel with the operation, servicing and safety
procedures associated with the Metro II fire fighting nozzles.
This manual should be kept available to all operating and maintenance
personnel.
MANUAL: Metro II
Fixed Gallonage Tip
JM Series
METRO II TIP 2.5" NH
2800 East Evans Avenue • Valparaiso , IN 46383-6940
800-348-2686 • 219-462-6161 • Fax 219-464-7155
LIN-040 April 2, 2002 Rev 0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FM Series and is the answer not in the manual?

Questions and answers

Related Manuals for Task Force Tips FM Series

Summary of Contents for Task Force Tips FM Series

  • Page 1 MAXIMUM OPERATING PRESSURE 150 PSI HYDROSTATIC PROOF TEST 900 PSI TASK FORCE TIPS, Inc. 2800 East Evans Avenue • Valparaiso , IN 46383-6940 800-348-2686 • 219-462-6161 • Fax 219-464-7155 www.tft.com ©Copyright Task Force Tips, Inc. 2002 LIN-040 April 2, 2002 Rev 0...

  • Page 2: Table Of Contents

    2.0 GENERAL INFORMATION The Task Force Tips Metro II tip only nozzles are designed to provide excellent performance under most fire fighting conditions. Their rugged construction is compatible with the use of fresh water (see section 5.0 for saltwater use) as well as fire fighting foam solutions.

  • Page 3: Various Models And Terms

    Valve With Grip STREAM BARREL LABEL SHAPER NAME LABEL COUPLING Ball Valve TIP ONLY NOZZLE AVAILABLE WITH 1.5” OR 2.5” COUPLING FIGURE 1 COMMON MODEL AND TERMS Monitor ©Copyright Task Force Tips, Inc. 2002 LIN-040 April 2, 2002 Rev 0...

  • Page 4: Nozzle Couplings

    250 GPM @ 50 PSI (K=35.4) 22.7 kgf 250 GPM @ 75 PSI (K=28.9) 250 GPM @ 100 PSI (K=25.0) 325 GPM @ 100 PSI (K=32.5) FLOW (GPM) ©Copyright Task Force Tips, Inc. 2002 LIN-040 April 2, 2002 Rev 0...

  • Page 5: Washer Setting

    The nozzle reaction is greatest when the shaper is in the straight stream position. The nozzle operator must be prepared for a change in reaction as the pattern is changed. ©Copyright Task Force Tips, Inc. 2002 LIN-040 April 2, 2002 Rev 0...

  • Page 6: Flush Control

    4.3.1 FOAM ASPIRATING ATTACHMENTS To increase the expansion ratio, Task Force Tips "MX Foamjet" (model FJ-HMX) multi expansion attachment or LX Foamjet (model FJ-H) low expansion attachment may be used with the Metro II nozzle. These foam tubes attach and detach quickly from the nozzle.

  • Page 7: Use Of Metro Ii Nozzles

    Task Force Tips assumes no liability for damage to equipment or injury to personnel that is a result of user service. Repair kits and repair parts are stocked for immediate shipment. Contact the factory or visit the website at www.tft.com for parts lists, exploded views, test procedures and trouble shooting guides.

  • Page 8: Flow Rate Tables

    (3) Flows listed are approximate (nearest 5 gpm) and do not account for losses in preconnected piping or changes in elevation. (4) The actual flow of each nozzle may vary +10%/-0% from flow listed per NFPA #1964. ©Copyright Task Force Tips, Inc. 2002 LIN-040 April 2, 2002 Rev 0...

  • Page 9: Answers To Your Questions

    We appreciate the opportunity of serving you and making your job easier. If you have any problems or questions, our toll- free "Hydraulics Hotline", 800-348-2686, is normally available to you 24 hours a day, 7 days a week. ©Copyright Task Force Tips, Inc. 2002 LIN-040 April 2, 2002 Rev 0...
  • Page 10 10.0 DRAWINGS AND PART LISTPASTELIST ©Copyright Task Force Tips, Inc. 2002 LIN-040 April 2, 2002 Rev 0...
  • Page 11 WASHER 200 GPM AT 75 PSI H410-63 WASHER 250 GPM AT 75 PSI H410-83 WASHER 250 GPM AT 100 PSI H410-84 WASHER 325 GPM AT 100 PSI H410-94 ©Copyright Task Force Tips, Inc. 2002 LIN-040 April 2, 2002 Rev 0...

  • Page 12: Inspection Checklist

    12.0 WARRANTY Task Force Tips, Inc., 2800 East Evans Avenue, Valparaiso, Indiana 46383 ("TFT") warrants to the original purchaser of its Ultimatic, Mid-Matic, and Handline series nozzles ("equipment"), and to anyone to whom it is transferred, that the equipment shall be free from defects in material and workmanship during the five (5) year period from the date of purchase.

This manual is also suitable for:

Jm seriesMetro iiMetro ii tip 1.5” nhMetro ii tip 2.5” nh
