Specifications; Mechanical - Task Force Tips ThunderFog Series Instructions For Installation, Safe Operation And Maintenance

ON
C) BALL VALVE WITH
ON
E) QUADRACUP RETRACTED POSITION

3.2 SPECIFICATIONS

3.2.1 MECHANICAL

Maximum nozzle intlet pressure
with valve shutoff
Operating temperature range of
fl uid
Storage temperature range of
fl uid
Materials used
©Copyright Task Force Tips LLC 2002 - 2018
OFF
Selector Ring
Pistol Grip
PISTOL GRIP
OFF
Ball Valve Handle
Model Number
Serial Number
Pressure Calibration

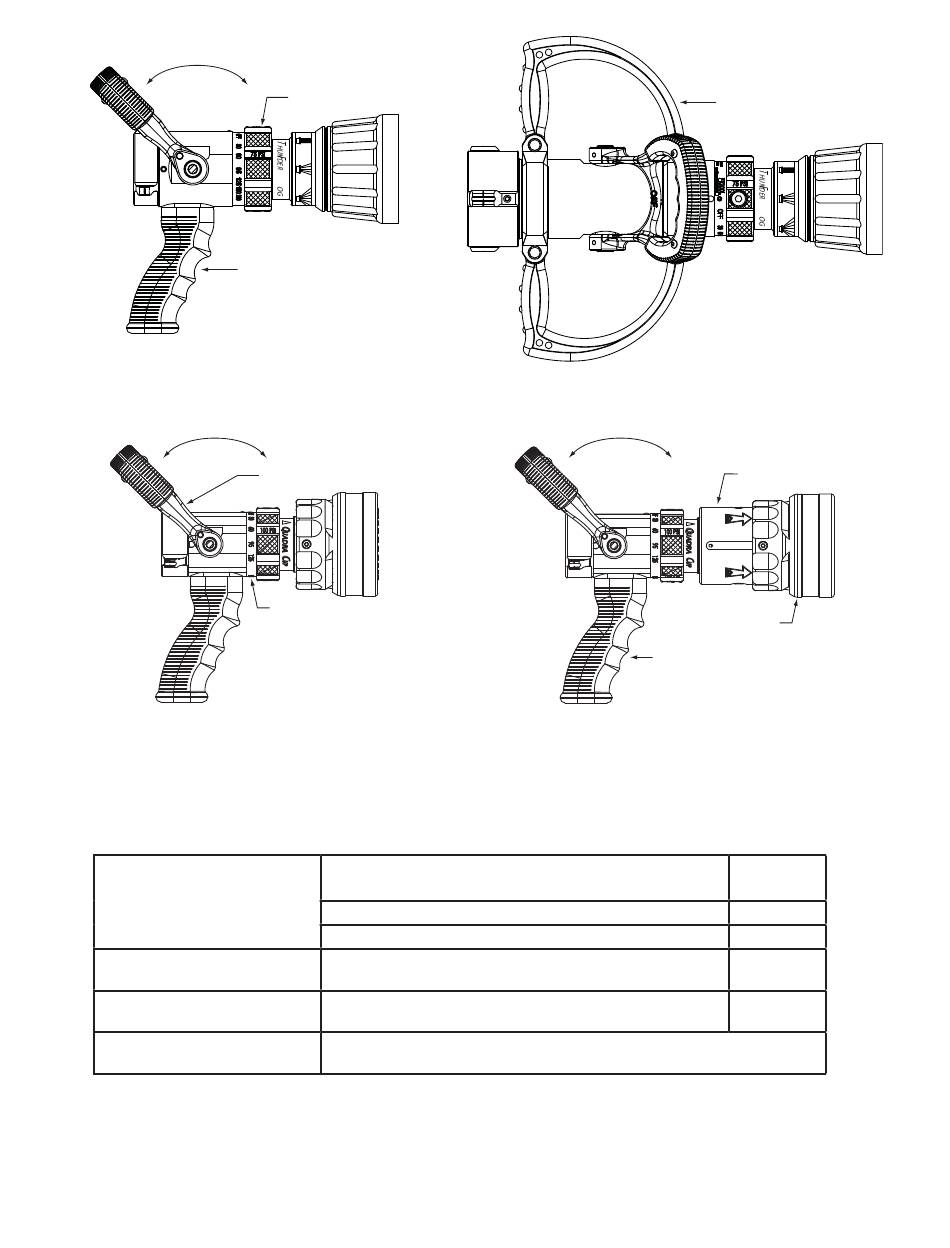

BASIC NOZZLE CONFIGURATIONS AND TERMS
1" Quadrafog 300 psi Standard Model
1" Quadrafog 800 psi High Pressure Model
1.5" Quadrafog & Quadracup 300 psi
1.5" & 2.5" Thunderfog 300 psi
33 to 120 F
-40 to 150 F
Aluminum 6000 series hard anodized MIL 8625 class 3 type 2, stainless
steel 300 series, nylon 6-6, nitrile rubber
ON
F) QUADRACUP EXTENDED POSITION
FIGURE 1
6
Playpipe Handle
D) PLAYPIPE
OFF
Shaper
Aspirating Sleeve
Pistol Grip
21 bar
55 bar
21 bar
21 bar
1 to 50 C
-40 to 65 C
LKF-100 August 2, 2018 Rev19
