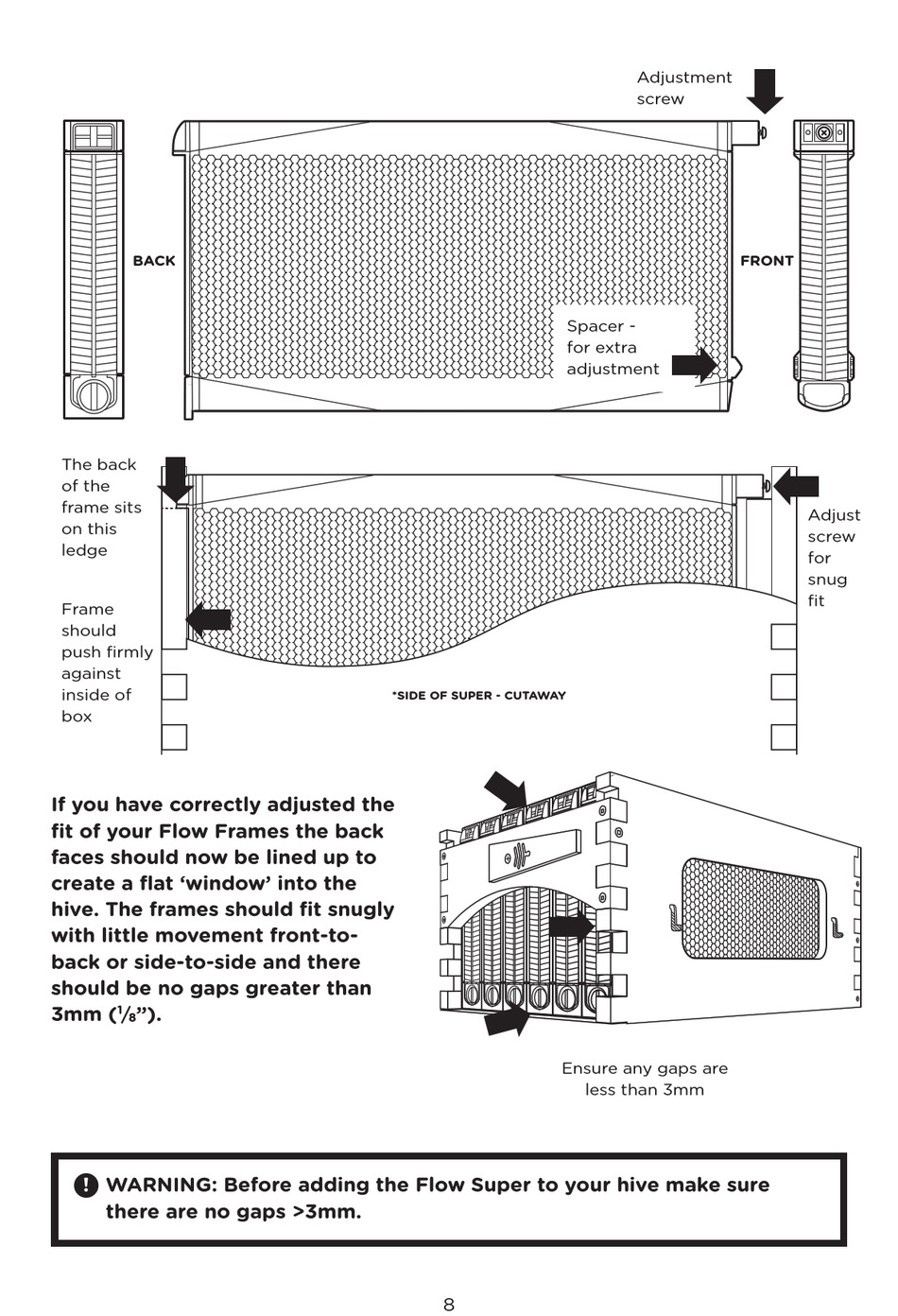

Flow Hive Instruction Manual page 10

BACK
The back
of the
frame sits
on this
ledge
Frame
should
push firmly
against
inside of
box
If you have correctly adjusted the
fit of your Flow Frames the back
faces should now be lined up to
create a flat 'window' into the
hive. The frames should fit snugly
with little movement front-to-
back or side-to-side and there
should be no gaps greater than
3mm ( ").
1 /
8
l
! WARNING: Before adding the Flow Super to your hive make sure
there are no gaps >3mm.
*SIDE OF SUPER - CUTAWAY
Ensure any gaps are
8
Adjustment
screw
Spacer -
for extra
adjustment
less than 3mm
FRONT
Adjust
screw
for
snug
fit
