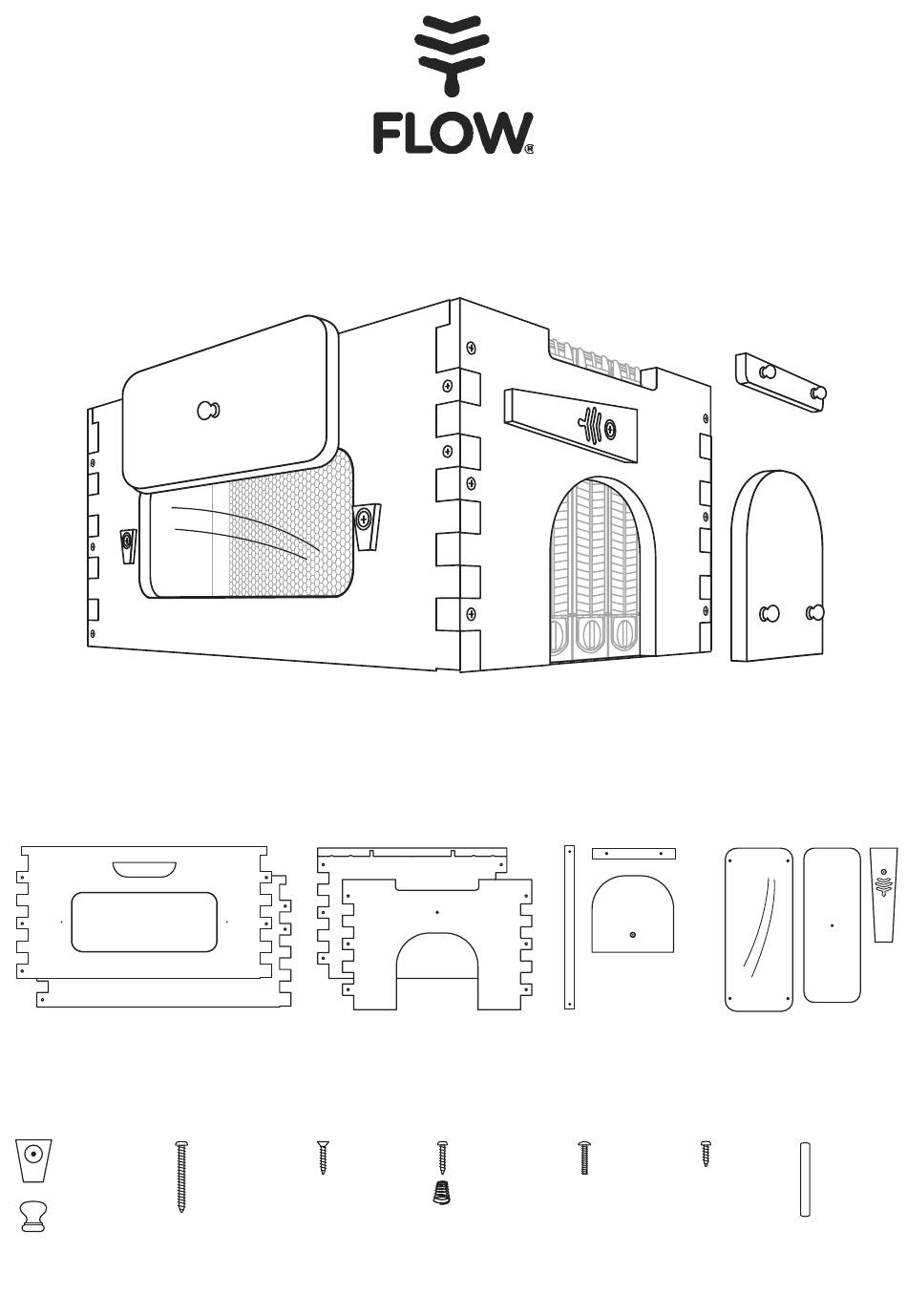

PARTS
• 2 x side panels
(1 with observation window)
HARDWARE
2 x observation
window latches
4 x 23mm dia
wooden knobs
FLOW HYBRID SUPER ASSEMBLY
If we look after the bees they will look after us,
and the honey really is an amazing bonus.
22 (+2 spare)
2 x 20mm 6G
x 45mm 8G
countersink
pan head screws
head screw
To assemble box
To affix metal
sides and ends
strip
See overleaf for assembly
• 1 x front panel
• 1 x aluminium bracing strip
• 1 x rear panel
• 1 x Flow Key access cover
• 1 x rear window cover
3 x 25mm 6G
pan head screws
and springs
To secure
observation and
rear window
latches
• 1 x observation window
• 1 x window cover
• 1 x rear window latch
4 x 20mm x
4 x 10mm
6G
4mm
pan head
metal thread
screws
screws
To secure
To secure
window
wooden knobs
2 x 32mm
wooden
dowels
For centering
Flow frames
Advertisement
Related Manuals for Flow HYBRID SUPER
Summary of Contents for Flow HYBRID SUPER
- Page 1 • 1 x aluminium bracing strip • 1 x observation window (1 with observation window) • 1 x rear panel • 1 x Flow Key access cover • 1 x window cover • 1 x rear window cover • 1 x rear window latch...
- Page 2 1. Lay out all the pieces of your Flow® Hybrid Super. The metal bracing strip sits across the notched ends. Screw the metal strip in place (pre-drilling may avoid 2. Dry fit all the pieces together to make a box (as per the illustration on right).
