Zennio GetFace IP Assembly Instructions page 2

Surface installation ‐ Frame ‐ 2 modules
ZVP‐CB2M

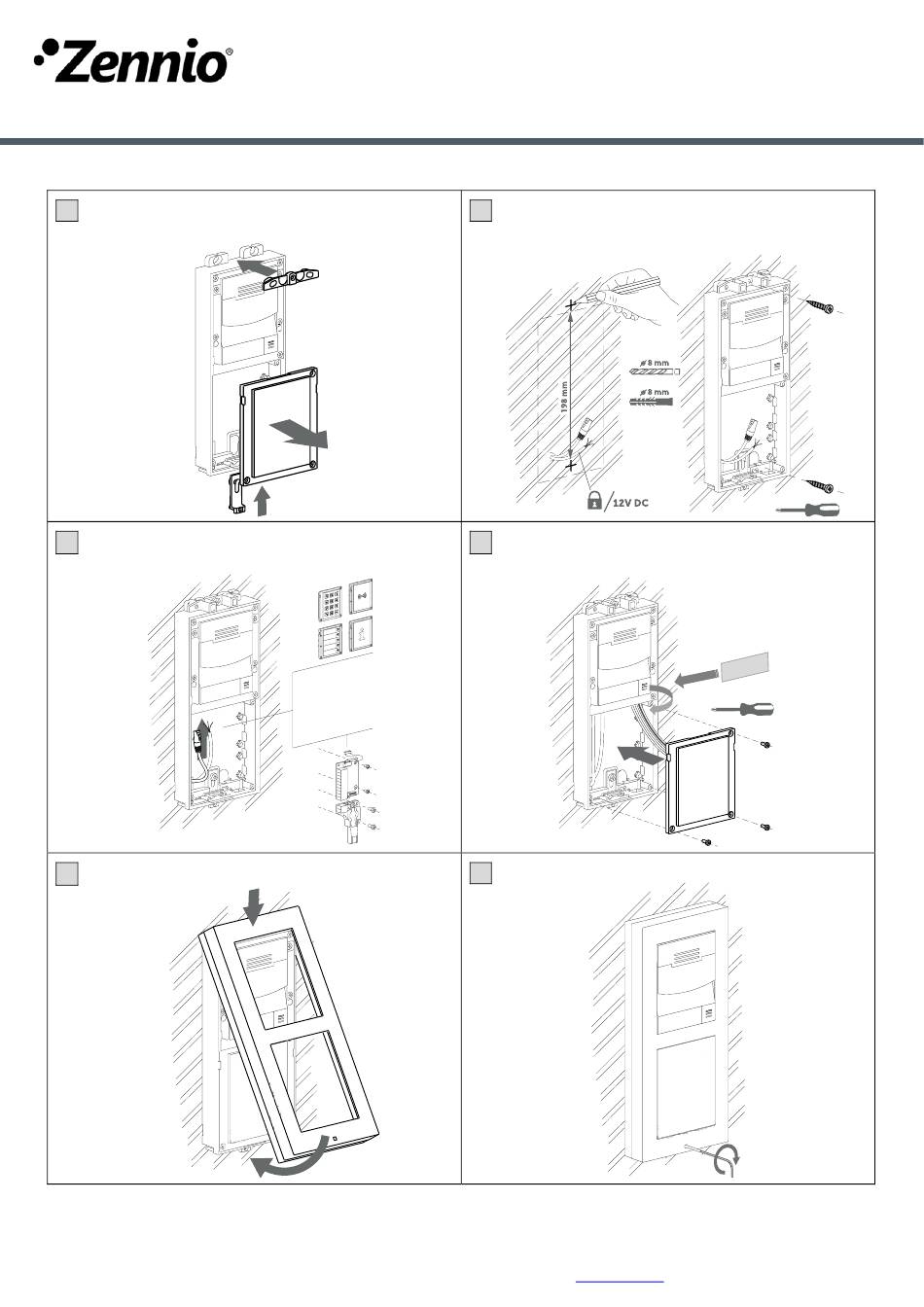

ASSEMBLY OF THE FRAME (ONE-COLUMN LAYOUT)
1
Please remove the blind panel of the basic unit and place
the metallic auxiliary parts supplied with the frame.
3
Connect the cables to the basic unit and interconnect the
additional modules with the bus.
5
Place the frame.
Note: it is recommended to install the backplate (ZVP-BPLA2) if the wall surface irregularity is greater than 0.5mm.
© Zennio Avance y Tecnología S.L.
2
Place the basic unit correctly levelled on the wall and drill
two holes for the expanding plugs. Recover the cables and fix
the module with the screws (included).
4
Fix the blind panel (or additional modules that remain in
sight) with the supplied screws and put the labels with captions
next to the buttons.
6
Fix the frame by using the supplied Allen key.
Dimensions:
232 x 106.5 x 27.5 mm
Ed. 2 For more info www.zennio.com
GetFace IP
Assembly instructions
Page 1 / 2
