Zennio ZVPCB1MB Assembly Instructions

Surface installation - Frame - 1 module – nickel/black
ZVP-CB1M / ZVPCB1MB

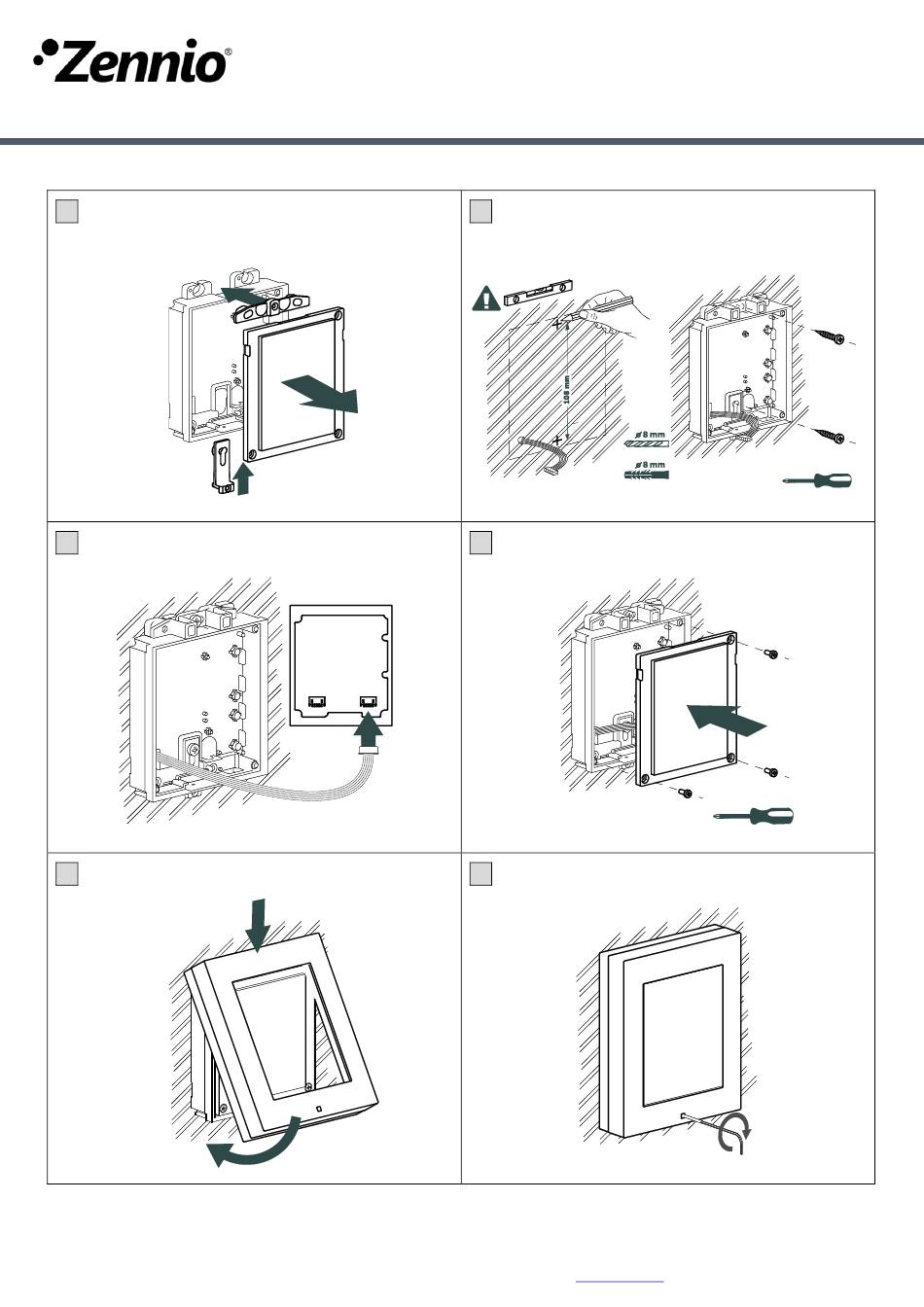

ASSEMBLY OF THE FRAME
1
Please remove the additional module from the enclosure
and place the metallic auxiliary parts supplied with the frame.
3
Connect the bus to the additional module.
5
Place the frame.
Note: It is recommended to install the backplate (ZVP-BPLA1) if the wall surface irregularity is greater than 0.5mm.
© Zennio Avance y Tecnología S.L.
2
Place the additional module enclosure correctly levelled on
the wall and drill two holes for the expanding plugs. Recover the
cables and fix the enclosure with the screws (included).
4
Fix the additional module with the supplied screws.
6
Fix the frame by using the supplied Allen key.
Dimensions: 128 x 106.5 x 27.5 mm
Ed. 3 For more info
GetFace IP
Assembly instructions
www.zennio.com
