Follow the instructions in the App to adjust resistance settings in the ankle for plantar flexion, dorsiflexion and toe stiffness. For each re-
9
sistance change, sliding the setting to the left will decrease resistance or stiffness and sliding the setting to right, will increase resistance
or stiffness. Adjust until optimal setting achieved.
Follow next screens to demonstrate Low Battery, Dead Battery mode, and Manual Lock.
10
11
The tool bar across the bottom of the screen provides short cuts to the different functions of the ankle.
Setup: Allows prosthetist to go through Full Setup Process, or individually Calibrate, Adjust
resistance settings, or demonstrate to the patient the different modes available
Disconnect: Allows prosthetist to disconnect from ankle or unpair the ankle and disconnect
Tools: Allows prosthetist to generate cadence report, update firmware or reset to factory defaults
Status: Shows ankle connected, battery status, total steps, serial number, part number and firmware
version
Help: Provides contact information for technical support
For more information, consult Global Headquarters
the Instructions for Use Manual or 3 Morgan
call 888.818.6777. Irvine CA 92618
toll-free 888.818.6777
tel 949.672.0032
www.freedom-innovations.com
©2019 Freedom Innovations, LLC. All rights reserved. Kinnex is a trademark of Freedom Innovations, LLC.
Connect with us
#freedomeveryday

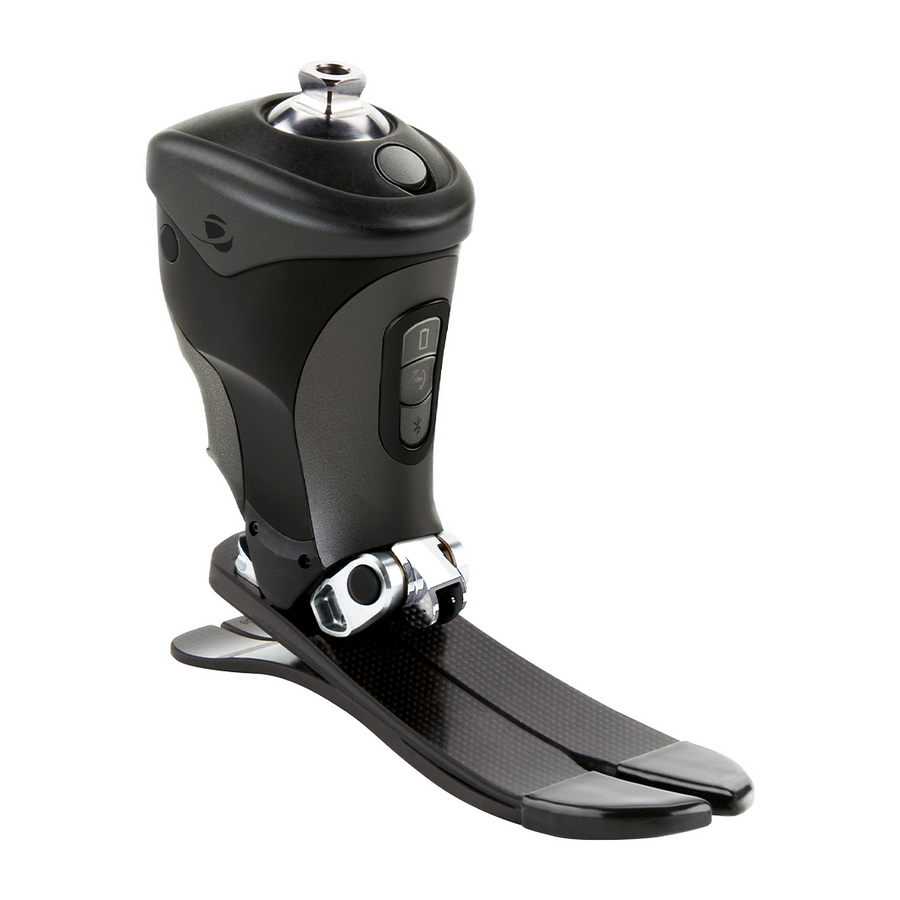

CG-03-010 Rev. A Kinnex 2.0 Prosthetist Setup Guide
2.0
™
Prosthetist
Setup Guide
Alignment and Setup
