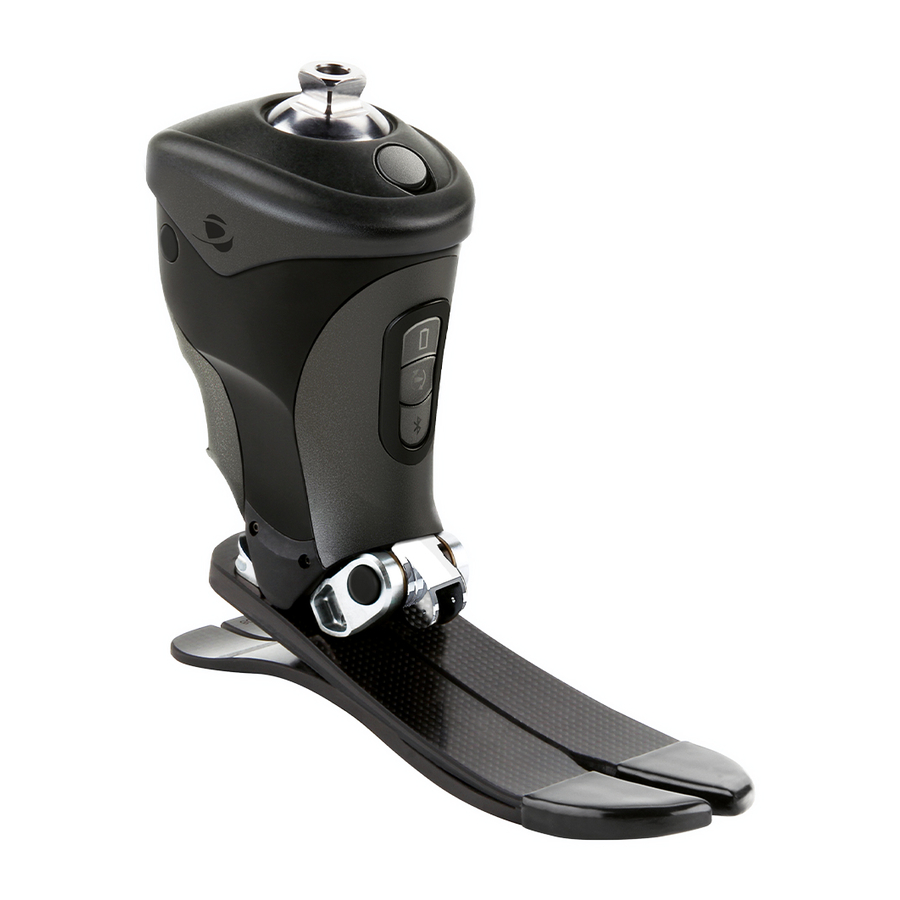

Freedom Innovations KINNEX 2.0 Patient User Manual

FREEDOM INNOVATIONS
Check Battery Charge Level
Press and release the Battery Button once to check battery charge level.
Indicator lights will illuminate briefly displaying the charge level. The table
below describes the indicator lights when the Kinnex ankle is discharging
(not plugged in).
Indicator Light Charge Level
Solid green 51% - 100%
Flashing green 21% - 50%
Solid red 11% - 20%
Flashing red 1% - 10%
While charging (plugged in), the indicator light flashes at a rate that
indicates the amount of charge in the battery. The longer the light stays
illuminated during the flash, the higher the charge. Once the ankle is
completely charged, the indicator light will be solid green.
Change Footwear
The Change Footwear Button allows adjusting to changes in footwear.
To change footwear follow these steps:
1. Don your Kinnex ankle with the new footwear.
2. Press and hold the Change Footwear Button until the indicator light in
the button begins to flash white.
3. Once the white indicator light begins to flash, stand up straight with
your feet shoulder width apart.
4. Remain still until the white indicator light stops flashing. This usually
takes less than 5 seconds.
For more information, consult Global Headquarters
the Instructions for Use Manual or 3 Morgan
call 888.818.6777. Irvine CA 92618
toll-free 888.818.6777
tel 949.672.0032
www.freedom-innovations.com
©2019 Freedom Innovations, LLC. All rights reserved. Kinnex is a trademark of Freedom Innovations, LLC.
5. If the Kinnex ankle cannot adjust within 10 seconds it will indicate an
error condition by alternating flashing of the white and red indicator
lights. The error indicator will flash for 15 seconds or until the Change
Footwear Button is pressed and released.
Manual Lock Mode
The Manual Lock is designed to assist with driving a car, putting on clothes
or footwear, or any activity where a fixed ankle position is desired. When
active, the Kinnex ankle will stay in the current position until the Change
Footwear Button is double-pressed.
To use Manual Lock:
1. Move the Kinnex ankle to the desired orientation.
2. Press the Change Footwear Button twice quickly.
3. The Change Footwear Button white indicator light will turn on while the
Kinnex ankle is locked.
4. Press the Change Footwear Button twice quickly again to release the lock.
5. The white indicator light will turn off and return to normal function.
