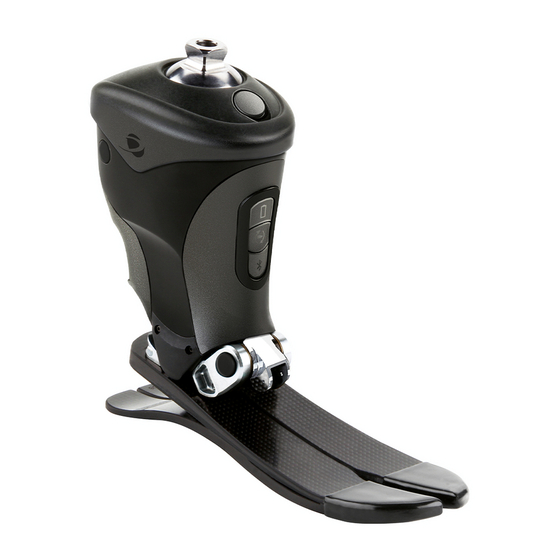

Microprocessor ankle/foot system
Hide thumbs Also See for KINNEX:

Advertisement

Quick Links

FREEDOM INNOVATIONS

Check Battery Charge Level

Press and release the battery button once to check battery charge level.
Indicator lights will illuminate briefly displaying the charge level. The table
below describes the indicator lights when the Kinnex ankle is discharging
(not plugged in).
Indicator Light
Charge Level
Solid
green
51% - 100%
Flashing
green
31% - 50%
Solid
red
11% - 30%
Flashing
red
1% - 10%
While charging (plugged in), the indicator light flashes at a rate that
indicates the amount of charge in the battery. The longer the light stays
illuminated during the flash, the higher the charge. Once the ankle is
completely charged, the indicator light will be solid green.

Change Footwear

The Change Footwear Button allows adjusting to changes in footwear.
To change footwear follow these steps:
1. Don Kinnex ankle with the new footwear.
2. Press and hold the Change Footwear Button until the indicator light in
the button begins to flash white.
3. Once the white indicator light begins to flash, stand up straight with
feet shoulder width apart.
4. Remain still until the white indicator light stops flashing. This usually
takes less than 5 seconds.
For more information, consult
Global Headquarters
the Instructions for Use Manual or
3 Morgan
call 888.818.6777.
Irvine CA 92618
toll-free 888.818.6777
tel 949.672.0032
www.freedom-innovations.com
©2016 Freedom Innovations, LLC. All rights reserved. Kinnex is a trademark of Freedom Innovations, LLC.
5. If the Kinnex ankle cannot adjust within 10 seconds it will indicate an
error condition by alternating flashing of the white and red indicator
lights. The error indicator will flash for 15 seconds or until the Change
Footwear Button is pressed and released.

Apparel Assist Mode

Apparel Assist is designed to help in putting on clothes or footwear. When
active, the Kinnex ankle will stay in the current position until the Change
Footwear Button is pressed or until weight is put on it.
To use Apparel Assist:
1. Move the Kinnex ankle to the desired orientation.
2. Press the Change Footwear Button twice quickly.
3. The Change Footwear Button white indicator light will turn on while the
Kinnex ankle is in Apparel Assist mode.
4. Don apparel as needed.
5. Press and release the Change Footwear Button 1 time to release the
Kinnex ankle or stand up to put weight on the ankle.
6. The white indicator light will turn off.
Connect with us
#freedomeveryday
R-720-241 Rev. B 6/17
Patient
User Guide
