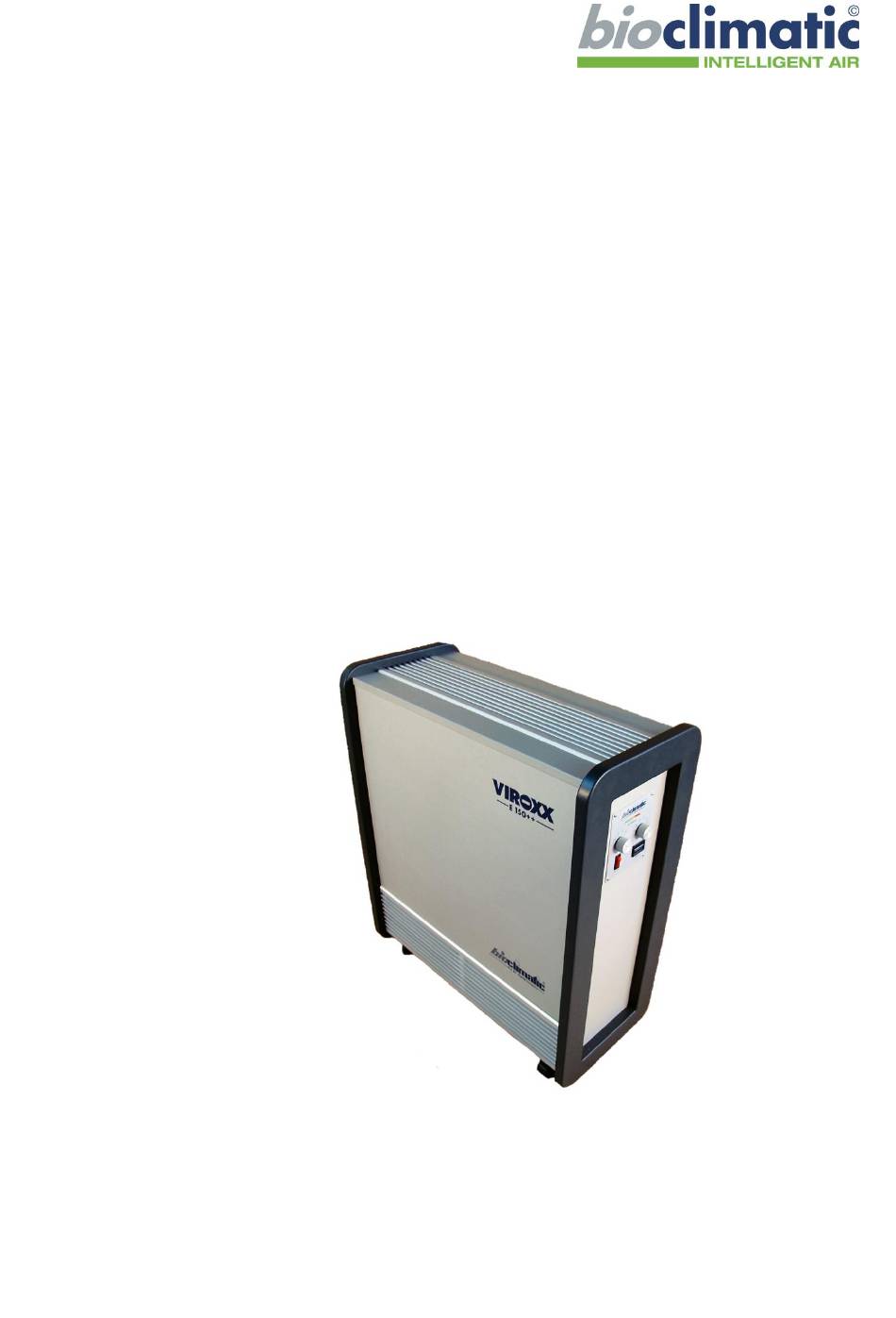

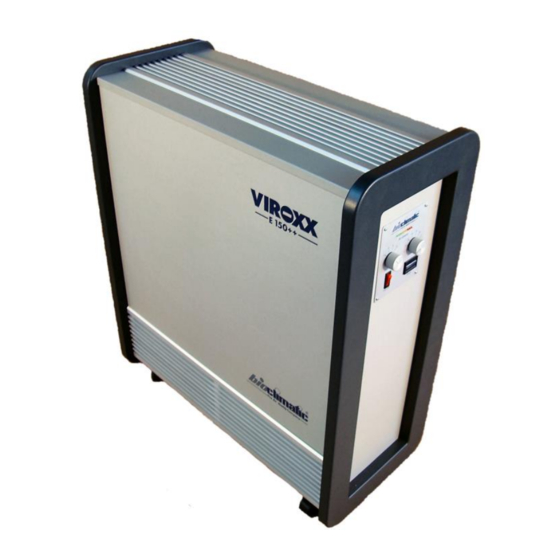

  • Page 1 air purifier VIROXX E150++ instruction manual version: state: January 2019...
  • Page 2 GmbH Im Niedernfeld 4 31542 Bad Nenndorf Germany phone: ++49 - 57 23 - 94 40 - 0 fax: ++49 - 57 23 - 94 40 - 30 e-mail: info@bioclimatic.de URL: www.bioclimatic.de In case of any questions according to operation or maintenance of the VIROXX E150++ please indicate the following information’s:...
  • Page 3 Index device description of the VIROXX E150++ purpose of use safety instructions Technical Data Safety instructions operation switch-on and off the control panel decommissioning of VIROXX E150++ recommissioning of VIROXX E150++ function control maintenance cleaning and maintenance 7.1.1 maintenance schedule 7.1.2 cleaning opening of the VIROXX E150++...
  • Page 4 overview front side 4 air outlet 3 control panel 1 castor 2 air inlet back side 6 maintenance door 5 power supply and fuse...
  • Page 5 control panel 11 air quality level 10 ionization regulator 7 fan regulator 9 operation time meter 8 power switch device description of the VIROXX E150++ purpose of use The VIROXX E150 ++ air purifier inactivates germs like viruses, bacte- ria’s, moulds and yeasts and abates airborne pollutants and particles as well as odours of the indoor air.

  • Page 6: Functional Description

    1.2 functional description These chapter describes the main technical basics of the working function of VIROXX E150++. The patented VIROXX-Technology guarantees that, dangerous airborne contaminants and microorganisms are inactivated and particles are abated effectively. pic. 1: VIROXX working function 1. step: prefiltration A fine filter, installed at the entrance of the system (2), removes dust particles from the incoming air.

  • Page 7: Safety Instructions

    VIROXX E150++. Do not throw or push the unit and don’t positioning it close to heat sources or isolation directly. bioclimatic assumes no guarantee for damage, which results from neglect of this manual or from not intended use of the unit.

  • Page 8: Technical Data

    Technical Data Room volume ca. 150 m³ Dimensions ca. 710/335/815 mm (W x H x D) weight ca. 45 kg Ambient temperature operation +5 to + 40 °C storage 0 to + 50 °C relative humidity max. 85 % Power supply 230 V AC / 50Hz Power consumption (max.) ca.
  • Page 9 Safety instructions Caution, high voltage! Electrical danger! Unplug the mains plug before working on the unit or moving it. Respectively all poles of the the device must be disconnected from the mains! Warning Only qualified staff may work on the device! All works concerning mounting, start-up and maintenance must be carried out by qualified staff only.

  • Page 10: Operation

    operation switch-on and off The operation panel (3) of the VIROXX E150 ++ is located on the side of the unit. In order to put the VIROXX E150++ into operation press the power switch (8). The orange power control lamp (8) shines continuously. The unit is now in operation and works continuously.
  • Page 11 fan regulator (7): The flow rate of the unit could be adjusted in 4 steps by use of the fan regulator (7). ionization regulator (10): The output of activated oxygen could be adjusted in 8 steps by use of the ionization regulator (10). The sensor will regulate the ionisation from step “1”...

  • Page 12: Function Control

    function control The maintenance and function control jobs need to be done by qualified personnel only! 4.000 hours of operation after commissioning, after every mainte- nance and quarterly check the function of the unit. Press the power switch (7) to turn on the VIROXX E150++ The red power control lamp (7) is shining.

  • Page 13: Maintenance

    maintenance cleaning and maintenance The maintenance jobs need to be done by qualified personnel of your specialist dealer only. For every maintenance job pull the plug. Caution, in case the unit is not separated from power and still switched on, there is a high voltage charge (up to 3,0 kV) at the ionization tube.
  • Page 14 3 to 6 months contact specialist dealer filter Spare parts could be purchased and disposed by bioclimatic respec- tively. 7.1.2 cleaning Clean the unit from time to time with a damp cloth. opening of the VIROXX E150++ For every maintenance job pull the plug.
  • Page 15 12 micro filter 14 fan 13 electronic 15 catalyst pic. 3.2.2 control and exchange of the catalyst To check if the catalyst is damaged or contaminated with impurities please open the unit (see chapter). Pull the two levers which fix the catalyst and the high efficiency micro filter (see.
  • Page 16 pic. 3.2.4 Now the catalyst can be pulled out (see pic. 3.2.4). In case of the catalyst is polluted with impurities exchange the catalyst. By insertion of the catalyst, please take care, that the seal at the rear side of the catalyst would not be damaged. Afterwards assemble the unit in reverse order.
  • Page 17 For the cleaning of the ionization tubes, take them from the socket by turning anti clockwise. During this procedure you need to lift the contact spring. For cleaning of the ionization tubes please follow the next steps: • Remove outer mesh from the tube carefully. If the mesh sticks to the tube, take them into both hands and move hands in opposite direc- tion.
  • Page 18 To clean the UV-lamp use a damp cloth and dry them afterwards sufficient. Afterwards assemble the UV-lamp in reverse order. control and exchange of the prefilter The prefilter is integrated into the air inlet. Then check the prefilter of impurities or damages removes the grid of the air inlet. 7.7 exchange of the fuse You will find the fuse of the VIROXX E150++ in the power supply at the backside of the unit.

  • Page 19: Malfunctions And Trouble Shooting

    / change the fuse disposal For the appropriated disposal of the VIROXX E150 ++ please contact your specialist dealer of bioclimatic.

  • Page 20: Scope Of Delivery

    1 x UV-lamp type 430/A 1 x catalyst 1 x prefilter 1 x high performance micro filter 1 x instruction manual spare parts The following spare parts could be sourced by bioclimatic. parts.: spare part name IRF- ionization tube UV-lamp prefilter...

  • Page 21: Technical Specifications

    technical specifications VIROXX E150++ dimensions L / W / H approx. 710 / 335 / 815 mm weight approx. 45 kg ambient air temperature - operation + 5 to + 40 °C - storage 0 to + 50 °C relative air humidity max.

  • Page 22: Guarantee Bond

    Please send the VIROXX E150++ with an exact defect description to your specialist dealer or to the manufacturer directly.

  • Page 23: Ec Declaration Of Conformity
