Vislink M55-ML3-QSG Quick Start Manual

Quick Start Guide
ML3 HD COFDM Wireless Transmitter®
1. Overview - This document contains setup instructions and use of the
Microlite 3 Transmitter. Refer to the user manual for more detailed technical
information.
2.

Transmitter set-up

•
Remove Microlite 3 Transmitter (ML3T) from the case. Mounting bracket
and Hot Shoe mount are a part of this kit. Attach assembly to the camera.
•
Connect the video source to the HDMI/SDI Input (DIN) using appropriate cable
provided.
•
Connect the TX antenna (small omnidirectional) to the RF output (SMA).
•
Connect the power source to the MLT using the supplied Lemo to P-tap cable.
•
Select the desired Channel using the toggle button.
•
Hi/Low/Stdby can be selected using the toggle button to control the power
output level

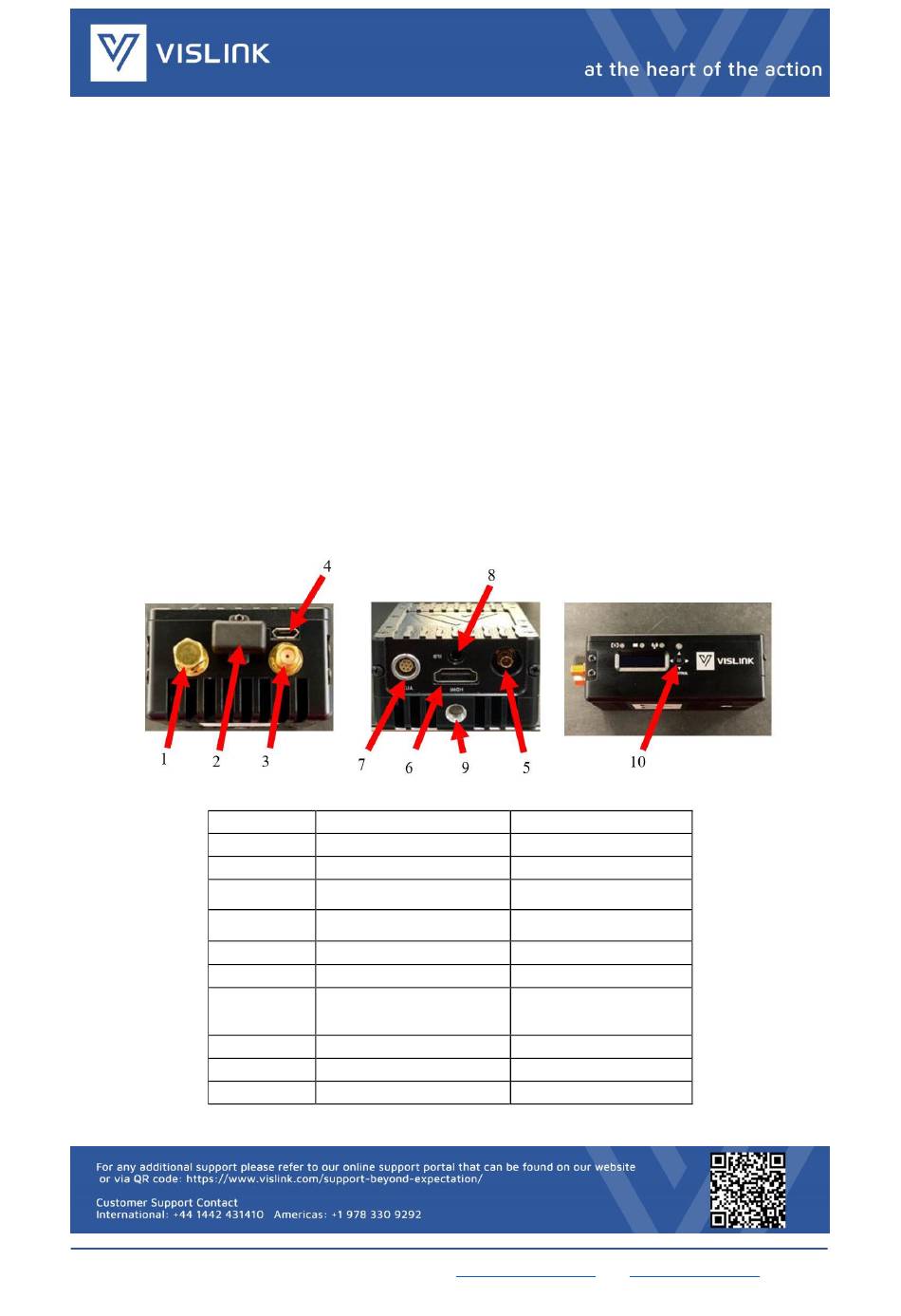

Reference
T: +1 908 852 3700
Description
1 900 MHz RF
2 Wi-Fi Output
3 RF Output
4
Program/Remote
Control
5 SDI Video Input
6 HDMI Video Input
7 External Control Data /
Power Connector
8 Audio Output
9 Mounting hole
10 Toggle Button
T: +44 1442 431300
Vislink is a company of Vislink Technologies, Inc.
.
Type
SMA Female
Embedded
SMA-Female
Micro USB
DIN Connector
HDMI
7 Pin Lemo
Female Audio Jack
¼" thread
Toggle
E: sales@vislink.com W:
M55-ML3-QSG, Rev B
