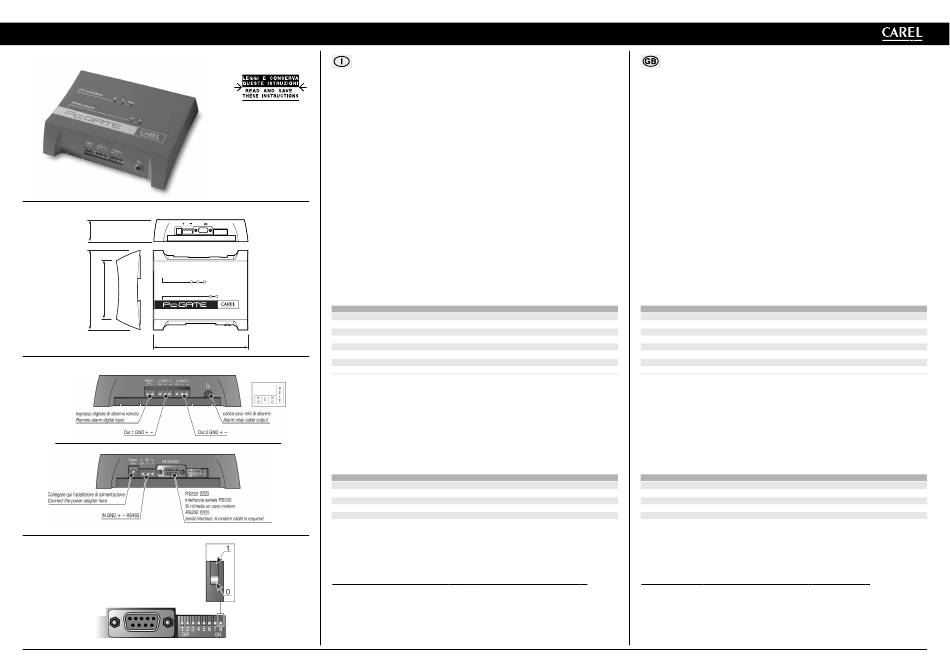

cod. +050000880 - rel.1.1 - 30/09/2003
CVSTD00000:
Pc-GATE - Convertitore seriale RS232/RS485 / Pc-GATE - Serial converter RS232/RS485
Dimensioni / Dimensions
Power
IN
RS 232
12Vac
GND
C connections
Rx
Tx
RS485 network
152
Connessioni / Connections
Configurazione / Configurations
Vi ringraziamo della scelta fatta, sicuri che sarete soddisfatti del vostro acquisto.
Il Pc-GATE Carel è un dispositivo elettronico che permette di:
- collegare di tutti i controllori Carel di una rete RS485 ad una seriale PC RS232;
- sdoppiare la linea RS485;
- amplificare/rigenerare il segnale su un tratto di linea RS485.
Pc-GATE gestisce al massimo 200 dispositivi in rete.
Convertitore RS232 - RS485
Pc-GATE converte il protocollo RS232C in RS485 Carel senza utilizzare particolari driver per Windows.
la tipica configurazione che è prevista per questa funzionalità è riportata in fig. 5.
Con un solo Pc-GATE si ottiene anche la possibilità di avere due linee RS485 separate.
Funzionalità chiave di protezione
Tutti i Pc-GATE, eccetto il modello CVSTD00000, sono dotati della funzione di protezione del software che abilita
l'esecuzione del programma di supervisione sul PC cui è collegato.
Funzionalità di watchdog
Il Pc-GATE analizza la struttura dei pacchetti che passano verificandone la coerenza e la compatibilità con il protocollo
Carel. Segnala l'assenza di comunicazione o un errore persistente con una uscita di allarme che può essere temporizzata
con tempo programmabile o permanentemente eccitata. Si esce dalla situazione di errore se viene ristabilita la
comunicazione corretta.
Derivatore RS485
Pc-GATE instrada i pacchetti della comunicazione in modo automatico dalla linea IN verso le linee OUT1 e OUT2.
La configurazione tipica è riportata in fig. 5.
Gli indirizzi delle macchine nei lati OUT1, OUT2 possono assumere qualsiasi valore. Si possono mettere in cascata al
massimo 2 Pc-GATE. La linea IN viene optoisolata e rigenerata nelle due linee OUT1 e OUT2.
Power
Le due linee OUT non sono tra loro optoisolate.
Rx
Tx
Configurazione
DIP
1
2
3
4
Fig. 1
5
6
7
8
ADR2/1/0 devono essere a 0; da definire, per usi futuri.
Impostazioni di default
I parametri di default sono:
• Tutti i dip a ON verso il basso;
• baude rate: 19200;
• modo comunicazione: N,8,2;
• time-out mancanza comunicazione: 20 min;
• tempo di chiusura relè in caso di allarme: 10 s.
Interfaccia utente
Prevede 4 LED rossi e 1 verde sul lato superiore.
LED
power (verde)
Rx net (rosso)
Tx net (rosso)
Rx PC (rosso)
Tx PC (rosso)
Fig. 2
Caratteristiche Tecniche
Alimentazione: Esterna 12 Vac -15%...+10%, 50/60 Hz
Ratings relè: 2(2) A/250 Vac
UL: 2A 250 Vac
Ingresso digitale di allarme da contatto pulito normalmente chiuso per attivazione dell'allarme da remoto.
Corrente del contatto >20 mA
Collegare il cavo di alimentazione del Pc-GATE prima di averlo connesso all'alimentazione della rete elettrica.
Installazione
• Installazione su tavolo:
tramite presa AC mini, ø5 mm. Utilizzare ESCLUSIVAMENTE l'apposito adattatore di alimentazione fornito da Carel.
L'utilizzo di adattatori diversi può provocare danni all'hardware.
Fig. 3
ON
OFF
19200 b/s
9600 b/s
Non usato
Non usato
Non usato
Non usato
Non usato
Non usato
Non usato
Non usato
ADR2 peso 0
ADR2 peso 4
ADR1 peso 0
ADR1 peso 2
ADR0 peso 0
ADR0 peso 1
SPENTO
ACCESO
non alimentato
alimentato
Dato Rx = 0
Dato Rx = 1
Dato Tx = 0
Dato Tx = 1
Dato Rx = 0
Dato Rx = 1
Dato Tx = 0
Dato Tx = 1
Thank you for your choice. We trust you will be satisfied with your purchase.

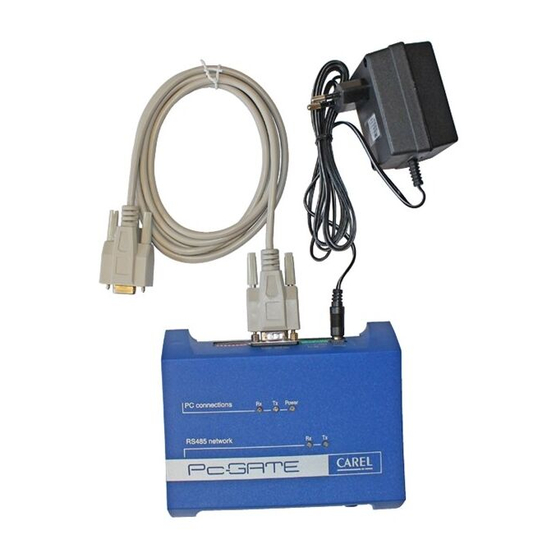

The Carel Pc-GATE is an electronic device for:
- connecting all Carel controllers in an RS485 network to a RS232 serial port on a PC;
- doubling the RS485 line;
- amplifying/regenerating the signal in a section of the RS485 line.
The Pc-GATE manages a maximum of 200 network devices.
RS232 - RS485 converter
The Pc-GATE converts the RS232C protocol to Carel RS485 without requiring special drivers for Windows.
The typical configuration used for this function is shown in fig. 5.
One Pc-GATE can be used to run two separate RS485 lines.
Protection key function
All versions of the Pc-GATE, with the exception of model CVSTD00000, feature a software protection function, which ena-
bles the supervisor program on the PC it is connected to.
Watchdog function
The Pc-GATE analyses the structure of the packets transmitted, checking its coherence and compatibility with the Carel
protocol. If there is no communication, or there is a persistent error, it signals this event via an alarm output, which may be
activated for a set time or permanently energised. The error status is reset when correct communication resumes.
RS485 shunt
The Pc-GATE sends the data packets automatically from the IN line to the OUT1 and OUT2 lines.
The typical configuration is shown in fig.5.
The units connected to OUT1, OUT2 can have any address. Up to 2 Pc-GATEs can be connected in a cascading configu-
ration. The IN line is optically-isolated and regenerated on lines OUT1 and OUT2 .
The two OUT lines are not optically-isolated between each other.
Configuration
DIP
ON
1
19200 b/s
2
Not used
3
Not used
4
Not used
5
Not used
6
ADR2 weight 0
7
ADR1 weight 0
8
ADR0 weight 0
ADR2,1,0 must be 0; to be defined or future uses.
The address 200 disables the function for setting the address of the converter.
Default settings
The default parameter settings are:
• All dipswitches at ON, down;
• baudrate: 19200;
• communication mode: N,8,2 ;
• no communication timeout: 20 min;
• relay closing time in the event of alarms: 10 s.
User interface
Features 4 red LEDs on the top upper.
LED
OFF
power (green)
OFF
Rx net (red)
Data Rx = 0
Tx net (red)
Data Tx = 0
Rx PC (red)
Data Rx = 0
Tx PC (red)
Data Tx = 0
Technical specifications
Power supply: External 12 Vac -15%...+10%, 50/60 Hz
Ratings relè: 2(2) A/250 Vac
UL: 2A 250 Vac
Alarm digital input from voltage free contact normally closed for remote alarm activation.
Contact current >20 mA.
Connect the Pc-GATE power supply cable before connecting it to the power supply of the network.
Installations
• Desktop installation:
AC mini jack, dia. 5 mm. ONLY use the special power supply adapter supplied by Carel upon request. The use of other
adapters may damage the hardware.
OFF
9600 b/s
Not used
Not used
Not used
Not used
ADR2 weight 4
ADR1 weight 2
ADR0 weight 1
ON
ON
Data Rx = 1
Data Tx = 1
Data Rx = 1
Data Tx = 1
