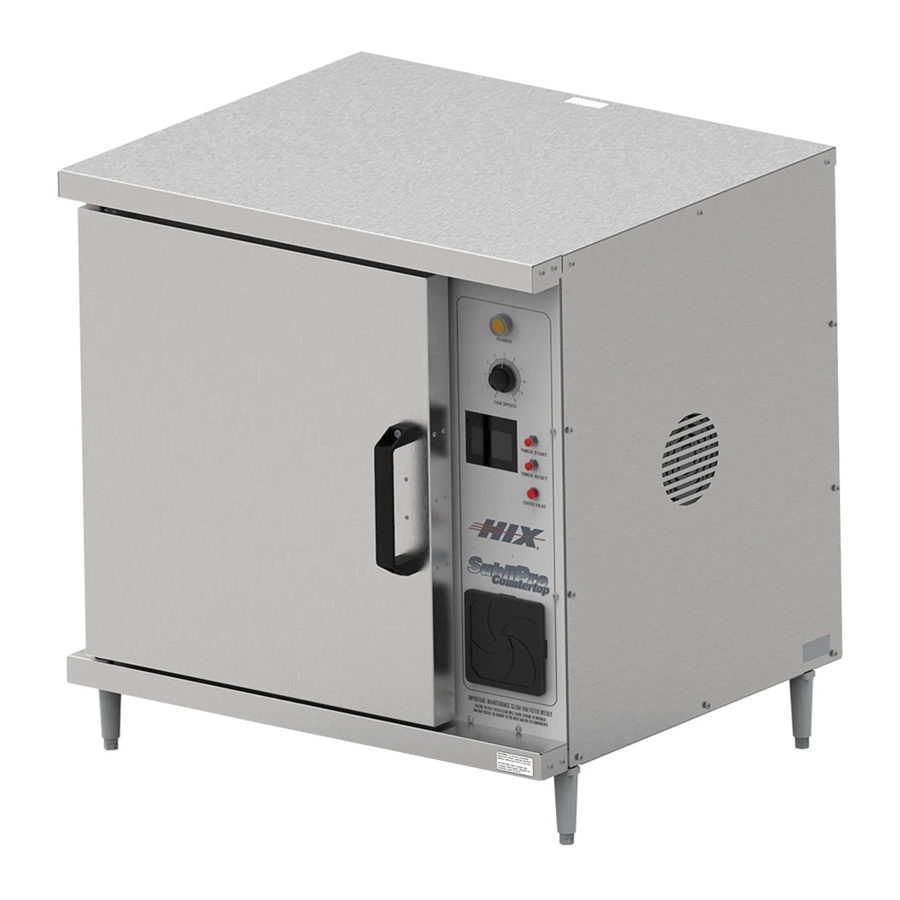

Hix SubliPro-Ct Owner's Manual

Electric countertop convection oven
Hide thumbs
Table of Contents

Advertisement

Quick Links

SubliPro-Ct
Electric Countertop Convection Oven
OWNER'S MANUAL
Installation, Operation and Care of HIX SubliPro-Ct
For Customer Service, Call 1-800-835-0606
or Visit www.hixcorp.com
Contents
Introduction ..................................................................................................................... 2
General Information ........................................................................................................ 3
Unpacking And Placement .............................................................................................. 4
Installation ...................................................................................................................... 5
Control Panel ................................................................................................................... 6
Preparation ...................................................................................................................... 7
Home Screen................................................................................................................... 8
Time & Temp. Adjustment ................................................................................................ 9
Settings.......................................................................................................................... 10
Preset Settings ...............................................................................................................11
Preset Storage............................................................................................................... 12
Cycle Count ................................................................................................................... 13
Preferences ................................................................................................................... 14
Operation ....................................................................................................................... 15
Cleaning & Maintenance ............................................................................................... 16
HIX Mug Wraps ............................................................................................................. 17
Using HIX Mug Wraps ................................................................................................... 18
Warranty ....................................................................................................................... 20
BEFORE warranty repair you MUST get Prior Authorization:
10623 RV C_20201007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SubliPro-Ct and is the answer not in the manual?

Questions and answers

Related Manuals for Hix SubliPro-Ct

Summary of Contents for Hix SubliPro-Ct

  • Page 1: Table Of Contents

    SubliPro-Ct Electric Countertop Convection Oven OWNER’S MANUAL Installation, Operation and Care of HIX SubliPro-Ct For Customer Service, Call 1-800-835-0606 or Visit www.hixcorp.com Contents Introduction ........................2 General Information ......................3 Unpacking And Placement ....................4 Installation ........................5 Control Panel ........................6 Preparation ........................

  • Page 2: Introduction

    INTRODUCTION KEEP THIS MANUAL FOR FUTURE REFERENCE Congratulation on the purchase of your Countertop SubliPro-Ct sublimation oven! Sublimation is defined as the process of change from a solid to a gas state without passing through a liquid phase. When heated, sublimation dyes bind permanently with the molecules of the substrate.

  • Page 3: General Information

    GENERAL INFORMATION The SubliPro-Ct Electric Convection Oven is a single cavity oven and features a solid state thermostat, digital timer, variable-speed 1/6 HP (0.124 KW) electric motor and three racks as standard equipment. Each oven is provided with a standard 208 or 240 volt, 60 Hz., and 1- or 3-phase electrical service.

  • Page 4: Unpacking And Placement

    If the supply and equipment requirements do not agree, do not proceed with installation. Contact your HIX customer service representative immediately. UNPACKING This oven was inspected before leaving the factory. The transportation company assumes full responsibility for safe delivery upon acceptance of the shipment.

  • Page 5: Installation

    INSTALLATION ATTACHING LEGS The included legs must be installed on the SubliPro-Ct oven to provide sufficient air circulation for the bottom of the oven. The legs screw into the four threaded inserts located in the corners on the underside of the oven. Screw one leg into each insert.

  • Page 6: Control Panel

    CONTROL PANEL ⚠ WARNING THE OVEN AND ITS PARTS ARE HOT. USE CARE WHEN OPERATING, CLEANING OR SERVICING THE OVEN. CONTROLS (Fig. 3) FAN SPEED CONTROL — POWER Adjusts air velocity in the oven. Turn the BUTTON dial to adjust the fan speed and increase or decrease the air circulation inside the oven chamber.

  • Page 7: Preparation

    Trust only equipment that provide all 3 parameters in a controllable and uniform way. HIX equipment is designed to provide these parameters within very narrow tolerances, which is critical for success.

  • Page 8: Home Screen

    HOME SCREEN 1. Turn on the machine by pressing in the POWER BUTTON Startup/Splash screen is displayed as the controller boots up. Note: The current program number and the software revision of the control- ler are displayed at startup. (The default settings are program number P 19 software revision RV 1.0) Startup/Splash Screen After boot up, the home screen is displayed showing the current heat platen...

  • Page 9: Time & Temp. Adjustment

    TIME & TEMP . ADJUSTMENT ADJUST TEMPERATURE: TEMPERATURE ADJUSTMENT SCREEN UP ARROW TEMPERATURE READOUT/SETTING DOWN ARROW 1. Touch the temperature readout on the display. “UP” ▲ and “DOWN” ▼ arrows will appear on the right side of the display and the temperature value will start flashing and to indicate it is in set mode.

  • Page 10: Settings

    SETTINGS SETTINGS: 1. Press the “?” on the upper right corner of the display on the Home Menu Screen to access the settings menu. 2. Press the settings sub menu title to be adjusted. SHUTDOWN TIMEOUT The shutdown feature shuts off the heat to the press after a period of in- activity.

  • Page 11: Preset Settings

    PRESET SETTINGS PRESET QUANTITY Temperature presets can be stored in the memory for different trans- fer settings. By default two presets are displayed. This setting can be adjusted to display four presets. PRESET QUANTITY DISPLAYED PREFERENCE SCREEN TWO PRESETS DISPLAYED FOUR PRESETS DISPLAYED SAVE SETTINGS...

  • Page 12: Preset Storage

    PRESET STORAGE STORING PRESETS: NOTE: The factory default settings for all presets is set to 200°F and 10 seconds. HOME MENU SCREEN PRESET LOCATIONS TEMPERATURE SETTING TIME SETTING 1. Set the desired temperature and/or cycle time using the temperature and time adjustment instructions in this document. 2.

  • Page 13: Cycle Count

    CYCLE COUNT CYCLE COUNT The cycle count feature counts the number of cycles that the machine has undergone. A cycle is counted every time the countdown timer is activated by closing the press. NOTE: The cycle count will maintain the total count even if the power has been turned off.

  • Page 14: Preferences

    PREFERENCES TIME SCALE The time scale setting adjusts how the time is displayed on the home screen. There are three Time Scale display options available in the Time Scale menu: • MIN:SEC (Factory Default) • SEC (Seconds) • 1/10 SEC (1/10 Second Resolution) TIME MODE PREFERENCE SCREEN UP ARROW TIME SCALE...

  • Page 15: Operation

    Switch to the OFF position and clean the oven. OPERATING HINTS When using the SubliPro-Ct oven for the first time with a new substrate, check the sublimation quality before sublimating a batch of products to make sure the sublimation results meet your quality standards.

  • Page 16: Cleaning & Maintenance

    The door hinges and mechanism require occasional lubrication with mineral oil. SERVICE AND PARTS INFORMATION To obtain service and parts information concerning this model, contact the HIX Customer Service Department. When calling for service, the following information must be available: model number,...

  • Page 17: Hix Mug Wraps

    Traditional mug presses combine both compression and heating in one device. The advantage of the HIX Mug Wrap is that it separates these two actions: the wrap provides the pressure, while your Countertop SubliPro Oven provides the heat.

  • Page 18: Using Hix Mug Wraps

    USING HIX MUG WRAPS ⚠ CAUTION: MUG(S) and MUG WRAP(S) ARE HOT AFTER HEATING. AL- WAYS WEAR PROTECTIVE GLOVE OR OVEN MITTS. KEEPS CHILDREN AWAY FROM HOT/SHARP MATERIALS. 1. TRIM TRANSFER: Before applying, trim the transfer so that there is no excess paper above or below the mug.
  • Page 19 USING HIX MUG WRAPS 5. REMOVE AND COOL: NOTE: If you are not using a HIX Mug Oven with a Cooler then you will need to wear heat protective gloves to handle the finished wraps and mugs. Tip: Position any excess wrap forwards the bottom of the mug.

  • Page 20: Warranty

    In the event of a defect, HIX, at its option, will repair, replace or substitute the defective item at no cost during this warranty period subject to the limitations of insurance and shipping costs stated below (excludes labor).
