Thank you for purchasing the Kamome FKLS-231D. Before use, be
sure to carefully read this information on safety to ensure that you
use this product correctly. After reading this manual, keep it in a safe
place for future reference.
kamomefan̲FKLS-231D̲En.indd   1
kamomefan̲FKLS-231D̲En.indd   1
Kamome FKLS-231D
User's Manual
FKLS-231D
English
2019/12/25   19:12:23
2019/12/25   19:12:23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kamome FKLS-231D and is the answer not in the manual?

Questions and answers

Related Manuals for DOSHISHA Kamome FKLS-231D

Summary of Contents for DOSHISHA Kamome FKLS-231D

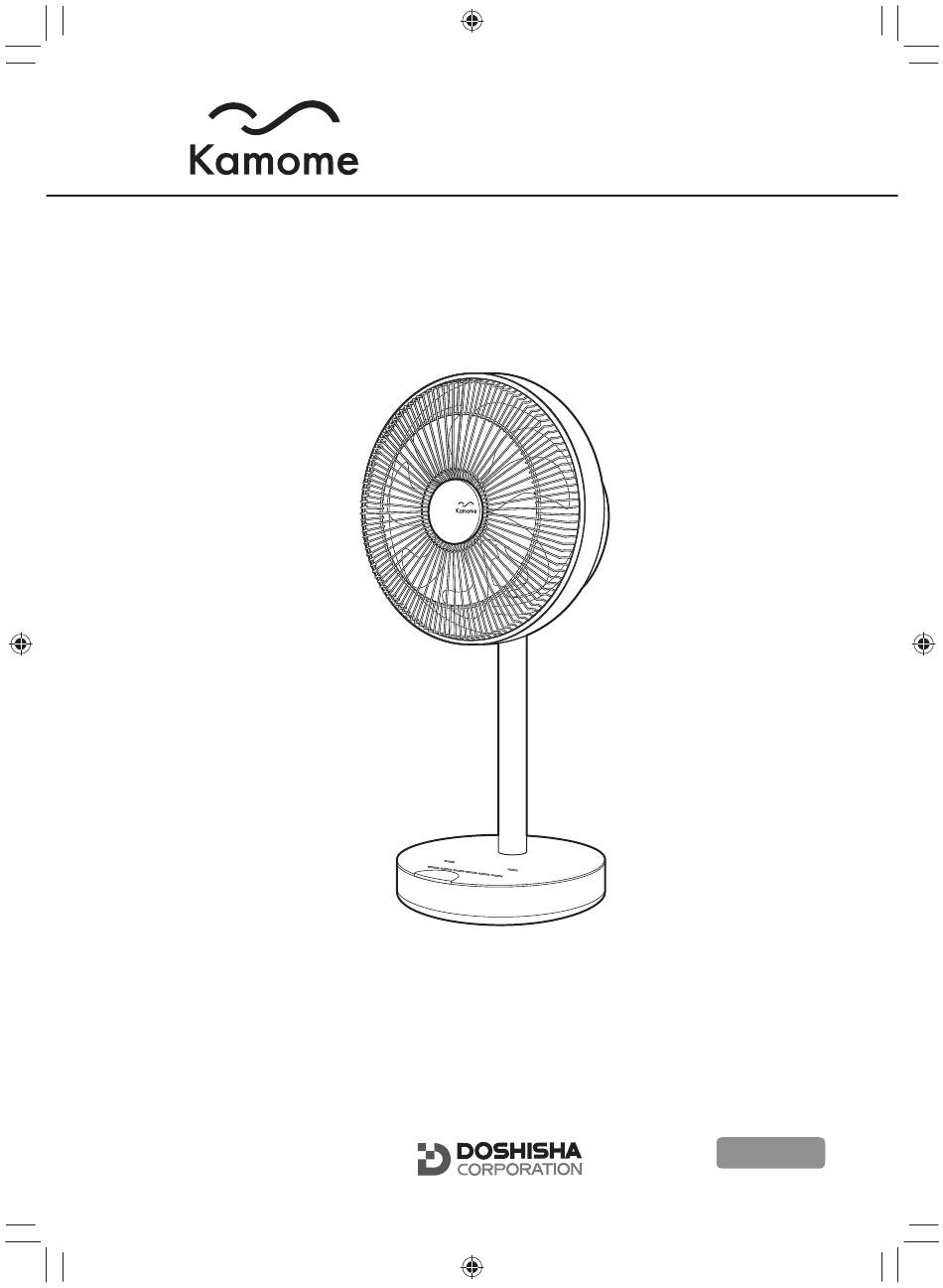

  • Page 1 FKLS-231D Kamome FKLS-231D User’s Manual Thank you for purchasing the Kamome FKLS-231D. Before use, be sure to carefully read this information on safety to ensure that you use this product correctly. After reading this manual, keep it in a safe place for future reference.
  • Page 2 English Safety Information This section presents important safety information. Always follow these instructions when using the product. IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: Read all instructions before using this product.
  • Page 3 English • Do not allow children to use this product by themselves, and keep the product and power cords out of the reach of small children. • Do not plug in or unplug the product while your hands are wet. •...

  • Page 4: Names Of Parts And Their Functions

    English Names of Parts and Their Functions Front Front grille Blades Head Moves up and down during swing operation Center mark shell (aroma circle disk) Main unit Pole Rotates left and right with the head during swing operation. Control panel Base Remote control receiver Rear...

  • Page 5: Remote Control

    English Control panel of main unit Remote control ⑩ ⑦ ⑧ ⑧ ③ ② ⑦ ① ② ③ ④ ⑤ ⑥ ① ④ ⑤ ⑥ ⑨ （ ） Air volume indicator Indicates the air volume; when the air volume increases, the lamp turns on from left to right.

  • Page 6: Preparation Before Use

    English Correct Use of the Fan Accessories included in box After purchasing, please confirm that the items below are included in the box. Main unit .....................1 Dedicated AC adapter ................1 Remote Control ...................1 Coin lithium battery (CR2025, included in separate plastic bag) ...1 Replacement felt (1 inserted in aroma circle disk) .........4 Manual (including Warranty Card) ............1 * Keep the packaging box to store the product after use.

  • Page 7: Start/Stop Operation

    English 3. Connect the dedicated AC adapter Cable hook Cable hook DC cord DC jack DC plug 1 Please insert the DC plug of the AC adapter into the DC jack on the back of the base. 2 Be sure to hook the DC cord into the cable hook so that it does not become disconnected easily.
  • Page 8 English 2. Adjusting the air volume To adjust the Air Volume setting during operation, press the Air Volume +/Strong button or the Air Volume –/Weak button of the main unit or the remote control. Air Volume Indicator Weak Strong Example: ⬆Current air volume Air Volume –/Weak button Air Volume +/Strong button Remote control...
  • Page 9 English About Natural Wind/Sleep Wind Natural Wind (lamp lights up white) Sleep Wind (lamp lights up blue) Making the air volume stronger and weaker over time can reproduce the feeling of a natural wind. Press the Air Volume +/Strong button or the Air Volume –/Weak button on the main unit or the remote control to adjust the volume of the wind, and the air volume pattern will change accordingly.
  • Page 10 English Adjusting the angle While holding the upper part of the pole, push the top or bottom part of the front grille and slowly tilt it upward or downward. When you manually change the angle up or down and then press the Up/Down Swing button, it takes some time before the Up/Down Swing function begins.
  • Page 11 English 6. Stop operation During operation, press the power button on the main unit or remote control to stop operation. Function to prevent accidentally leaving the power on: Operation stops automatically when 12 hours have passed since the last time a button was pressed on the main unit or the remote control.

  • Page 12: Off Timer Setting

    English Timer Settings: Off Timer Setting When the Off Timer is set, the fan will automatically stop running after the set time has passed. 1. Press the Timer button when fan is on to set the Off Timer When you press the Timer button when fan is on, the Timer lamp will light up red, and the Off Timer is enabled.
  • Page 13 English 2. Set the air volume, etc. for operation at the set time Press the Air Volume +/Strong button or the Air Volume −/Weak button to set the air volume for when the fan operates at the set time. The Air Volume Indicator lamp blinks.
  • Page 14 English 2. Take off the felt cover, and soak aroma oil into the felt tab in the center mark shell (aroma circle disk). Rotate the felt cover to the left to pull it off of the center mark shell (aroma circle disk), and make sure that the felt tab is installed.
  • Page 15 English Felt tab replacement * If the aroma oil felt tab is dirty or a different aroma oil is used, replace the felt tab. * To replace the felt tab, turn the felt cover to the left, and then take out the felt tab.
  • Page 16 English Aroma oil/natural essential Oil • Keep it away from flames. • Keep it out of reach of children. • If oil has spilled on your clothing, rinse it with plenty of water and let it dry naturally. Do not use a dryer. •...

  • Page 17: Cleaning And Storage

    English Cleaning and Storage WARNING Always disconnect the AC adapter from the outlet during maintenance. CAUTION • Never use household cleaner, thinner, gasoline, alcohol, or abrasive powder. • Do not flush the main unit or AC adapter with water. (It may cause electric shock and device failure.) Maintenance When the main unit is dirty, soak a soft cloth in warm water or neutral detergent...

  • Page 18: Blade Maintenance

    English WARNING Do not operate without attaching the blades and the guard to the main unit. CAUTION • Firmly attach the guard and the blades to the main unit before inserting the power plug in the outlet. • Be careful to avoid injury from the edges of blades. Blade maintenance Disassemble the front grille before maintenance of the internal blades of the main unit.

  • Page 19: Storage Method

    English 5. Confirm that the notch of the front grille and the notch of the rear grille are aligned. There will be abnormal noise if the front grille is not locked. Storage Method • Fully dry it after maintenance. • Put it in a plastic bag, then put it in the packaging box, and store it in a dry place free of moisture.

  • Page 20: Troubleshooting

    English Troubleshooting WARNING This product can be disassembled and repaired by qualified repair technicians only. Please check if the product has any of the following symptoms before sending it for repair. Problem Primary Cause Solution Blades won’t turn • The blades are not Install blades and grilles properly as correctly installed.

  • Page 21: Specifications

    • Power cord, plug or AC adapter heats up abnormally. Please turn off the power, unplug • The power connects and then the power cord and contact the disconnects repeatedly. service department at Doshisha. • Buring smell. Specifications Product name Kamome Model...
  • Page 22 Imported and distributed by XXXX kamomefan̲FKLS-231D̲En.indd   22 kamomefan̲FKLS-231D̲En.indd   22 2019/12/25   19:12:24 2019/12/25   19:12:24...
