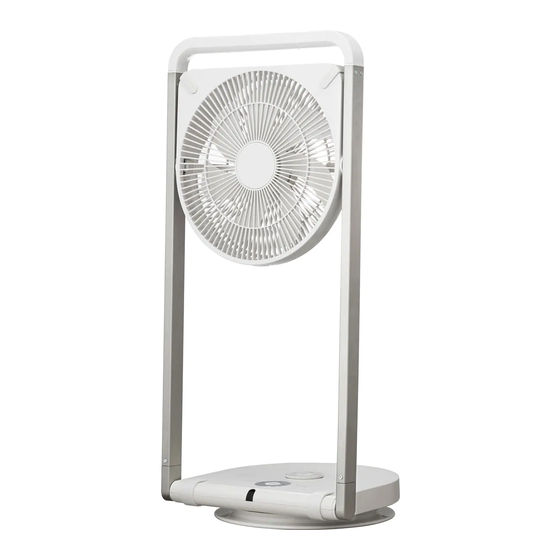

DC Folding Fan FLU-253DHK
Power supply
Power consumption
Voltage
Frequency
Cable length of AC adapter
Dimensions
Net Weight
Remote control battery
● The specifications are subject to change without prior notice.
● This unit is only intended to be sold in Hong Kong and Macau.
● The diagram and illustration in this manual are for reference only. The actual product is subject to
manufacturer specifications.
User Manual
Thank you very much for choosing our
product. Please read the User Manual
carefully in order to use this product correctly.
Please keep the User Manual properly after
reading.
[This product is for indoor use only]
Specifications
DC 24V, AC adapter (dedicated)
About 10W （when using a dedicated AC adapter）
220V
50 Hz
About 1.8m
Width 34 × depth 30 × height 75cm (when bracket unfolded)
About 4.6kg（excluding the remote control and AC adapter）
Lithium battery (CR2025)
DOSHISHA Co., Ltd.
Contents
Safety Precautions.........................................1
Name of Parts and Function...........................3
How to Use.....................................................5
Maintenance and Storage.............................11
Troubleshooting............................................13
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DOSHISHA FLU-253DHK
Summary of Contents for DOSHISHA FLU-253DHK
-
Page 1: Table Of Contents
DC Folding Fan FLU-253DHK User Manual Thank you very much for choosing our product. Please read the User Manual carefully in order to use this product correctly. Please keep the User Manual properly after reading. [This product is for indoor use only] Contents Safety Precautions.........1... -
Page 2: Safety Precautions
Safety Precautions Please read Safety Precautions carefully in order to ensure proper use Please read and abide by the critical safety information listed in this section carefully Please keep it properly after reading Warning Incorrect operation may cause a risk of death or serious injury Incorrect operation may cause personal injury or property damage Attention (including residence, family properties, livestock and pets) - Page 3 Attention When unplugging the AC adapter, Do not use a battery other than Do not get your hair too close to be sure to hold the AC adaptor specified. the device. instead of the power cord. It may cause liquid leakage. It may cause personal injuries due It may cause electric shock, short to hair being caught.
-
Page 4: Name Of Parts And Function
Name of Parts and Function Handle Air supply opening, front guard, air outlet (fan blades) Support frame Remote control storage position (drawn by magnet in the remote control) Operation panel Remote control signal receiver Base Natural (green)/sleep Operation panel Transmitting Remote control (red) wind indicator area... - Page 5 When the remote control isn’t used Put the remote control in the storage area when it is not in use. Remote control Remote control storage area Main unit ※ The remote control can’t be operated in storage area. Rear guard, air intake part Please pay special attention that the remote control has a magnet inside.
-
Page 6: How To Use
How To Use Packing List After purchase, please confirm if the following accessories are complete Main unit·······················································1pcs Coin lithium battery (CR2025)····························1pcs Remote control···············································1pcs User Manual···················································1pcs AC adapter····················································1pcs Warranty Card················································1pcs ※Do not throw away the packaging materials after assembly, which can be used to store the product after use. Do not turn on the power before the blades and guards are installed. - Page 7 ※ Do not stop midway when erecting the support frame. The support hasn’t been fully ● Do not stop before the support frame is erected fully erected. In this state, it may fall down It may cause accident or injury, and the easily and cause injury or support also may fall down.
- Page 8 How To Use (cont.) Natural (green)/sleep Operation panel Transmitting Remote control (red) wind indicator area Timer indicator Air volume indicator Swing indicator Operation buttons The functions are same as the buttons on the main unit and Running indicator the remote control. The current status can be confirmed by the indicator light Power button around the operation button.
- Page 9 3. Natural/sleep wind function The function can be switched by pressing the About natural/sleep wind function natural/sleep wind button on the main unit Natural wind (green indicator on) or the remote control. Adjust the air volume to reproduce the feeling of natural wind.
- Page 10 How To Use (cont.) Setting timer About the timer indicator Off timer setting Each time you press the timer button , the timer When off timer is set, the fan will automatically stop indicator will switch in sequence as follows. running after reaching the set time.
- Page 11 2. Setting running air volume when reaching the set time You can simply press the air volume button on the main unit or the remote control to set the running air volume at the set time. The air volume indicator also flashes.
-
Page 12: Maintenance And Storage
Maintenance and Storage Before cleaning or maintenance, be sure to unplug the AC adapter from the power socket. It may cause electric shock, fire, or injury. Warning Notice Internal cleaning and maintenance Never use household detergents or diluted solvents, Remove the front guard and the fan blade as described ●... - Page 13 Folding the support frame (minimizing) The unit can be folded (minimized) in a compact state when it is not in use. 1. Stop the operation with the fan blades facing the front, unplug the AC adapter from the power socket, and remove the DC plug from the main unit.
-
Page 14: Troubleshooting
Troubleshooting Warning Only qualified technicians are allowed to disassemble or repair the fan. Check according to the following table when you think it may have “failure”. Problem Cause Solution No power Insert the power plug into the power socket ● Power plug falls off the power socket ●...
