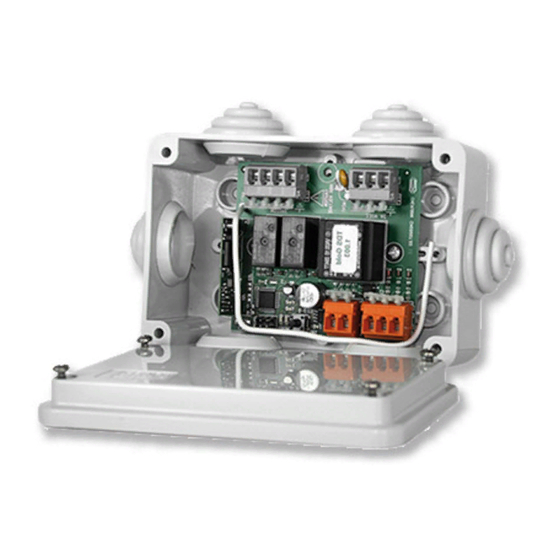

- Page 1 A510020 TDS GOLD CENTRALINA PER TENDE DA SOLE ELECTRONIC AWNING CONTROL UNIT FUNKEMPFÄNGER ZU MARKISEN RÉCEPTEUR POUR STORES CENTRALITA PARA TOLDOS ISTRUZIONI - INSTRUCTIONS - EINSTELLANLEITUNGEN INSTRUCTIONS - INSTRUCCIONES...
-
Page 3: Table Of Contents
Table of contents: Safety instructions ....................p. 22 Electrical connections ..................... p. 22 Compatible remote controls ................... p. 25 Key to symbols ....................... p. 26 Command sequences example ................p. 27 Function open/close programming remote control ..........p. 28-29 Setting the first remote control ................ -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS - Only professional technicians must perform installation, complying with all safety instructions, especially those regarding electrical connections. - To avoid short circuits, arrange an automatic bipolar switch with opening distance of the contacts of at least 3 mm before the circuit. ELECTRICAL CONNECTIONS RESET/AUX WINDTEC SC... - Page 5 WINDTEC - Ref. A520007 MISTRAL WINDTEC LUX - Ref. A520008 Ref. A520012 RUGIADA Ref. A520016 SKIPPER Series GIRO Series POP Series BROWN BLACK BLUE YELLOW-GREEN TDS GOLD - Ref. A510020...
- Page 6 SKIPPER Series GIRO Series POP Series WINDTEC SC Ref. A520010 BROWN BLACK BLUE YELLOW-GREEN TDS GOLD - Ref. A510020...
-
Page 7: Compatible Remote Controls
COMPATIBLE REMOTE CONTROLS GIRO GIRO Wall stop DOWN down STOP GIRO Lux GIRO P-Lux DISPLAY GIRO Plus DISPLAY Activating the Change channel DISPLAY Change Sun sensor channel Wind sensor Wind sensor is “ON” is “ON” Sun sensor is “ON” Sun sensor is “ON” Change Activating/ Deactivating the Sun sensor Deactivating the Sun sensor... -
Page 8: Key To Symbols
KEY TO SYMBOLS GIRO Down Press button A Skipper stop Press buttons A and B down at the same time press the short motor rotation DOWN button in one direction DOWN on the switch press the UP long motor rotation button on the in other direction switch... -
Page 9: Command Sequences Example
COMMAND SEQUENCES EXAMPLE Most of the command sequences have three distinct steps, at the end of which the motor indicates if the step has been concluded positively or not, by turning in different ways. This section is provided to demonstrate the motor indications. The buttons must be pressed as shown in the sequence, without taking more than 4 seconds between one step and the next. -
Page 10: Function Open/Close Programming Remote Control
FUNCTION OPEN/CLOSE PROGRAMMING REMOTE CONTROL SKIPPER PLUS - SKIPPER LUX - SKIPPER P-LUX REMOTE CONTROL POP PLUS - POP LUX - POP P-LUX To prevent accidental changes to the programming of the motor during the daily use of the remote control, the possibility of programming is disabled automatically 8 hours after sending the last sequence (A+B or B+C). - Page 11 FUNCTION OPEN/CLOSE PROGRAMMING REMOTE CONTROL SKIPPER - SERIES GIRO - REMOTE CONTROL POP To prevent accidental changes to the programming of the motor during the daily use of the remote control, the possibility of programming is disabled automatically 8 hours after sending the last sequence (A+B or B+C).
-
Page 12: Setting The First Remote Control
SETTING THE FIRST REMOTE CONTROL This operation can only be performed when the control unit is new, or after a total delete of the memory. During this step, power up only one control unit at time! T1: First remote control to be set T1 (2 sec) AUTOMATIC DISABLING OF THE FIRST REMOTE CONTROL SETTING FUNCTION... -
Page 13: Setting Of Additional Remote Controls
SETTING OF ADDITIONAL REMOTE CONTROLS Up to 15 remote controls can be set, including the light/wind sensor and the rain sensor. Tn: Already programmed remote control Tx: Additional remote control Tx (2 sec) REMOTE CONTROL MEMORY CLEARING It is possible to delete each memorized remote control individually. As the last one is deleted the control unit initial condition is restored. -
Page 14: Time-Out Setting
TIME-OUT SETTING Time-out is the time during which the control unit is active, that’s to say an opening or closing order is given. This time must always be longer than the opening-closing time of the device being controlled. The time-out ends after pressing the STOP button or also after the set value. -
Page 15: Compatible Devices
COMPATIBLE DEVICES MISTRAL SENSOR It detects movements caused by the wind on the awning arms. SET BUTTON SELECTOR MISTRAL- Ref. A520012 SETTING THE SENSOR To associate the sensor to the control unit, a remote control must be already memorized. Set the selector to the 0 position and then perform this sequence: 2 sec DELETING THE SENSOR To delete the sensor from the control unit, an already programmed remote control must... -
Page 16: Rugiada
RUGIADA (TX RAIN-SENSOR) Sensor element Set button Rugiada - Ref. A520016 Power Supply 230 Vac ANEMOMETERS Set button WINDTEC LUX - Ref. A520008 WINDTEC - Ref. A520007 Wind-speed tuning Sun-sensor tuning SETTING To associate the sensor to the control unit, a remote control must be already memorised. The setting sequence is the following: 2 sec DELETING... -
Page 17: Enable/Disable The Sun Sensor (Windtec Lux)
ENABLE / DISABLE THE SUN SENSOR (WindTec Lux) To enable (automatically) or disable (manually) the sun sensor refer to the instruction manual provided with the sensor or the remote control you want to use. TEST MODE (WINDTEC/WINDTEC LUX) This function is useful to check proper radio communications and to perform the wind and sun function test. -
Page 18: Wind Sensor Windtec Sc
WIND SENSOR WINDTEC SC WINDTEC SC - Ref. A520010 This kind of Wind-sensor must be wired to the control unit on the indicated terminals, without respecting the polarity. Exceeding the set level the control unit will automatically perform the command associated to UP ward function of the remote control. So check that the rotation direction will correctly match this function. -
Page 19: Switch
TEST FOR WIND-SENSOR (WINDTEC SC) This function is useful to check the correct connection to the control unit and the rotation direction in case of wind-alarm. Activate the TEST function, with the sequence B+C, C. The awning opens for 10 seconds and closes briefly to confirm that the test mode is activated. -
Page 20: Special Functions: Short-Term Setting Of A Remote Control
OPERATION Pressing one of the two buttons and releasing, the motor drives to the desired direction until it reaches the limits. To stop the motor STOP before reaching the limits press again the same button. If during the movement the other button is pressed motor changes the direction. -
Page 21: Technical Features
CARATTERISTICHE TECNICHE TECHNICAL FEATURES - Alimentazione 230 V / 50 Hz - Power supply 230 V / 50 Hz - Potenza assorbita - Power consumption - Frequenza radio 433,92 MHz - Radio frequency 433,92 MHz - Codifica Rolling code - Decoder system Rolling code - Modulazione AM/ASK... -
Page 22: Eu Declaration Of Conformity
Il testo completo della dichiarazione di conformità UE è disponibile facendone richiesta sul sito: www.cherubini.it. EU DECLARATION OF CONFORMITY CHERUBINI S.p.A. declares that the product is in conformity with the relevant Union harmonisation legislation: Directive 2014/53/EU, Directive 2011/65/EU. The full text of the EU declaration of conformity is available upon request at the following website: www.cherubini.it. - Page 24 CHERUBINI S.p.A. Via Adige 55 25081 Bedizzole (BS) - Italy Tel. +39 030 6872.039 | Fax +39 030 6872.040 info@cherubini.it | www.cherubini.it CHERUBINI Iberia S.L. Avda. Unión Europea 11-H Apdo. 283 - P. I. El Castillo 03630 Sax Alicante - Spain Tel.
