MODULO DI COMANDO E CENTRALIZZAZIONE
CONTROL AND CENTRALIZATION MODULE
STEUER- UND ZENTRALISIERUNGSMODUL
MODULE DE COMMANDE ET DE CENTRALISATION
MÓDULO DE MANDO Y CENTRALIZACIÓN
Serie - Series - Baureihe - Série - Serie
ISTRUZIONI - INSTRUCTIONS - EINSTELLANLEITUNGEN
PER TENDE DA SOLE
FOR AWNINGS
FÜR MARKISE
POUR STORES
PARA TOLDO
INSTRUCTIONS - INSTRUCCIONES
I
GB
D
F
E
BLUE BUS TDS
BLUE BUS TDS RX
Advertisement
Table of Contents
Related Manuals for CHERUBINI BLUE BUS TDS Series
Summary of Contents for CHERUBINI BLUE BUS TDS Series
- Page 1 MODULO DI COMANDO E CENTRALIZZAZIONE PER TENDE DA SOLE CONTROL AND CENTRALIZATION MODULE FOR AWNINGS STEUER- UND ZENTRALISIERUNGSMODUL FÜR MARKISE MODULE DE COMMANDE ET DE CENTRALISATION POUR STORES MÓDULO DE MANDO Y CENTRALIZACIÓN PARA TOLDO BLUE BUS TDS Serie - Series - Baureihe - Série - Serie BLUE BUS TDS RX ISTRUZIONI - INSTRUCTIONS - EINSTELLANLEITUNGEN INSTRUCTIONS - INSTRUCCIONES...
-
Page 3: Table Of Contents
- Rain sensor connection ......................p. 27 - Wired wind sensor connection (WindTec SC) ................p. 27 - Connection to the Cherubini 2-wire BUS ................... p. 27 - Blue Bus TDS module connection to motors with standard wiring ..........p. 28 - Blue Bus TDS module connection to white-wire motors ............ -
Page 4: Product Features

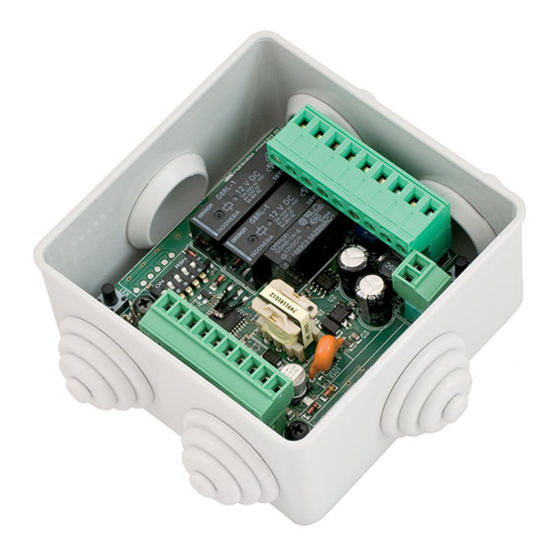

PRODUCT FEATURES The Blue Bus TDS control and centralisation module is indicated for the control of Cherubini mechanical and electronic motors intended for awnings applications. ELECTRICAL CONNECTIONS RESET/AUX MOTOR MOTORE CENTR CMD LOC CMD SENS IN SENS COM +12V SEQ IN SEQ OUT... -
Page 5: Rain Sensor Connection
RAIN SENSOR WIRED WIND SENSOR CONNECTION (WINDTEC SC) The wind-speed threshold may be set using the DSW1 Dip Switch. SENS IN SENS COM WINDTEC SC CONNECTION TO THE CHERUBINI 2-WIRE BUS SEQ OUT SEQ IN SEQ OUT SEQ IN SEQ OUT... -
Page 6: Blue Bus Tds Module Connection To Motors With Standard Wiring
Note: centralised control is transmitted from one Blue Bus TDS module to the other by the Cherubini 2-wire BUS. Maximum length of the wire from one card to the other Unshielded wire 10 m Shielded or twist wire 50 m... -
Page 7: Guarantee
GUARANTEE This product is guaranteed for 24 months from the date of manufacture indicated inside. If, during that period, the equipment does not work properly due to a defective component, it will be repaired or replaced at the discretion of the manufacturer. The warranty does not cover the integrity of the plastic container. -
Page 8: Key To Symbols
KEY TO SYMBOLS ON THE REMOTE CONTROL - short motor rotation in one direction Press button A down - long motor rotation in other direction Press buttons A and B at the same time - double short rotation ON THE CONTROL SWITCH LOC CMD LOC CMD LOC CMD... -
Page 9: Commands From A Remote Control (Blue Bus Tds Rx)
COMMANDS FROM A REMOTE CONTROL (BLUE BUS TDS RX) It is possible to control the Blue Bus TDS RX control unit by means of a Cherubini remote control. Follow the instructions shown in the following pages for programming. As far as all programming sequences are concerned, we recommend also consulting the remote control instruction leaflet. -
Page 10: Setting The First Remote Control (Blue Bus Tds Rx)
SETTING THE FIRST REMOTE CONTROL (BLUE BUS TDS RX) This operation can only be performed when the control unit is new, or after a total delete of the memory. During this step, power up only one control unit at time! T1: First remote control to be set T1 (2 sec) AUTOMATIC DISABLING OF THE FIRST... -
Page 11: Setting Of Additional Remote Controls (Blue Bus Tds Rx)
SETTING OF ADDITIONAL REMOTE CONTROLS Up to 15 remote controls can be set, including the light/wind sensor. Tn: Already programmed remote control Tx: Additional remote control Tx (2 sec) REMOTE CONTROL MEMORY CLEARING (BLUE BUS TDS RX) It is possible to delete each memorized remote control individually. As the last one is deleted the control unit initial condition is restored. -
Page 12: Wind- And Sun Sensor Windtec/Windtec Lux (Blue Bus Tds Rx)
WIND- AND SUN SENSOR WINDTEC/WINDTEC LUX (BLUE BUS TDS RX) Set button WINDTEC* - Ref. A520007 WINDTEC LUX* - Ref. A520008 Wind-speed tuning Sun-sensor tuning SETTING THE WIND SENSOR To associate the sensor to the control unit, a remote control must be already memorized. The setting sequence is the following: 2 sec DELETING THE WIND SENSOR... -
Page 13: Enable / Disable The Sun Sensor (Windtec Lux)
ENABLE / DISABLE THE SUN SENSOR (WINDTEC LUX) To enable (automatically) or disable (manually) the sun sensor, a remote control with Sun/Wind function must be used. Briefly press the SEL button: the remote control shows the existing status (see symbols). To change the setting press the SEL button again for about 2 seconds until the motor responds with a confirmation sequence. -
Page 14: Wind Sensor Windtec Sc (Blue Bus Tds - Blue Bus Tds Rx)
WIND SENSOR WINDTEC SC (BLUE BUS TDS - BLUE BUS TDS RX) WINDTEC SC - Ref. A520010 This kind of Wind-sensor must be wired to the control unit on the indicated terminals, without respecting the polarity. Exceeding the set level the control unit will automatically perform the command associated to the UP button of the remote control. -
Page 15: Mistral Sensor (Blue Bus Tds Rx)
MISTRAL SENSOR (BLUE BUS TDS RX) It detects movements caused by the wind on the awning arms and also any accumulation of water or snow on the fabric. SET BUTTON SELECTOR MISTRAL*- Ref. A520012 SETTING THE MISTRAL SENSOR To associate the sensor to the control unit, a remote control must be already memorized. Set the selector to the 0 position and then perform this sequence: 2 sec DELETING THE MISTRAL SENSOR... -
Page 16: Rain Sensor (Blue Bus Tds - Blue Bus Tds Rx)
RAIN SENSOR (BLUE BUS TDS - BLUE BUS TDS RX) Sensor element RAIN SENSOR - Ref. A520017 SPECIAL FUNCTIONS (BLUE BUS TDS RX) SHORT-TERM SETTING OF A REMOTE CONTROL This function makes it possible to store a remote control temporarily, for example, with the purpose of setting the limit switches during assembly in the factory. -
Page 17: Configuration Of The Blue Bus Tds Module
CONFIGURATION OF THE BLUE BUS TDS MODULE The Dip Switch present on the module makes it possible to configure some functions. Configurating the local command Motor command “dead man” The motor operates in the “dead man” mode. This means that it moves as long as one of the LOC CMD push buttons is kept pressed. -
Page 18: Commands From The Control Switch
Rain sensor active: closing the (NO) switch causes the Dip Switch 3 ON ascent of the awning; the next opening of the switch 4 OFF causes the descent of the awning. 5 ON Rain sensor active: closing the (NO) switch causes the Dip Switch 3 ON descent of the awning;... -
Page 19: Operation Of Centralized Commands
Otherwise it is possible to centralize modules in a sequence using the CHERUBINI 2-wire BUS present on the J2 connector. Centralized commands are delayed by 1 second, have priority over local commands and can move the motor only UP or DOWN. -
Page 20: Special Commands (Using Modules A510008)
This operation mode is useful when one intends to use the Blue Bus TDS module to control one or more Cherubini A510008 expansion modules. The Blue Bus TDS module is equipped with a current sensor able to manage switching off the exits when the connected motor reaches the limit switch. -
Page 24: Centralization With A Blue Bus Tds Module And A510008 For Motors With Standard Wiring
SISTEMAS DE ACCIONAMIENTO PARA PROTECCIÓN SOLAR CHERUBINI S.p.A. 25081 Bedizzole (BS) - Italy - Via Adige, 55 Tel. +39 030 6872039 - Fax +39 030 6872040 info@cherubini.it - www.cherubini.it CHERUBINI Iberia S.L. 03630 SAX Alicante - Spain Avida. Unión Europea, 11-H - P.I. “El Castillo”...
