Performance Tool M625 Owner's Manual page 4

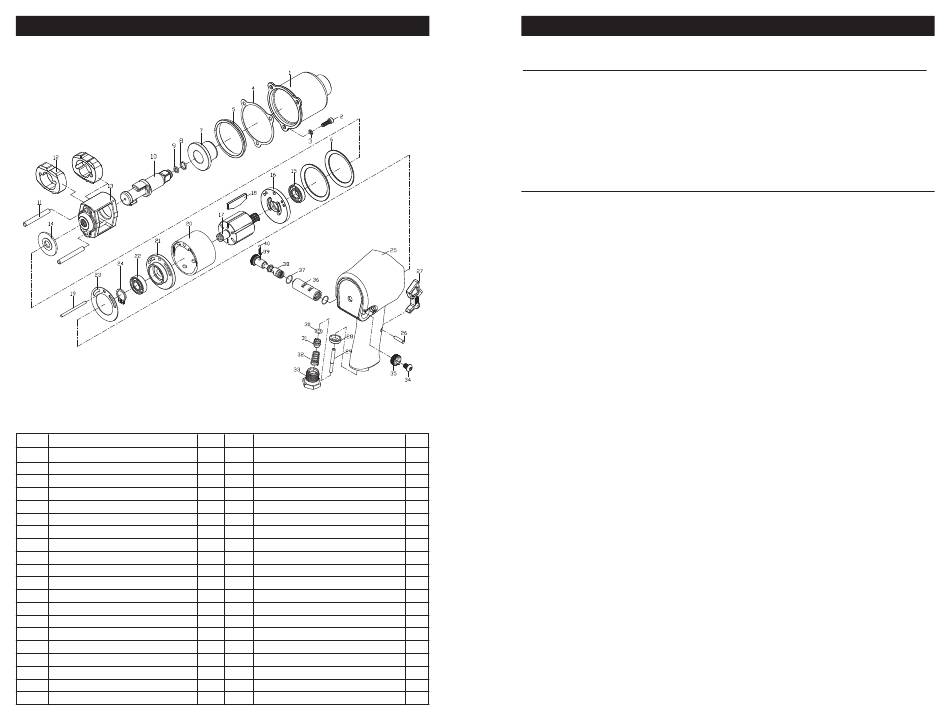

PARTS LIST
INDEX DESCRIPTION
1 Protective Rubber
2 Nut
3 Gasket
4 Seal Pad
5 Washer
6 V-Gasket
7 Anvil Bushing
8 Anvil Collar
9 O-Ring
10 Drive Shaft
11 Hammer Pin
12 Hammer Dog
13 Hammer Cage
14 Hammer Gasket
15 Front Bearing
16 Front Cover
17 Rotor
18 Rotor Blade
19 Cylinder Pin
20 Cylinder
QTY INDEX DESCRIPTION
1 21 Rear Cover
1 22 Rear Bearing
1 23 Rear Gasket
1 24 C-Ring
2 25 Housing
1 26 Trigger Pin
1 27 Trigger
1 28 Inlet Valve Seat
1 29 Switch Pin
1 30 O-Ring
1 31 Inlet Valve
1 32 Spring
1 33 Housing Adapter
1 34 Screw
1 35 Air Regulator Knob
1 36 Valve Jacket
1 37 O-Ring
1 38 Spool Valve
1 39 Spring
1 40 Steel Ball
TROUBLESHOOTING
INSUFFICIENT POWER:
Probable Cause
Dirty or clogged air passages ......... Flush and lubricate tool, drain air tank and supply line
Insufficient air supply ...................... Increase line pressure, Make sure compressor
Air leakage...................................... Use PTFE tape at all fittings and joints. Check tool for
Worn/damaged wear & tear parts ... Replace as necessary.
Tool matching ................................. Be sure you are using a tool suited for the torque
QTY
1
1
2
1
1
6
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Solution
matches tool's air pressure and consumption needs
worn or damaged O-rings & seals.
requirements of the job at hand.
