OttLite Flex & Store Quick Manual

B
D

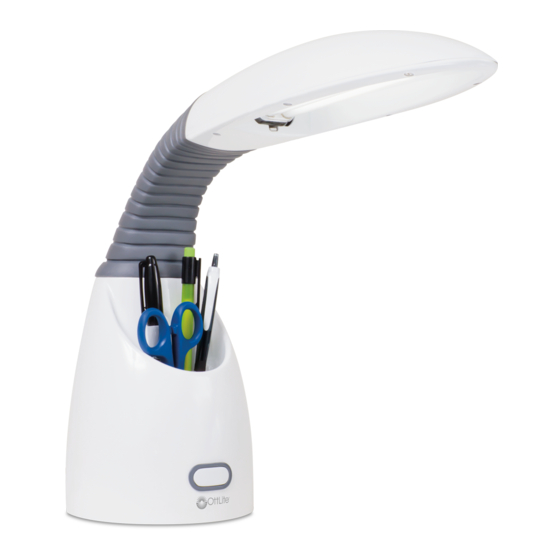

Flex & Store Lamp
X26518-CA
INS130072 REV071613
ENGLISH
CONGRATULATIONS!
You've purchased the finest in natural light-
ing technology with your new OttLite
product.
PRODUCT REGISTRATION FORM
Please complete the enclosed Product
Registration Form and return it today by mail,
or register online by going to:
www.OttLite.com/warranty.
WARNING: To prevent electric shock,
make sure the lamp is not plugged in until
all assembly steps are complete.
LAMP ASSEMBLY
1. Remove lamp from packing placing the
base (A) on a flat steady surface (a table).
2. Follow TUBE INSERTION/ REPLACMENT
directions to insert the tube.
3. Plug the power cord into a standard 120v
socket.
4. To turn the lamp on or off, depress the
pushbutton switch (D).
5. Position shade (E) as desired by flexing the
neck.
Note: Although the shade is flexible, it is
not designed for extreme movements. To
avoid breakage, DO NOT FORCE or try
to flex the shade more than a few inches
from pictured position.
E
This product complies with Part 18 of FCC Rules, but may cause interference to ra-
dios, televisions, wireless telephones, and remote controls. Avoid placing this product
near these devices. If interference occurs, move the product away from the device
or plug either into a different outlet. Do not install this product near maritime safety
equipment or other critical navigation or communication equipment operating between
0.45-30 MHz.
C
This Class B RFLD complies with Canadian ICES-005
A
CAUTION!
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or its
CDO-017
service agent or a similar qualified person in order to avoid a hazard. Indoor use only.
Flex & Store Lamp
TUBE INSERTION/REPLACEMENT
1. Make sure the lamp is not plugged into an
®
electrical socket.
2. If the lamp has been in use, allow it to
cool for approximately 5 minutes before pro-
ceeding.
3. Set the lamp upright on the floor.
4. To install a tube (B) in the shade (C) sock-
et, grasp the tube securely with your hand.
Lay the tube flat then push the tube into the
shade clip. Align the tube base and pins
with the socket and receptacles then and
push the tube straight into the socket until it
"snaps" into place. Do NOT apply pressure
on the glass end of the tube.
5. To remove a tube (B) already installed in
the lamp, grasp the tube firmly in your hand
and angle it slightly out of the shade; using a
slight side to side motion, pull it straight out
of the socket. Do not twist or turn the tube
while removing it from the socket.
Please note that in operation, OttLite
®
tubes are not dimmable.
Enjoy your OttLite Flex & Store lamp!
®
This lighting system is designed for use
with OttLite type (Style Number PL13-E).
®
Use of other products voids the warranty
and may result in damage to the lighting
system.
CAUTION! IMPORTANT SAFETY INSTRUCTIONS:
THIS PORTABLE LAMP HAS A POLARIZED PLUG (ONE BLADE IS WIDER THAN THE OTHER) AS A FEATURE TO
REDUCE THE RISK OF ELECTRIC SHOCK. THIS PLUG WILL FIT IN A POLARIZED OUTLET ONLY ONE WAY. IF THE
PLUG DOES NOT FIT FULLY IN THE OUTLET, REVERSE THE PLUG. IF IT STILL DOES NOT FIT, CONTACT A
QUALIFIED ELECTRICIAN. NEVER USE WITH AN EXTENSION CORD UNLESS PLUG CAN BE FULLY INSERTED.
DO NOT ALTER THE PLUG.
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.
¡ PRECAUCIÓN! INSTRUCCIONES DE SEGURIDAD
IMPORTANTES:
ESTA LÁMPARA PORTÁTIL TIENE UN ENCHUFE POLARIZADO (UNA DE SUS PATAS ES MÁS ANCHA QUE LA OTRA)
COMO CARACTERISTICA PARA REDUCIR EL RIESGO DE UNA DESCARGA ELÉCTRICA. ESTE ENCHUFE ENCAJARÁ EN
CUALQUIER TOMACORRIENTE POLARIZADO SOLO DE UNA MANERA. SI EL ENCHUFE NO CALZA COMPLETAMENTE
EN EL TOMACORRIENTE DÉLE LA VUELTA. SI AÚN NO ENCAJA, PÓNGASE EN CONTACTO CON UN ELECTRICISTA
CALIFICADO. NUNCA UTILICE UNA EXTENSIÓN A NO SER QUE EL ENCHUFE PUEDA SER TOTALMENTE
INSERTADO. NO ALTERE EL ENCHUFE.
PRECAUCIÓN:
PARA PREVENIR UNA DESCARGA ELÉCTRICA, HAGA COINCIDIR LA PATA ANCHA DEL
ENCHUFE CON LA RANURA ANCHA, INSERTE TOTALMENTE.
AVERTISSEMENT! IMPORTANTES DIRECTIVES DE
SÉCURITÉ:
CETTE LAMPE PORTATIVE EST MUNIE D'UNE FICHE POLARISÉE (UNE LAME PLUS LARGE QUE L'AUTRE). CE
DISPOSITIF DE SÉCURITÉ DIMINUE LE RISQUE DE CHOCS ÉLECTRIQUES PUISQUE LA FICHE NE S'INSÈRE DANS
LA PRISE QUE D'UN SEUL CÔTÉ. SI ELLE N'ENTRE PAS DANS LA PRISE, INVERSEZ-LA. SI ELLE N'ENTRE
TOUJOURS PAS, CONTACTEZ UN ÉLECTRICIEN QUALIFIÉ. N'UTILISEZ JAMAIS AVEC UNE RALLONGE SAUF SI
LA FICHE S'INSÈRE ENTIÈREMENT. NE MODIFIEZ PAS CE DISPOSITIF DE SÉCURITÉ.
AVERTISSEMENT:
POUR ÉVITER LES CHOCS ÉLECTRIQUE, INSÉREZ LE BOUT LARGE DE LA FICHE
DANS LA GRANDE FENTE ET POUSSEZ JUSQU'AU BOUT.
