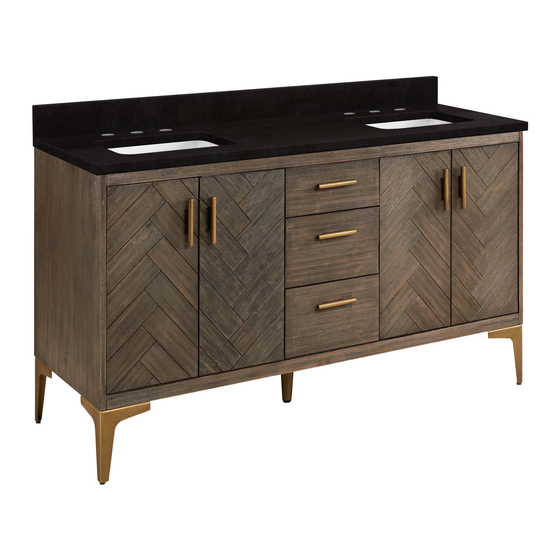

F R E Y 6 0 " V A N I T Y
WITH UNDERMOUNT SINK
SKU: 949568, 949569, 949572
BEFORE YOU BEGIN
We recommend consulting a professional if you are
unfamiliar with installing plumbing �xtures. Signature
Hardware accepts no liability for any damage to the
vanity, plumbing, countertop, sink, or for personal injury
during installation.
Observe all local plumbing and building codes.
Unpack and inspect the product for shipping damage. If
any damage is found, contact our Customer Relations
team at 1-866-855-2284.
GETTING STARTED
Ensure that you have gathered all the required
materials that are needed for the installation.
For Warranty information, please visit: signaturehardware.com/services/warranty
TOOLS AND MATERIALS:
Pencil
Silicone Sealant
(100% Neutral Cure)
HARDWARE LIST
Screw
M6x20 - 20pcs
1
Damp Cloth
Washer
Allen wrench
19x2 - 16pcs
4mm - 1pc
REVISED 01/28/2021
CODES: 531239, 531240, 531241
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Signature Hardware Frey 949568
Summary of Contents for Signature Hardware Frey 949568
- Page 1 F R E Y 6 0 ” V A N I T Y WITH UNDERMOUNT SINK SKU: 949568, 949569, 949572 TOOLS AND MATERIALS: BEFORE YOU BEGIN We recommend consulting a professional if you are unfamiliar with installing plumbing �xtures. Signature Hardware accepts no liability for any damage to the vanity, plumbing, countertop, sink, or for personal injury Damp Cloth...
- Page 2 F R E Y 6 0 ” V A N I T Y WITH UNDERMOUNT SINK SKU: 949568, 949569, 949572 INSTALLATION 1. Turn vanity cabinet upside down on soft surface. Align mounting holes in feet with mounting points on vanity cabinet.
- Page 3 F R E Y 6 0 ” V A N I T Y WITH UNDERMOUNT SINK SKU: 949568, 949569, 949572 2. Using provided allen wrench (C) fasten feet to vanity cabinet with washer (B) and screw (A) as shown.
- Page 4 F R E Y 6 0 ” V A N I T Y WITH UNDERMOUNT SINK SKU: 949568, 949569, 949572 SINK INSTALLATION 1. Carefully turn the countertop over, resting it on a 3. Use a pencil or marker to draw an outline around the soft, stable surface to prevent damage.
- Page 5 F R E Y 6 0 ” V A N I T Y WITH UNDERMOUNT SINK SKU: 949568, 949569, 949572 5. Carefully place the sink upside down on the coun- 7. Carefully turn the countertop and sinks over. If tertop, positioning it within your marked outline. Once needed, reposition the sinks by slightly loosening the positioned, press �rmly into place.
- Page 6 F R E Y 6 0 ” V A N I T Y WITH UNDERMOUNT SINK SKU: 949568, 949569, 949572 COUNTERTOP INSTALLATION 1. Apply a bead of silicone sealant around the top edge 3. If you are installing a side-splash and/or back-splash, of the vanity cabinet.
- Page 7 F R E Y 6 0 ” V A N I T Y WITH UNDERMOUNT SINK SKU: 949568, 949569, 949572 5. For stone tops, such as marble and granite, it is recommended that you apply a high-quality sealer to protect from staining and discoloration. Stone sealer should be reapplied once or twice per year, depending upon usage.
