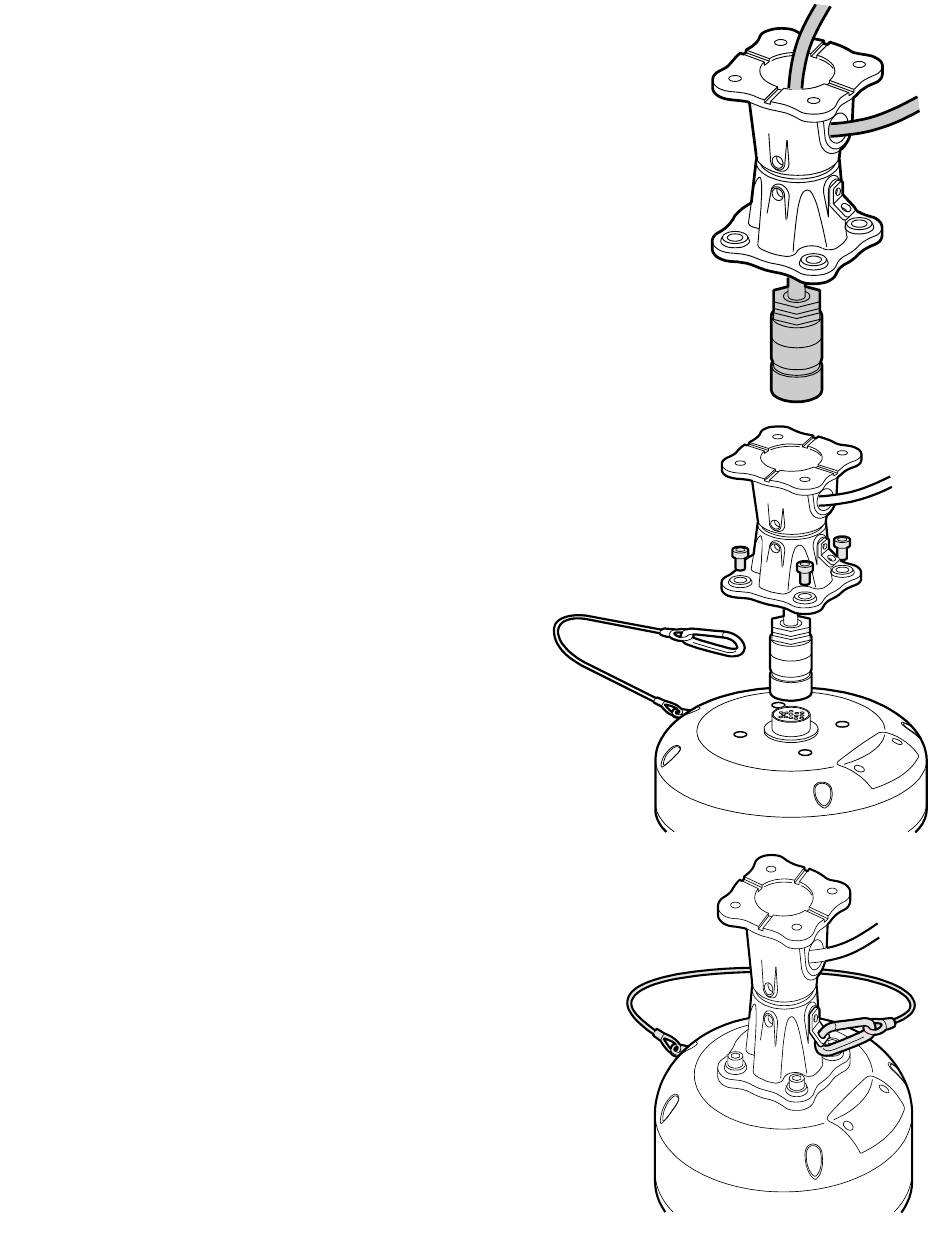

Το mount the camera
Thread the composite cable through the appropriate entry hole into
the mount adaptor before it is fixed to the column or bracket.
To avoid placing strain upon the electrical connections, arrange the
composite cable such that approximately 120mm of the
weatherproof connector protrudes out from the smaller plate
that will connect to the camera.
Secure the mount adaptor to the supporting structure using M8 bolts,
washers and Nyloc® type nuts where appropriate.
IMPORTANT: Always use sprung washers and Nyloc® nuts in order to
significantly reduce the possibility of bolts working loose due to
vibration during operation.
Cable entry path must be watertight to avoid ingress and build-up of
water around the connector.
Remove the four hex head bolts from the camera base and push the
connector back into the mount adaptor.
Offer the camera to the mount adaptor and clip the lanyard onto the lug of
the mount adaptor. In addition to being an essential safety device
during operation, the lanyard is useful as a temporary hanging point
when the camera is being mounted in the inverted position.
Carefully note the orientation notches of cable connector and camera
socket. Align the notches accordingly and insert the connector onto
the socket of the camera base. Twist the connector's retaining ring
until it fully locks into place.
Align the four holes of the mount adaptors with those on the camera base
and insert the four hex head bolts.
Tighten the bolts to approximately 1.6Kg/m. Do not over tighten bolts.
IMPORTANT: Ensure that the lanyard is connected to the appropriate lug
on the mount adaptor when the camera mounting is complete. Also,
double check all bolts for correct positioning and appropriate tightness.
