1.0 Power and Signal connections.

Camera power requirements.
The camera can accept a range of input voltages, as follows:
Input voltages
Power 45W – [60W IR models.]
These figures do not include the requirements of any optional heating or cooling devices added within the camera, nor
optional infra-red lighting systems.
Power supply units are available for both mains feeds and low voltage DC automotive power sources.

Multiway Connector / Cable allocations.

A Power + Red
B Power - Black
C Video 1 Signal Coax 1 Core
D Video 1 Ground Coax 1 Screen
E Aux Pos Orange
F Aux Neg White
G RS-485 Data + UTP Yellow (opt. Green)
H RS-485 Data - UTP Blue
J Earth Green/Yellow stripe
K Video 2 Signal Coax 2 Core
L Video 2 Ground Coax 2 Screen
M Eth 2 - Rx- -
N Eth2 - Rx+ -
P Eth1 - Rx- Cat5 Green
R Eth1 - Rx+ Cat5 White/Green
S Eth2 - Tx+ -
T Eth1 - Tx- Cat5 Orange
U Eth1 - Tx+ Cat5 White/Orange
V Eth2 - Tx+ -

Netwok connection leads.

Cat5/8P8C pinout configuration – 10/100BASET
(TIA568B)
Network connectors 1.
Pin Colour
1 White/Orange
2 Orange
3 White/Green
6 Green
14-36VDC or 14-26VAC.
(Low-power mode available on some non-IR models.)
With OSD Menu text display
Wash pump relay closing contact
Wash pump relay closing contact
Common to pin M Earth
With OSD Menu text display
Net2 – Second IP (OSD/Thermal)
Net2 – Second IP (OSD/Thermal)
Net1 – First IP (HD)
Net1 – First IP (HD)
Net2 – Second IP (OSD/Thermal)
Net1 – First IP (HD)
Net1 – First IP (HD)
Net2 – Second IP (OSD/Thermal)
Function
TX D1+
TX D1 -
RX D2+
RX D2 -

RS-485 connection addressing.

Please note that the PTZ address (Pelco D)
is fixed at Address ID: 001.
If the direct RS-485 connection is used the
PTZ should not be connected to other
CCTV camera equipment as address
clashes may occur.
This should only be used for test and
configuration activities.
The network interface is through the RJ45
Ethernet connectors to be plugged to a LAN
switch, router or local computer network interface.
The No.1 connector provides the HD Colour
camera feed.
On models with two imagers the second
connector provides the second camera feed, e.g.
Thermal view. This is provided through the
Alternat pairs of the Cat5 bundle.
The second network feed will also provide viewing
of the OSD Menu display within the image
.
PTZ control can be through either IP interface*
(* Not on all models and can be VMS dependant)

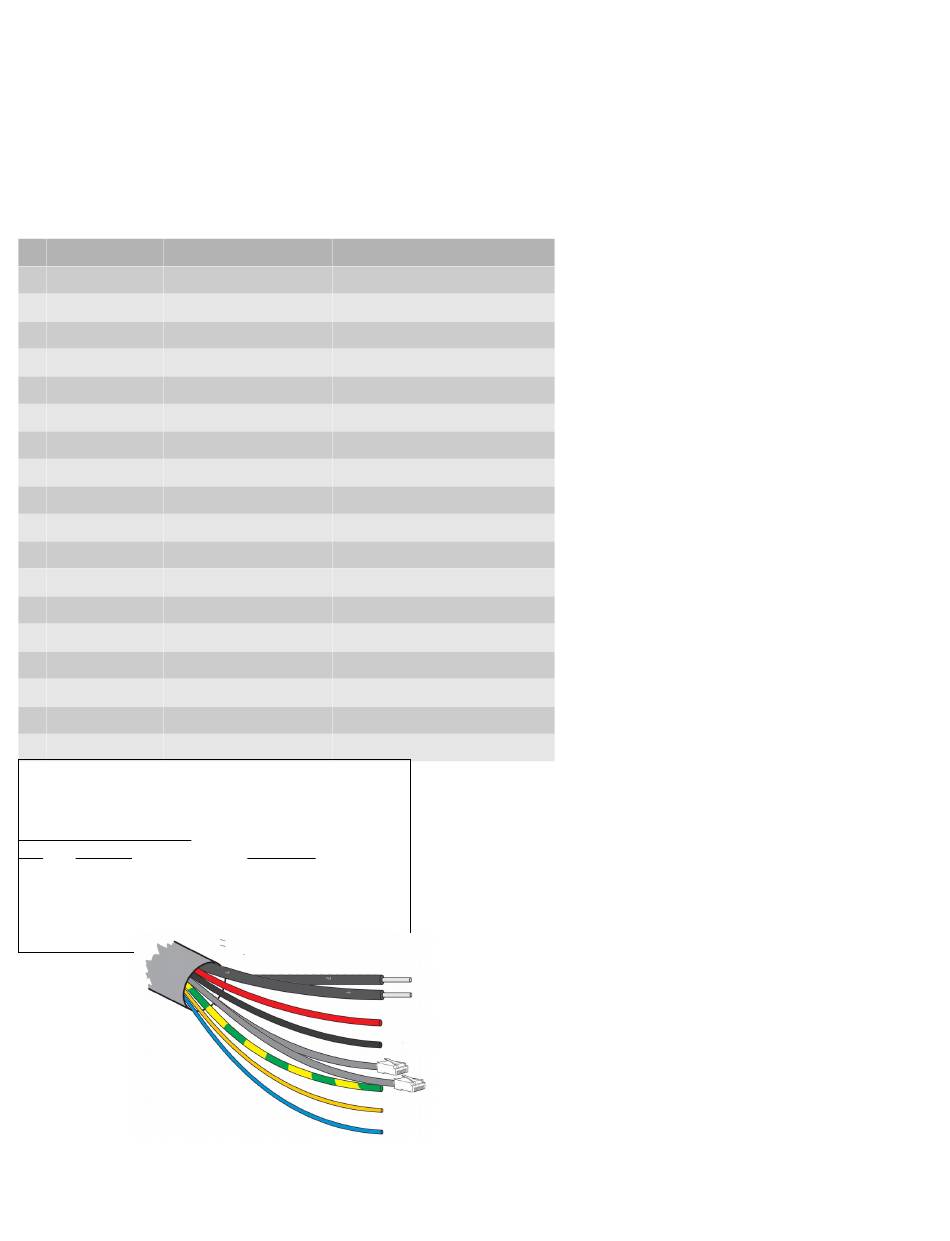

Co-axial: Composite Video (mini RG59).
(Two video connections on some models)
Red: Power Positive (Live).
Black: Power Ground (Neutral).
Cat5: Netwok connections.
Green+Yellow: Chassis Earth.
Yellow (Green): RS-485 Telemetry (Data+).
Blue: RS-485 Telemetry (Data – ).
Grey: Cable Screen.
Orange and White Auxiliary conductors on some models.
Closing contact pair for Washer relay triggering.
(CA-UCM / CA-U14CN)
(sleeving Green on some models)
