Page 2: Table Of Contents
Oculus – Installer's Guide Contents Contents................................2 Safety Information............................3 Disclaimer......................................3 Introduction..............................4 Installation............................... 5 Camera mounting.....................................5 To tilt the camera head..................................6 Configuration switches....................................7 Device ID address (block S1, switches 1 to 8)............................7 Protocol (block S2, switches 1 to 5)...............................8 Termination (block S2, switch 8)................................8... -
Page 3: Safety Information
Oculus – Installer's Guide Safety........................................23 Class........................................23 Appendix 4 – General Specifications..............................24 Mechanical......................................24 Appendix 5 – Camera Modules................................25 Optical modules....................................25 Thermal imaging modules..................................25 Appendix 6 – Using SSUtility................................26 Using SSUtility to access and control the main camera menu......................26 Using SSUtility to access the Quick Menu............................26 To create a new preset using SSUtility..............................26... -
Page 4: Introduction

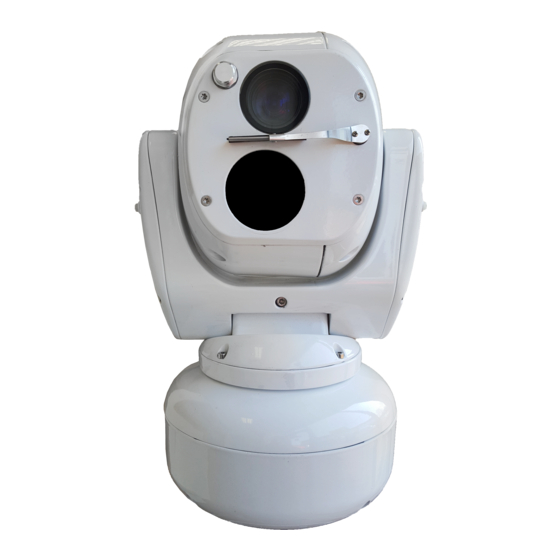

Oculus – Installer's Guide Introduction These are no ordinary cameras. Thanks to careful development and rigorous testing, these cameras are equipped to survive in harsh environments and provide enhanced features. Two main models are available to offer optical only or optical plus thermal imaging abilities. -
Page 5: Installation
Oculus – Installer's Guide Installation Camera mounting The camera is designed to be mounted upright or hanging. By nature of its rugged construction the camera is a heavy item and thus requires a substantial and stable mounting. The camera can be supplied with an optional mount adaptor to allow fixing to industry standard brackets, towers or columns. -
Page 6: To Tilt The Camera Head
Oculus – Installer's Guide Remove the four hex head bolts from the camera base and push the connector back into the mount adaptor. Offer the camera to the mount adaptor and clip the lanyard onto the lug of the mount adaptor. In addition to being an... -
Page 7: Configuration Switches
Oculus – Installer's Guide Configuration switches These switches set the address and protocol of the camera. If all switches are off then the address is taken from the camera’s internal memory and can be set using the menu. The default for the internal memory is 1. -
Page 8: Protocol (Block S2, Switches 1 To 5)
Oculus – Installer's Guide Protocol (block S2, switches 1 to 5) Sets the protocol and communication parameters. The protocols that can be selected using the protocol switches are: Protocol S2-1 S2-2 S2-3 S2-4 S2-5 Set using camera menu FV300, 9600, 8, Odd, 1... -
Page 9: Oculus Camera Menus
Oculus – Installer's Guide Oculus camera menus Apart from the basic hardware communication settings covered in the Installation section, all configuration of the camera takes place using the internal menu. There are two versions: • A quick menu that contains only the most commonly used settings, and •... -
Page 10: The Main Menu
Oculus – Installer's Guide The main menu The main menu provides access to all camera configuration features and contains numerous sub-menus within it: Silent Sentinel Oculus Version n.nnn (xxxx) xx SN: FFFFFFFF POST: 000000000 >Goto preset >Run tour >Setup (protected) -
Page 11: Camera 1 Options
Flip Image. – enables vertical reversing of the picture – does not re-orientate PT operation. Module number – displays the video module's identity code – for factory/servicing use.. Reset (on reboot|) – will cause the video module to be reset when the Oculus is next rebooted. Factory and servicing use only. -
Page 12: Camera 2 Options
Oculus – Installer's Guide Camera 2 options Silent Sentinel Oculus Version n.nnn (xxxx) xx SN: FFFFFFFF POST: 000000000 Colour polarity White Slave zoom Exit menu Thermal Imaging Camera Variant. Colour polarity – allows the thermal image grey-scale to be toggled between White-is-hot and Black-is-hot. -
Page 13: Configuration
Oculus – Installer's Guide Configuration Silent Sentinel Oculus Version n.nnn (xxxx) xx SN: FFFFFFFF POST: 000000000 Orientation Upright Positioning speed Low voltage PSU Pan limit left Pan limit right Tilt limit down Tilt limit up Set North Store Wash duration... -
Page 14: Miscellaneous
Oculus – Installer's Guide Miscellaneous Silent Sentinel Oculus Version n.nnn (xxxx) xx SN: FFFFFFFF POST: 000000000 >Date and time Debug messages >Diagnostics Hide quick menu Idle func (tour) Idle timeout IR Lamp Auto-On Auto POST Return to Off-pos Z-dependent speed... -
Page 15: Presets
Oculus – Installer's Guide Presets Each preset allows you to define a camera pan and tilt position as well as a zoom setting. You can define up to 128 presets which can then be either accessed using a Goto command, selected from the Goto Preset menu or can be linked together within one or more camera tours. -
Page 16: Privacy Patches
Oculus – Installer's Guide Privacy patches Privacy patches can be used to obscure objects from view. Eight privacy patches can be configured and the state for each patch is shown as either ‘Enabled’, ‘Disab’ or ‘Empty’. Silent Sentinel Oculus Version n.nnn (xxxx) xx... -
Page 17: Telemetry
Oculus – Installer's Guide Telemetry Silent Sentinel Oculus This section deals with all of the Version n.nnn (xxxx) xx various messages that can be SN: FFFFFFFF POST: 000000000 overlaid onto the video display in order to assist the operator. Disable OSD... -
Page 18: Tours
Oculus – Installer's Guide Tours A Position tour is a collection of one or more preset positions that the camera will be instructed to visit in sequential order. Up to 16 tours can be defined and each can contain up to 60 preset positions, placed in any order. -
Page 19: Mimic Tours
Oculus – Installer's Guide Silent Sentinel Oculus Version n.nnn (xxxx) xx SN: FFFFFFFF POST: 000000000 Select preset Speed Dwell (secs) Remove preset Exit menu Mimic Tours To create/replace a Mimic tour. Position the camera to where you wish to start the tour. -
Page 20: Appendices
Oculus – Installer's Guide Appendices Appendix 1 – Extended functions Twelve extended functions are supported. The base preset number can be set in the menu (the default is 2) for use with controllers of limited preset numbering all functions have fixed location preset value that can be... -
Page 21: Appendix 2 - Power And Signal Connections
Oculus – Installer's Guide Appendix 2 – Power and signal connections Camera power requirements The camera can accept a range of input voltages, as follows: • Input voltages 14-36VDC or 14-26VAC. (12VDC Low-power mode available on non-IR models.) • Power 45W (peak) –... -
Page 22: Fuses
Oculus – Installer's Guide Appendix 3 – Fault Finding – Checks to undertake. Camera does not power-up. Power correctly connected. Check for able faults, breaks or poor connections. Fuses may be missing. Blown fuses/breakers should be checked for other causes. -
Page 23: Connecting External Links
Oculus – Installer's Guide Wiper not stopping. Check for latched controller. Check controller does not send repeated wiper instructions. Some systems latch-on their wiper controls resulting in repeated calls to the camera to start wiper actions. 2) Confirm cycle ends. Confirm that WIPE caption appears and clears from screen. This indicates that the cycle intends to stop and is not receiving repeated instructions. -
Page 24: Appendix 4 - General Specifications
Oculus – Installer's Guide Appendix 5 – General Specifications Mechanical Construction Die-Cast hard anodised, powder coated aluminium, with A4 stainless fittings. IP Rating IP67 Normal Offset Turning Diameter 220mm / 8.66” 370mm / 14.57” Height 370mm / 14.57” 340mm / 13.86”... -
Page 25: Appendix 5 - Camera Modules
Oculus – Installer's Guide Appendix 6 – Camera Modules Optical modules Optical Zoom Image Sensor Sony 1/3” Sony 1/4” Sony 1/4” Sony 1/4” Sensor Type SuperHAD CCD ExView CCD ExView CCD ExView CCD Digital Zoom Resolution (Def.) 530 TVL 530TVL... -
Page 26: Appendix 6 - Using Ssutility
Using SSUtility to access the Quick Menu Oculus cameras include a quick menu that allows you to configure the most commonly used items without gaining access to all of the items within the Setup section of the main menu. Note: The quick menu can be disabled within the main menu, which will deny access using this method. -
Page 27: Appendix 7 - Camera Unit Dimensions
Oculus – Installer's Guide Appendix 8 – Camera unit dimensions Oculus IR variant shown. Silent Sentinel SilSen DN122305 - v3.7... - Page 28 Oculus – Installer's Guide Silent Sentinel. 11, Harforde Court, John Tate Road, Foxholes Business Park, Hertford, Hertfordshire. SG13 7NW T: +44 (0)1992 558093 F: +44 (0)1992 500272 E: info@silentsentinel.com www.silentsentinel.com Release 3.7 – xxx 2014 Silent Sentinel SilSen DN122305 - v3.7...
