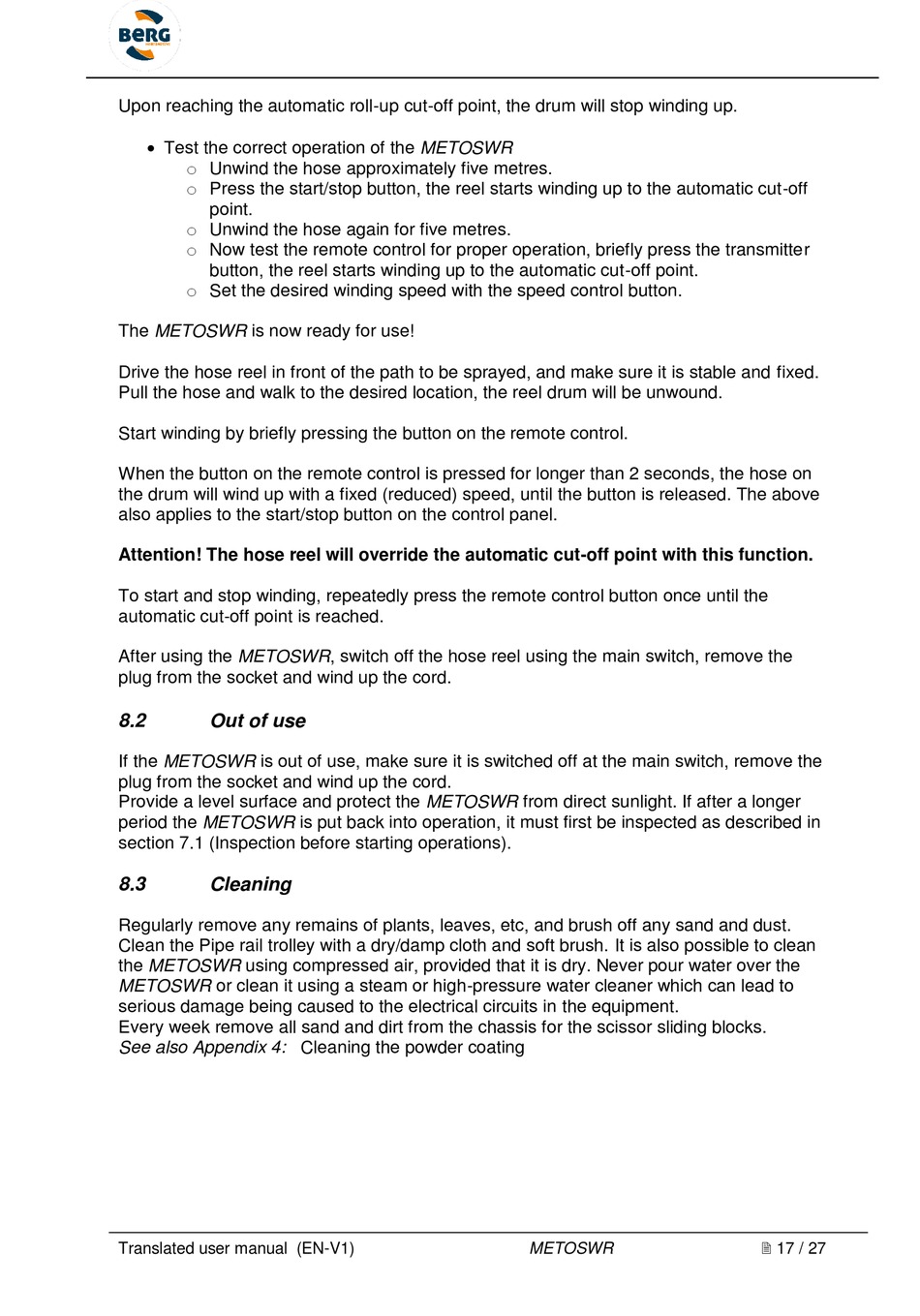

Out Of Use; Cleaning - BERG METOSWR Technical Handbook

Upon reaching the automatic roll-up cut-off point, the drum will stop winding up.
 Test the correct operation of the METOSWR
o Unwind the hose approximately five metres.
o Press the start/stop button, the reel starts winding up to the automatic cut-off
point.
o Unwind the hose again for five metres.
o Now test the remote control for proper operation, briefly press the transmitter
button, the reel starts winding up to the automatic cut-off point.
o Set the desired winding speed with the speed control button.
The METOSWR is now ready for use!
Drive the hose reel in front of the path to be sprayed, and make sure it is stable and fixed.
Pull the hose and walk to the desired location, the reel drum will be unwound.
Start winding by briefly pressing the button on the remote control.
When the button on the remote control is pressed for longer than 2 seconds, the hose on
the drum will wind up with a fixed (reduced) speed, until the button is released. The above
also applies to the start/stop button on the control panel.
Attention! The hose reel will override the automatic cut-off point with this function.
To start and stop winding, repeatedly press the remote control button once until the
automatic cut-off point is reached.
After using the METOSWR, switch off the hose reel using the main switch, remove the
plug from the socket and wind up the cord.
8.2

Out of use

If the METOSWR is out of use, make sure it is switched off at the main switch, remove the
plug from the socket and wind up the cord.
Provide a level surface and protect the METOSWR from direct sunlight. If after a longer
period the METOSWR is put back into operation, it must first be inspected as described in
section 7.1 (Inspection before starting operations).
8.3

Cleaning

Regularly remove any remains of plants, leaves, etc, and brush off any sand and dust.
Clean the Pipe rail trolley with a dry/damp cloth and soft brush. It is also possible to clean
the METOSWR using compressed air, provided that it is dry. Never pour water over the
METOSWR or clean it using a steam or high-pressure water cleaner which can lead to
serious damage being caused to the electrical circuits in the equipment.
Every week remove all sand and dirt from the chassis for the scissor sliding blocks.
See also Appendix 4: Cleaning the powder coating
Translated user manual (EN-V1) METOSWR
 17 / 27
