Summary of Contents for BERG METOSWR

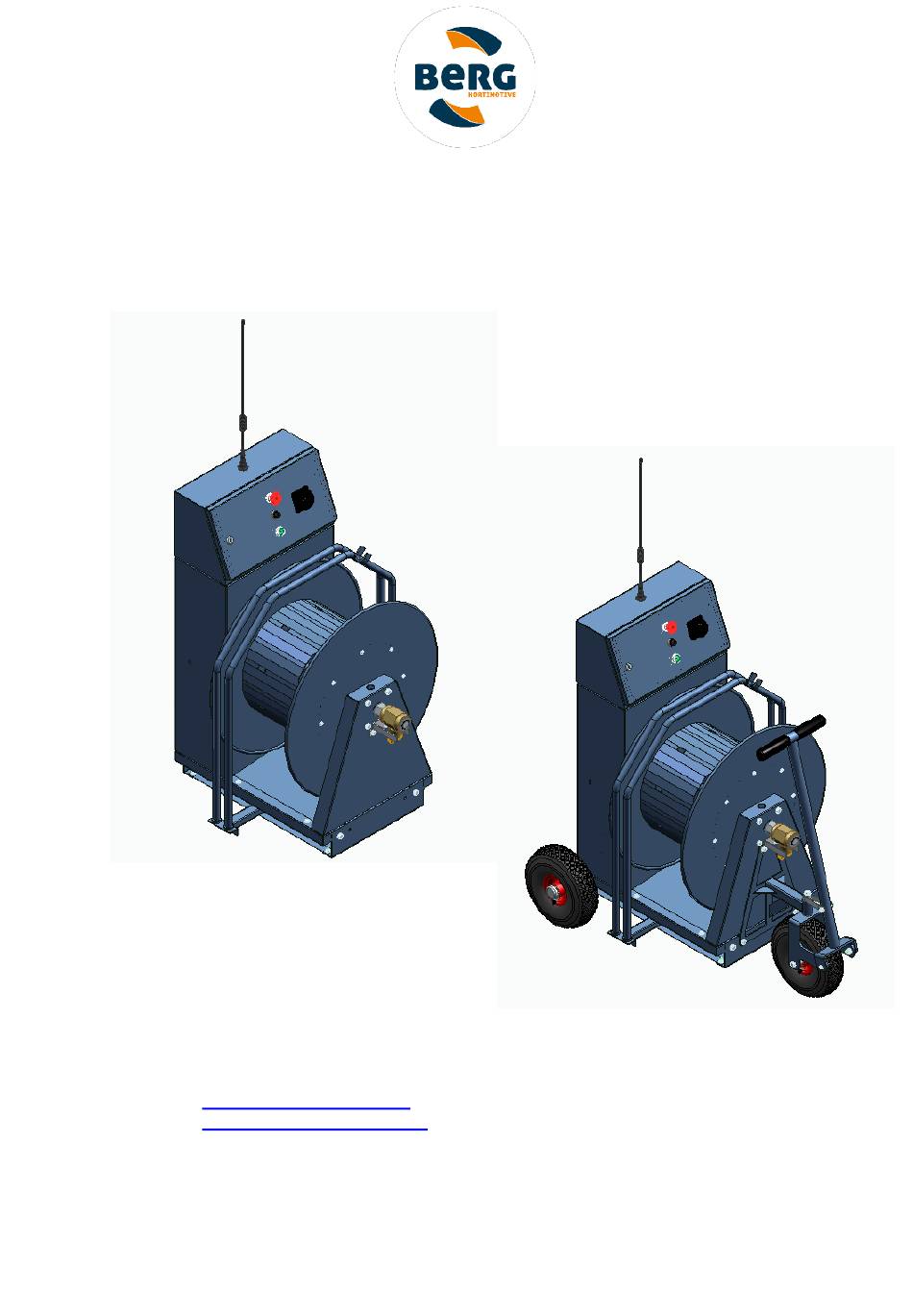

- Page 1 Technical Handbook METOSWR Berg Hortimotive Burg. Crezeelaan 42a 2678 KZ De Lier The Netherlands Tel: +31 (0) 174- 517 700 E- mail: info@berghortimotive.nl Internet: www.berghortimotive.com...
- Page 2 Berg Hortimotive, CE mark, serial and type reference, serial number, year of construction. If you would like to contact Berg Hortimotive, or one of their dealers with respect to this METOSWR, please ensure that this information is always readily available.
-
Page 3: Declarations
Berg Hortimotive does not accept liability when: - customers do not meet their obligations with respect to Berg Hortimotive (financial or otherwise) - consequential damage is caused by defects on the METOSWR - e.g. interruption of business, delays, etc. 3 / 27... -
Page 4: Guarantee
Guarantee For a period of 6 months after delivery, Berg Hortimotive gives the client a warranty on material and manufacturing defects that occur during normal use. This warranty does not apply if the defects are caused by improper use or causes other than by material and manufacture, if Berg Hortimotive - following consultation with the client - delivers used material or used goods or if the cause of the defects cannot be demonstrated clearly. -
Page 5: Foreword
Potentially dangerous situations are indicated together with recommendations for avoiding them. It is important that this handbook is carefully read in order to learn how the METOSWR should be operated and maintained. By reading this handbook and then using the METOSWR, you, or anyone else, will be assisted in using the METOSWR in the correct manner thereby helping to avoid personal injury as well as damage to the machine. -
Page 6: Table Of Contents
AFETY PICTOGRAMS ......................11 ESIDUAL RISKS INTENDED APPLICATION ....................12 ..................... 12 REA OF APPLICATION 5.1.1 Physical operating conditions ................12 METOSWR ....................13 ESCRIPTION TRANSPORTATION ......................14 ) ..............14 XTERNAL TRANSPORT MODEL ON WHEELS )............... 14 NTERNAL TRANSPORT MODEL ON WHEELS COMMISSIONING ....................... -
Page 7: Introduction
Introduction General You have made a good choice by purchasing the Berg Hortimotive METOSWR. You are the owner of an first class piece of equipment that has been manufactured with great care. You will gain the most advantage from the equipment provided that you carefully follow the instructions given in this handbook with regard to safety, operating and maintenance. -
Page 8: Safety
It is forbidden to pull (steel) wire and to install protective canvas with the METOSWR. It is forbidden for persons or pets to enter a path where a METOSWR is being operated. While using the METOSWR, all shields and protective caps must be fitted and closed. - Page 9 This is because of the possible occurrence of legionella bacteria in stagnant water. The operator of the METOSWR must be certified for the use of toxic substances for crop protection if they are sprayed with the METOSWR.
- Page 10 Keep the operating controls and safety pictograms clean. operating controls and safety pictograms should always be clearly visible. After use, the METOSWR should always be switched off with the main switch and the plug should be removed from the socket.
-
Page 11: Safety Pictograms
Safety pictograms On the METOSWR a number of safety pictograms have been applied. These pictograms warn the operator about possible dangers or dangerous situations. Always observe the warnings and contact your suppliers whenever the actual danger illustrated by the pictogram is not clear. -
Page 12: Intended Application
The machine may only be operated by one person with a minimum age of 18 years who has received thorough instruction in the operation of the METOSWR and who is already familiar with the safety instructions and this handbook, both of which they have fully understood. -
Page 13: Description Metoswr
Hose drum Machine socket Handlebar pull handle (option) Cord bracket Swivel coupling Wheels (option) Locking clip (option) Steering wheel Hose guide (option) Figure 5.1; Names of the parts of the METOSWR 13 / 27 Translated user manual (EN-V1) METOSWR... -
Page 14: Transportation
4. Also disconnect the supply hose or wind it up. 5. Lock the handlebar pull handle with the locking clip. 6. Properly secure the METOSWR to prevent it from sliding, rolling or toppling over. 7. Ensure that the METOSWR remains dry and frost-free during transportation. -
Page 15: Commissioning
METOSWR has received instructions regarding the hose reel and has read and understood this handbook. - The METOSWR may only be operated if one is sure that no one is in the immediate vicinity of the hose reel. -
Page 16: Preparing For Use
MAIN SWITCH The METOSWR can be switched on and off with the main switch. Here, the vertical position is ON and horizontal OFF. When the METOSWR is turned on, the green indicator will light up. EMERGENCY STOP Only use in case of emergency! The main switch must be used for switching off. -
Page 17: Out Of Use
Out of use If the METOSWR is out of use, make sure it is switched off at the main switch, remove the plug from the socket and wind up the cord. -
Page 18: Problems, Causes & Solutions
Problems, causes & solutions Problem The METOSWR does not wind up. Cause : Main switch is turned off Solution : Turn on the main switch (vertical) Emergency stop locked Release emergency stop (turn / pull out) No supply voltage Check the connection cable and power socket... -
Page 19: Dismantling
9. Check according to chapter 7 Dismantling When your METOSWR is defective to such an extent that it must be dismantled, you must take it to your supplier or another company that specialises in dismantling vehicles. Never take your METOSWR to a scrap metal merchant or dump. -
Page 20: Repairs & Maintenance
Repairs & maintenance The METOSWR is a very high quality product. In order to guarantee that the high quality remains, it is vital that the maintenance schedule given below is strictly adhered to. Repairs and maintenance activities should be recorded in the maintenance logbook - see Appendix 1. -
Page 21: Grease Hose Guide Chain And Bearings
The hinged parts of the handlebar pull handle and the locking clip must be lubricated at least once a year with e.g. spray grease. Spray this grease as illustrated below and remove excess grease with a cloth. Figure 9.5; Greasing hinged parts 21 / 27 Translated user manual (EN-V1) METOSWR... -
Page 22: Technical Specifications
Max. hose length ¾” [m] Max. hose length 1” [m] Cord bracket for max. 15 m cord Incl. Neoprene connection cable H07RN-F [m]*** Excl. Vibration level [m/sec²] <0.5 <0.5 Noise level [dB] <70 <70 22 / 27 Translated user manual (EN-V1) METOSWR... -
Page 23: Explanation Of The Technical Specifications
The frequency converter in the METOSWR has a maximum earth leakage current of 5.1 mA. The METOSWR hose reel is connected to a “general use” wall socket that is installed behind a 30 mA earth leakage breaker in accordance with NEN1010, which is applicable in the Netherlands. -
Page 24: Ec Declaration Of Conformity
While taking full responsibility, hereby declares that the product: - Hose reel type METOSWR mounted reel 7251.35.7xxx Hose reel type METOSWR on pneumatic tyre wheels 7252.35.7xxx Article number: ………………… Serial number: ………………… Meets the requirements of the Machinery Directive 2006/42/EC... -
Page 25: Appendix 1: Maintenance Logbook
Appendix 1: Maintenance logbook Repairs and/or maintenance activities can be described on the form underneath. Date Description of repair/maintenance Name of Type no.:…………………..Serial no.:………………………… company / engineer 25 / 27 Translated user manual (EN-V1) METOSWR... -
Page 26: Appendix 2: Technical Drawings
Appendix 2: Technical drawings Fig. 2.1; Dimensions build up reel in mm Fig. 2.2; Dimensions pneumatic tires reel in mm 26 / 27 Translated user manual (EN-V1) METOSWR... -
Page 27: Appendix 3: Cleaning The Powder Coating
The above are only recommendations and therefore responsibility for the proper cleaning remains with the person carrying it out. Please contact the manufacturer if you have any queries regarding the appropriate cleaning products to be used. 27 / 27 Translated user manual (EN-V1) METOSWR...
