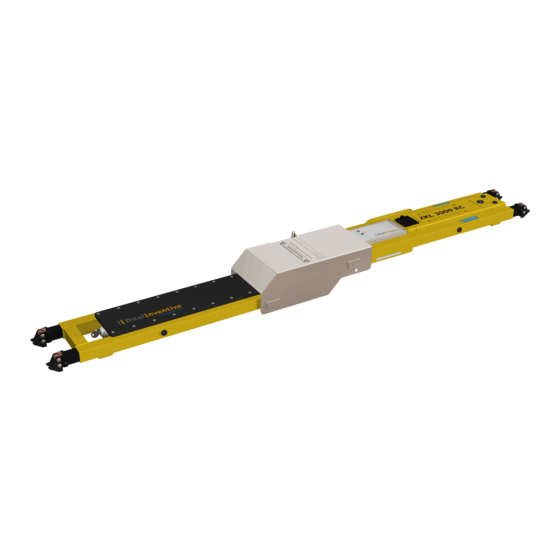

Dual Inventive ZKL 3000 RC Quick Start Manual

Dual Inventive ZKL 3000 RC Quick Start Manual

Hide thumbs Also See for ZKL 3000 RC:

Advertisement

Quick Links

Quick Start
ZKL 3000 RC
MTinfo 3000 version 5
February 2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZKL 3000 RC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dual Inventive ZKL 3000 RC

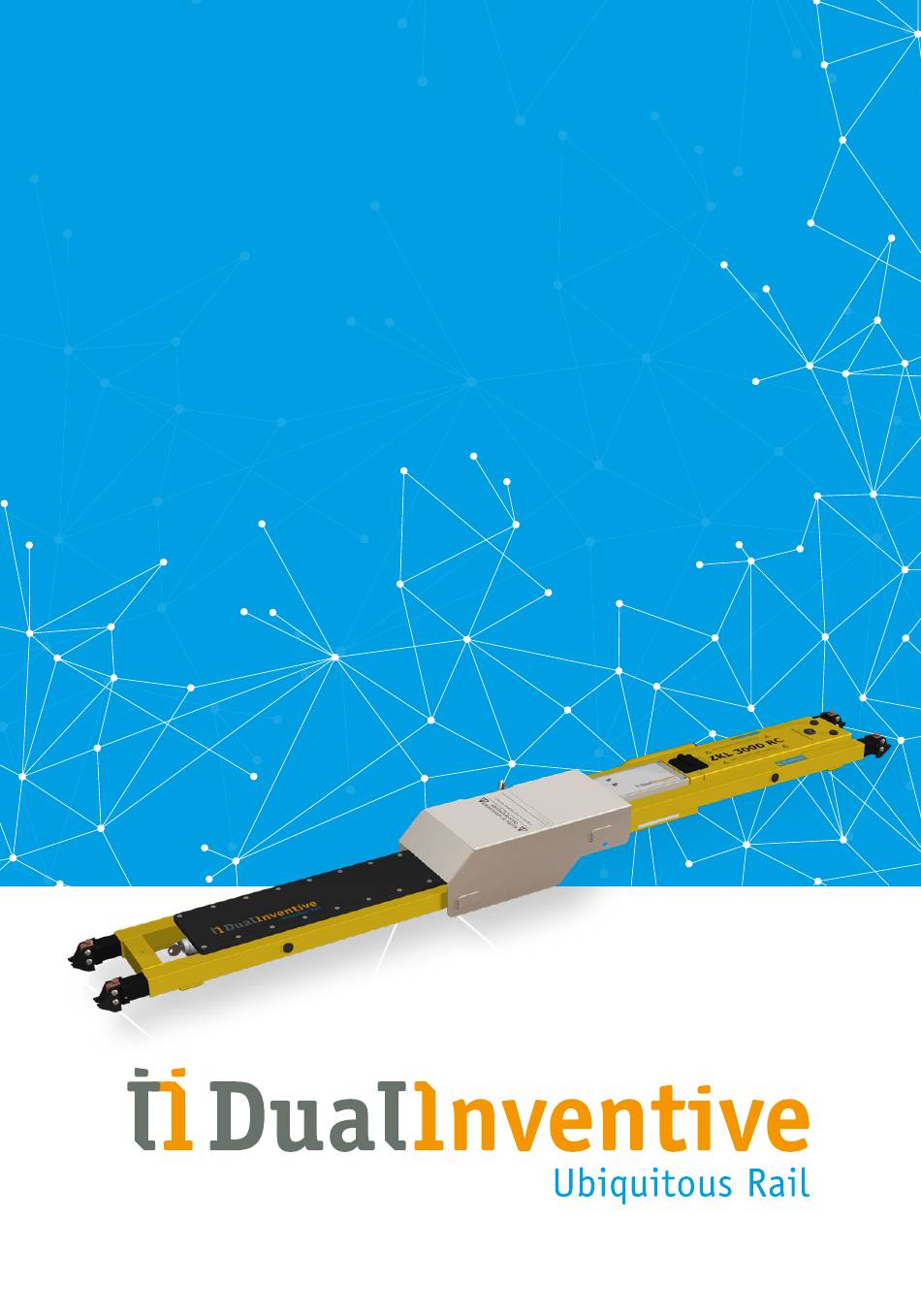

  • Page 1 Quick Start ZKL 3000 RC MTinfo 3000 version 5 February 2020...
  • Page 2: Before You Start

    Before you start! What you will need! • ZKL 3000 RC • Manual and ZKL 3000 RC accessories • Certificate ZKL 3000 RC • MTinfo 3000 app Inhoud 1. Function test before you start 2. Installation in the track 3. Operating the MTinfo 3000 app...
  • Page 3 Operate the key switch as follows turn it counter- clockwise turn it clockwise Make sure the green LED blinks twice per second during the first two steps! Check the status of the ZKL 3000 RC in the MTinfo 3000 app or on mtinfo3000.com...
  • Page 4 Place the ZKL 3000 RC in the track Make sure the distance between the underside of the ZKL 3000 RC and any ballast is at least 30mm. Install the locking clamp Perform the function test again, see steps 1B...
  • Page 5 Operating the MTinfo 3000 app Logging in Selecting a project...
  • Page 6 Switching on Successfully switched on...
  • Page 7 The green LED will blink twice per second.
  • Page 8 Operating the MTinfo 3000 app Switching off Successfully switched off...
  • Page 10 Icons, statuses and errors Icons Icon Explanation View the notifications that have been sent by MTinfo 3000 Refresh the screen Statuses [ID] [SW] [DET] Explanation 110.0199 Device has been switched on and is creating a proper short. 110.0199 Device has been switched on and is NOT creating a proper short.
  • Page 11 ZKL 3000 RC short circuit has not been switched on, but there detected (DET NOK). Please attempt to is no short circuit reseat the ZKL 3000 RC in the track and (DET NOK) check again. Short circuit When switching, a short circuit was already already present detected in the section.
  • Page 12 And perhaps we'll see you soon! info@dualinventive.com www.dualinventive.com...
