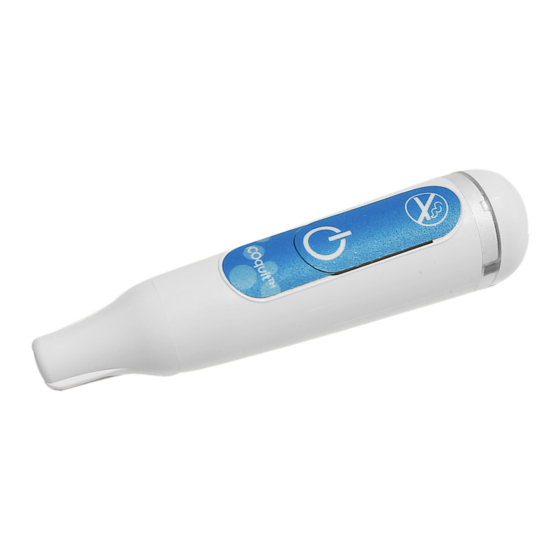

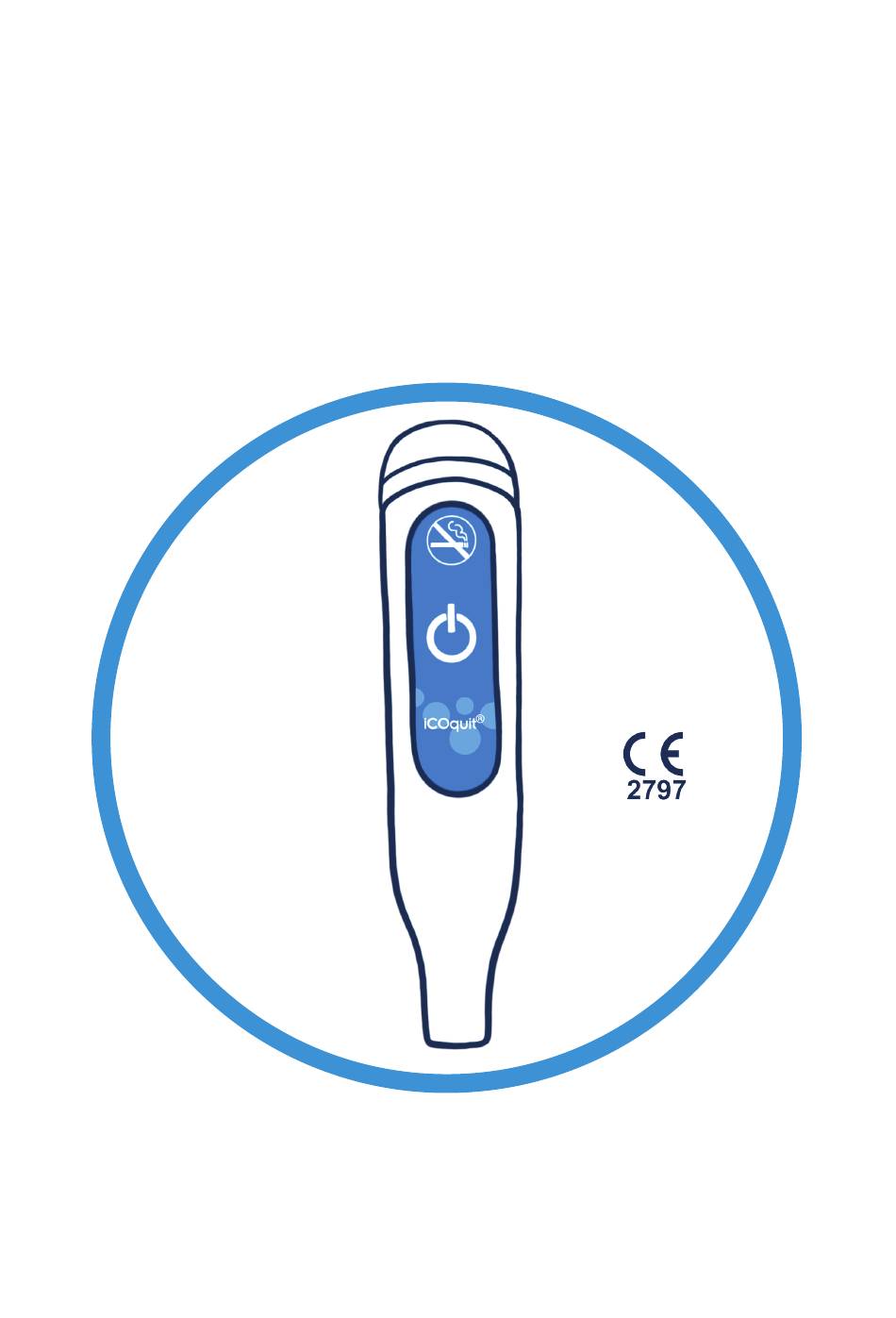

- Page 1 iCOquit Smokerlyzer ® ® ® User Manual...
-
Page 2: Important Information/Reminders
Important Information/Reminders WARNING: The iCOquit® Smokerlyzer® device is for individual use. Do not share your device with anyone to lower the risk of cross-contamination. CAUTION: Never use alcohol or cleaning agents containing alcohol or other organic solvents as these vapours will damage the carbon monoxide sensor inside the iCOquit®. CAUTION: Do not use hand-sanitising products containing alcohol when using the device as this may damage the sensors. -
Page 3: Table Of Contents
Contents Important Information/Reminders ..................... 1 About this Manual ..........................3 Definitions ............................3 Compliance ............................3 Warnings ............................. 3 Cautions .............................. 3 Contraindications ..........................4 Intended Use/Indications ........................4 Instrument Layout ..........................4 Installation and Set-up ........................5 User Interface ............................. 5 Breath test ............................ -
Page 4: About This Manual
About this Manual The User Manual provides instructions on how to operate iCOquit® Smokerlyzer® monitor and the iCOquit® app. It contains relevant information about the monitor, its uses and its care, including step-by-step instructions with screens and illustrations. Definitions WARNING: indicates a potentially hazardous situation, which, if not avoided, may result minor or moderate injury. -
Page 5: Contraindications
Contraindications There are no known contraindications. Intended Use/Indications The iCOquit® Smokerlyzer® breath carbon monoxide (CO) monitor is intended for single person use by individuals wanting to measure the amount of CO on their breath in the home environment, as a motivational aid to help them in their attempt to stop smoking. -
Page 6: Installation And Set-Up
Installation and Set-up Downloading the iCOquit® app App can be downloaded from the App Store or Google Play. Connecting the iCOquit® device To connect the device to the app, push the pairing button when instructed to. A blue light will flash once to show pairing is complete. - Page 7 Sign in Screen 1. Email Address field. 2. Password field. 3. Forgotten Password button, starts a new forgotten password process. 4. Sign In Button, starts the authentication process. 5. Register button, starts the user registration process.
- Page 8 Dashboard/Home Screen 1. Hamburger menu button, this will open the menu. 2. The first dashboard shows the users latest CO PPM reading. a. Information overlay appears on a tap gesture which provides result description. 3. The second dashboard shows days until quit date or if quit date has been reached, it will show number of days smoke-free.
-
Page 9: Breath Test
Breath test 1. Press the best test icon 2. Follow the steps on the iCOquit® app. Using the iCOquit® User Authentication and Registration Authentication Screen Options a. If the user already has an account they will need to complete the authentication fields and tap the ‘Sign In’... - Page 10 Completing the Forgotten Password Process 1. The user will to provide the email address they completed registration with and then tap the ‘Submit’ button. 2. The 9 digit password reset verification code will have been sent to the users’ mailbox. The user will then need to tap the ‘submit’...
- Page 11 3. The last step is to provide a new password and rewrite that password and then tap the ‘submit’ button. After the new password has been submitted, the app will return to the sign-in page. Completing the Registration Process 1. The user will need to complete the user profile section of the registration process.
- Page 12 2. The second part of the registration process is providing the users smoking habits. This will involve: a. Providing the number of cigarettes smoked per day. b. Providing the cost for a pack of 20 cigarettes. c. Providing the number of hours before the users’...
- Page 13 before attempting authentication. The user must tap the link in the email to confirm their email address. After this the user will be authenticated and can return to the app and sign in using the details registered. Tabbed Navigation Pages 1.
- Page 14 To start a new breath test, tap the ‘Breath test’ Button. The breath test tab will display the hygiene warning and allow the user to start a new breath test, by tapping the ‘Continue’ button. To view historic breath test results, the user will need to tap the ‘Results’...
-
Page 15: Connecting To An Icoquit® Device
Connecting to an iCOquit® device 1. The Bluetooth scanning phase will show a spinner while searching for a device. 2. If an iCOquit® device has been found and successfully connected to, a tick shall be shown to indicate a successful connection between the smart device and iCOquit®. -
Page 16: Completing A Breath Test
3. If an iCOquit® device has not been found or was unable to successfully connect, a retry icon shall appear indicating connection has failed, but tap the icon to try again. Completing a breath test Breath Test Initialisation 1. The first screen prompts the user to initiate the breath test. - Page 17 Inhale Instructions 2. As prompted onscreen, take a deep breath. Hold Instructions 3. As prompted onscreen, hold your breath until the countdown timer has finished. 4. If the 15 second inhalation countdown is unattainable, begin exhaling when ready and the device will begin measuring breath sample.
-
Page 18: Interpreting The Breath Test Result
Exhale Instructions 5. Do not cover vent hole of device when performing a breath test. 6. As prompted on screen, exhale. Interpreting the breath test result 1. Breath test result interpretation chart a. Green = Low CO PPM Reading b. Yellow = Moderate CO PPM Reading c. -
Page 19: Completing The Smoking Habits Questions
Completing the Smoking Habits Questions 1. The user will need to complete the input fields relating to their smoking habits. This will involve: a. Confirming whether they are still an active smoker. b. Providing how many cigarettes they are actively smoking per day. -
Page 20: Navigation Drawer Menu Options
2. Once the answers have been provided and the user has tapped the ‘Continue’ button, they will be provided with a result, which informs them of their smoking status. There are four results: a. Non-Smoker b. Light-Smoker c. Moderate-Smoker d. Heavy Smoker Navigation drawer menu options 1. - Page 21 Edit Personal Details 1. A user can navigate away by tapping the back button symbol. 2. A user can adjust their personal details by editing the form fields. Once a user has finished making changes they will need to tap the ‘Update’ button Edit Smoking Habit Details 1.
- Page 22 Device Details Page Perquisite: The user must complete the device connection process upon navigating to this screen. 1. A user can navigate away by tapping the back button symbol 2. Upon successfully navigating to the device details screen, device details about the connected device will appear.
- Page 23 Frequently Asked Questions 1. The user can navigate away from the page by tapping the back button symbol. 2. Upon navigating to the page, a web view will appear which will display the iCOquit® support web page. The user will be able to navigate support articles on the web page within the app.
- Page 24 Delete Account 1. The user can navigate away from the page by tapping the back button symbol. 2. Upon navigating to the page, the user will need to the ‘Delete Account’ Button to confirm they want to delete their account. 3.
-
Page 25: Troubleshooting
• Leave in clean, dry area with fresh air (free from VOCs) for 24hrs If any of these issues persist, please contact Bedfont® or its distributors. Cleaning 1. The iCOquit® Smokerlyzer® product is moulded with ABS and PC plastic, which is easy to keep clean. -
Page 26: Technical Specification
Technical Specification Gas Measured Carbon Monoxide (CO) Detection principle Electrochemical Concentration range 0-100 ppm Monitoring resolution 1 ppm Monitoring accuracy ±≤3 ppm/±≤10% of reading* Monitoring repeatability ±≤3 ppm/5% (within 120 sec)* Operating lifetime 500 breath tests/12 months** Display Via the iCOquit mobile application Battery Life 12 months and battery is non-replaceable Power... -
Page 27: Safety Information
Refer to manual Serial Number Non-ionizing electromagnetic radiation CE mark Keep dry Dispose of according to WEEE Serial number Manufacture by and date BF Applied Part – whole device Recycling symbol Bedfont® logo... - Page 28 EMC Table/Environment The iCOquit® Smokerlyzer® complies with the Medical Device Directive 93/42/EEC as amended by 2007/47/EC and the Medical Device Electromagnetic Compatibility standard IEC 60601-1-2 and EN 60601-1-2. WARNING: Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the iCOquit Smokerlyzer including cables specified by the manufacturer.
- Page 29 8:2010 30 A/m 50 Hz and 60Hz IEC61000-4- 8:2012 2, 4, 8kV contact 2, Criterion B Floors should be wood, concrete or ceramic tile. EN61000-4- 4, 8, 15kV air If floors are covered with synthetic material, the 2:2009 relative humidity should at least 30%. IEC61000-4- 2:2012 Notes:...
-
Page 30: Warranty
500 tests or 6 months, whichever is first, from the date of shipment. Bedfont’s sole obligation under this warranty is limited to repairing or replacing, at its choice, any item covered under this warranty when such an item is returned, intact and prepaid, to Bedfont®... - Page 32 Tel: +44 (0)1622 851122 Fax: +44 (0)1622 854860 Email: bedfont-gmbh@bedfont.com Email: ask@bedfont.com Web: www.bedfont.com Issue 2 - January 2021, Part No: LAB806 Bedfont® Scientific Ltd reserve the right to change or update this literature without prior notice. Registered in England and Wales. Registered No. 1289798...
