Summary of Contents for Bedfont G210

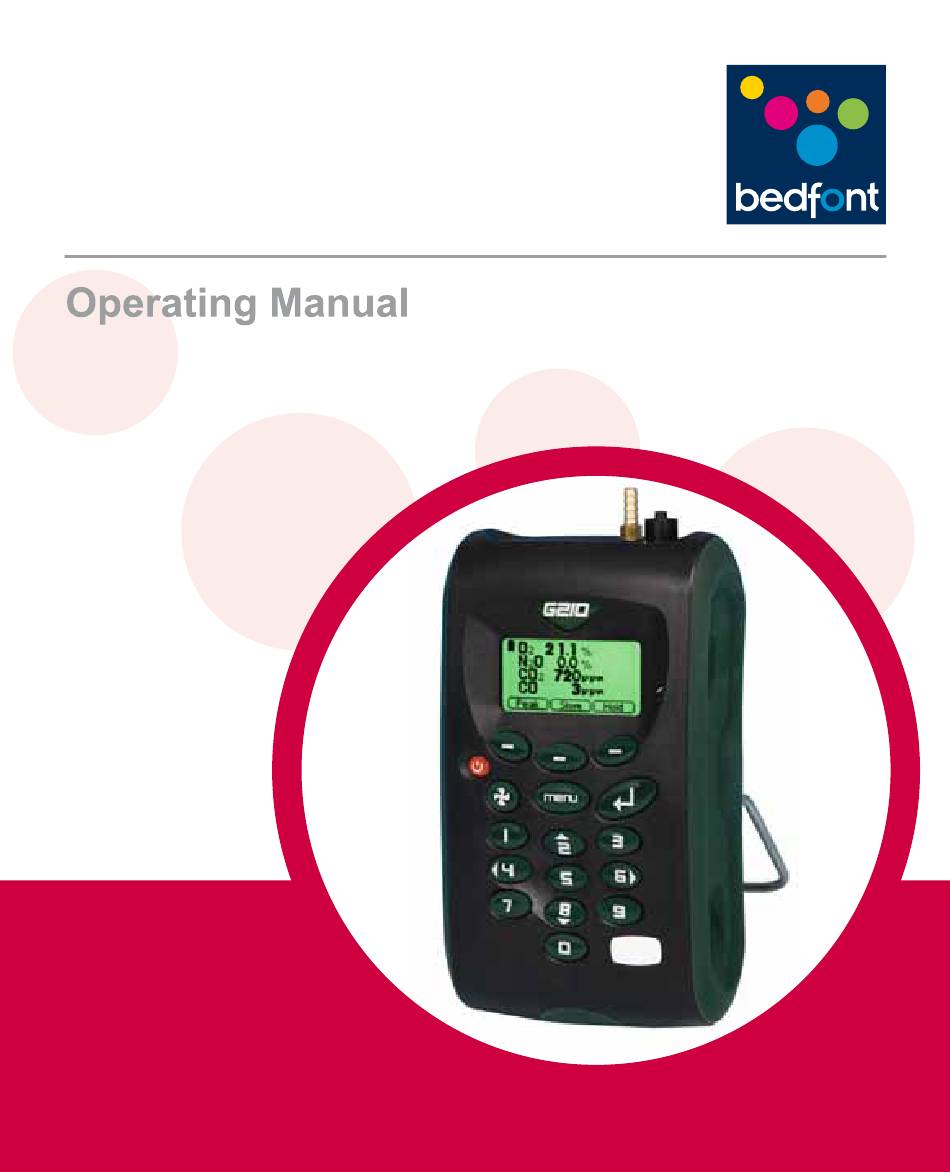

- Page 1 G210...
-
Page 3: Table Of Contents
Medi-Gas G210 Contents Introduction Pack contents General operation Monitoring procedure Flow fail Flow Fail Chart Calibration procedure Specification Returns Procedure Spares Warranty... -
Page 4: Introduction
● CO 0 - 500 ppm (Optional) ● CO 0 - 2000 ppm Please note: Throughout the guide the gas used as an example in the diagrams is O , the instructions follow the same procedures for the other three gasses that the G210 monitor detects. -
Page 5: Pack Contents
Medi-Gas G210 Pack Contents List G210 monitor UK charging plug 3x Universal plug adapters 1x Moisture filter 1x Section of tubing Hard surrounding carry case Factory calibration certificate G210 manual (CD format) and also a G210 manual (paper copy) -
Page 6: General Operation
Data settings can also be accessed through this option. This data is more detailed through the G210 software kit). Diagnostics (This section is only used when diagnosing any faults with the monitor. Bedfont will ask you to provide information from this section, should you encounter any problems). -
Page 7: Monitoring Procedure
Medi-Gas G210 Monitoring Procedure The G210 monitor should be connected to the gas 20.9% outlet safely by using a MED-REG-KIT supplied 0.1% by Bedfont Scientific Ltd. At each outlet, allow for 500 ppm a stable reading. We recommend testing outlets 0.1 ppm... -
Page 8: Flow Fail
F a i l ! P l e a s e c h e c k A rare occurance with the G210 is when the monitor f i l t e r / p i p e f o r b l o c k a g e displays ‘Flow Fail’, represented by a flashing fan icon. -
Page 9: Flow Fail Chart
Medi-Gas G210 Flow Fail Chart Increase displayed Press pump START value by 2 cancel alarm Turn pump on wait 5 seconds Decrease displayed Flow fail alarm? value by 1 Increase displayed Decrease displayed Flow fail alarm? value by 3 value by 1... -
Page 10: Calibration Procedure
Medi-Gas G210 Calibration There are two types of calibration that the G210 unit requires; a zero and a span gas calibration. The ‘zero’ calibration needs to be done prior to use on a daily basis and the ‘span gas’ calibration needs to be done monthly. The example gas in the Span Gas section of the guide is O . - Page 11 Medi-Gas G210 The tubing should be connected to the canister and then split at the Y piece. One way will supply the unit and the other way will act as a route for waste gas to escape without over pressurising the unit.
-
Page 12: Specification
Medi-Gas G210 Specification Model G210 Gas Detected O, O , CO , (CO optional) Detection Range 0-100% 0-100% 0-2000 ppm 0-500 ppm Detection Resolution Fumigation range: 1 mg/L Sensor Type: Internal Electrochemical Cell Accuracy Resolution: 0.1% Accuracy: ±(1% of range + 2% of reading) Resolution: 0.1%... -
Page 13: Returns Procedure
Medi-Gas G210 Returns Procedure The G210 requires servicing every 12 months. The servicing shall be carried out by Bedfont alone. Please contact Bedfont’s Customer Service Specialist before returning any goods. If equipment was not purchased direct from Bedfont, please contact the local distributor. -
Page 14: Spares
Bedfont Scientific Limited or the local representative. At the end of the product’s life, do not dispose of any electronic instrument in the domestic waste, but contact Bedfont or its distributor for disposal instructions. - Page 15 Thank you for reading this data sheet. For pricing or for further information, please contact us at our UK Office, using the details below. UK Office Keison Products, P.O. Box 2124, Chelmsford, Essex, CM1 3UP, England. Tel: +44 (0)330 088 0560 Fax: +44 (0)1245 808399 Email: sales@keison.co.uk...
