Briggs & Stratton 91200, 92200, 94200 Operating & Maintenance Instructions

Briggs & stratton mower operator's manual
Hide thumbs Also See for 91200, 92200, 94200:
Table of Contents

Advertisement

Quick Links

See also: Owner's/operator's Manual
Model Series
Covered in
This Manual
91200
92200
94200
Note: General Model Series numbers noted above include many specific numbers
like the ones on your engine. To get replacement parts or technical assistance in
the future, write your engine Model, Type, Code and date of purchase here.
TABLE OF CONTENTS
Safety
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Information
. . . . . . . . . . . . . . . . . . . . . . . .
Oil
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting Information
. . . . . . . . . . . . . . . . . . . . . . .
Starting and Stopping
Maintenance
. . . . . . . . . . . . . . . . . . . . . . . . .
Adjustments
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts and Service & Storage
Warranty Information
PRINTED IN U.S.A.
Model
. . . . . . . . . . . . . . . . . . . . .
11-13
. . . . . . . . . . . .
15-16
. . . . . . . . . . . . . . . . . . . . .
Copyright 2000 by Briggs & Stratton Corporation
Operating & Maintenance
Type
3-5
6
Briggs & Stratton does not approve or authorize the use of
these engines on 3-wheel All Terrain Vehicles (ATVs), motor
7
bikes, aircraft products or vehicles intended for use in
8
competitive events. Use of these engines in such applications
could result in property damage, serious injury (including
9
paralysis), or even death.
10
In the USA and Canada our 24 hour hotline is
14
17
Instructions
Code
Month Day Year
WARNING
1-800-233-3723
Briggs & Stratton Corporation
Milwaukee, Wisconsin 53201
www.briggsandstratton.com
FORM NO. 274778-9/00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 91200, 92200, 94200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Briggs & Stratton 91200, 92200, 94200

Summary of Contents for Briggs & Stratton 91200, 92200, 94200

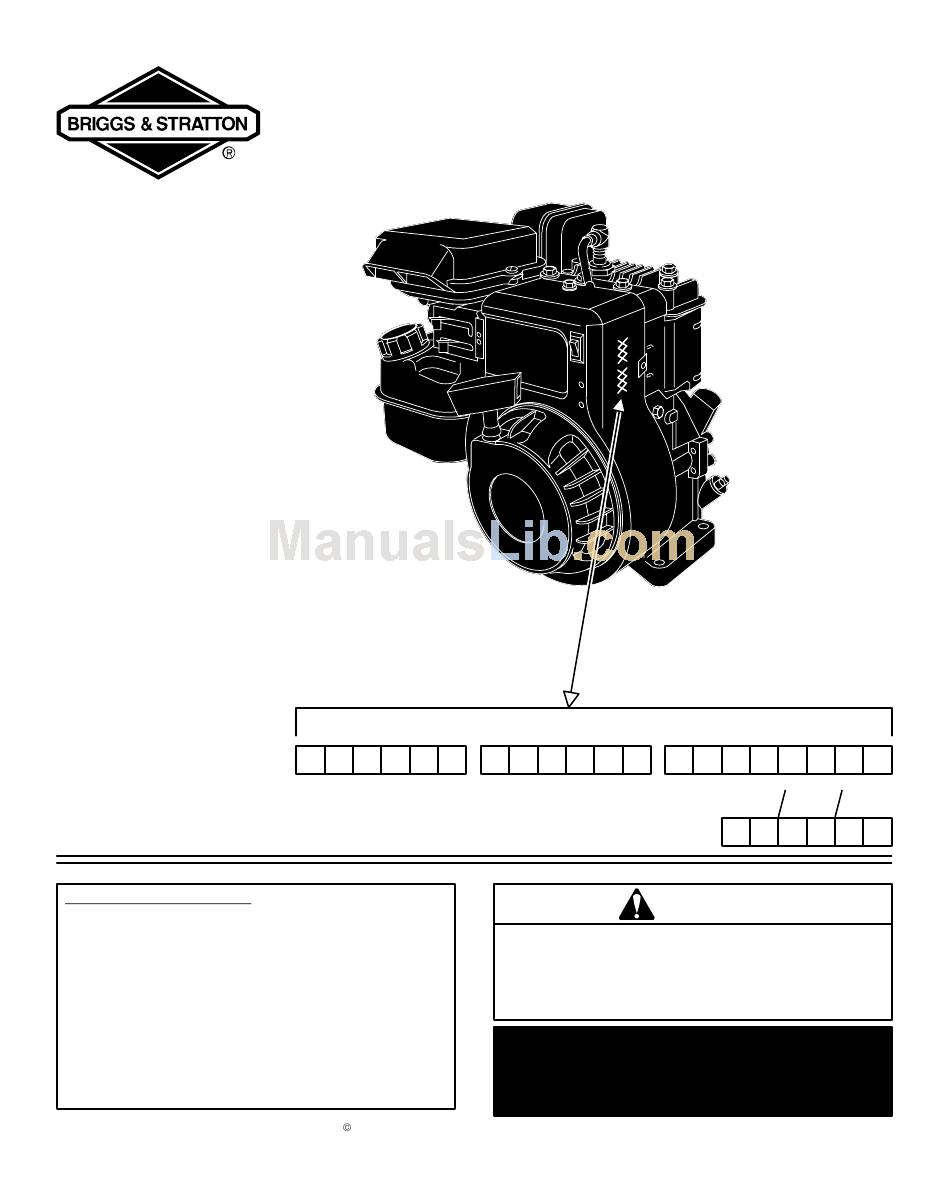

  • Page 1 Model Series Covered in This Manual 91200 92200 94200 Model Note: General Model Series numbers noted above include many specific numbers like the ones on your engine. To get replacement parts or technical assistance in the future, write your engine Model, Type, Code and date of purchase here. TABLE OF CONTENTS Safety .
