Installation

Connecting high-voltage, single-phase input power and loads

Follow these steps to wire high-voltage (120 VAC, 240 VAC, and 277 VAC), single-phase power
connections (FIG. 8) to any of the AMX Lighting modules.

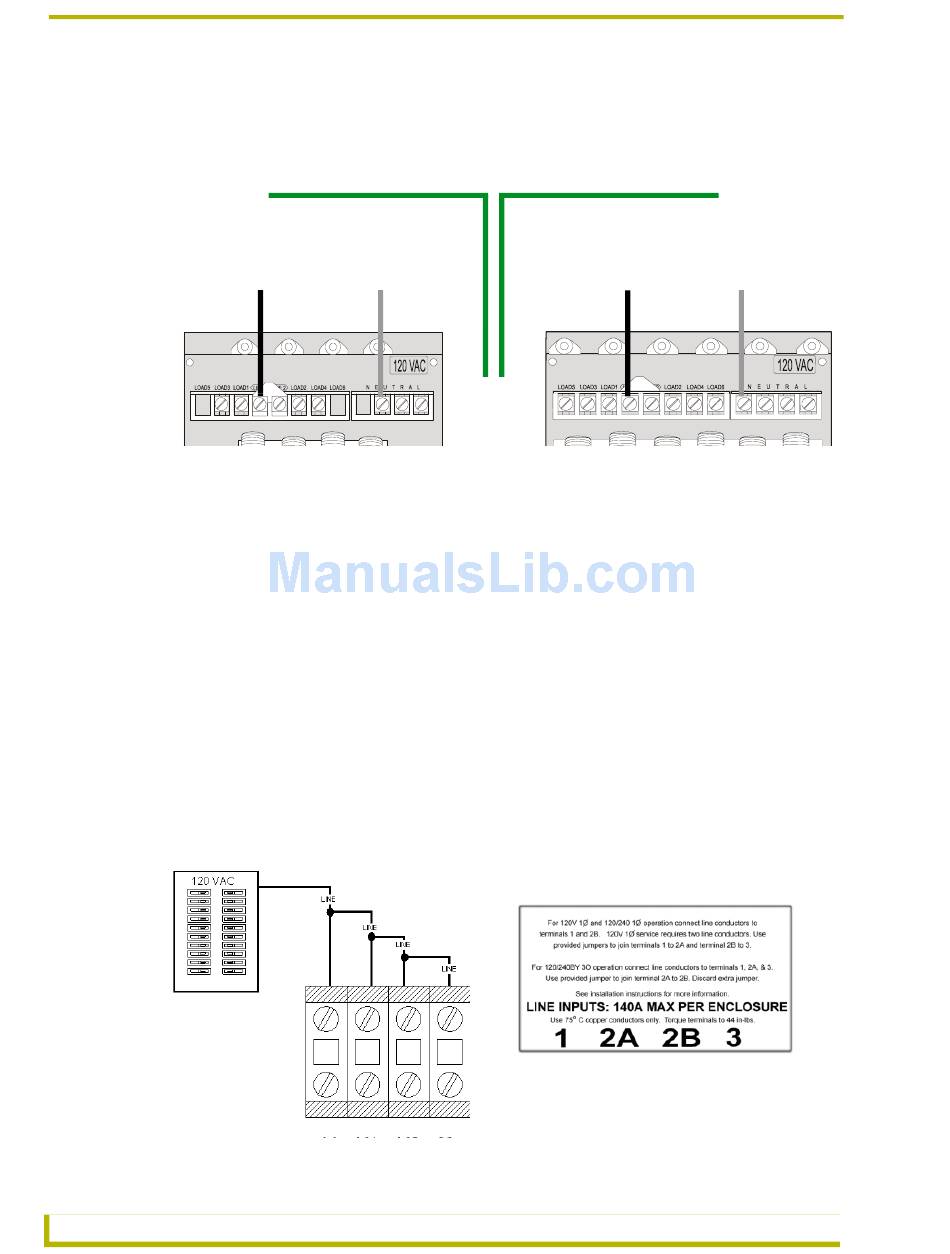

FIG. 8 RDD-DM4 and RDD-DM6 (as examples only) high-voltage, single-phase power connections for line input
(hot), neutral, and ground.
1. Connect the green ground wire(s) to the copper ground lug on the enclosure. Ensure the ground
wire is properly connected to earth ground.
2. Connect the white neutral wire(s) to a terminal on the enclosure's neutral terminal block. Each
terminal on the block can accept two 10 AWG wires.
3. Provide a separate neutral wire for each dimmed zone.
4. Connect the black line input from the electrical devices to the module's line terminal. The line
input terminal accepts a 10 AWG copper conductor.
5. Connect load lines from the electrical devices to the Load terminals. Load 1 applies to dimmer
1, Load 2 applies to dimmer 2, and so on.

RDA-ENC6B 120 VAC single phase line input

FIG. 9 shows a 120 VAC single-phase (2 W + G) wiring diagram for the RDA-ENC6B line input
terminal block.
FIG. 9 RDA-ENC6B 120 VAC single-phase (2 W + G) wiring diagram
8
Ground (green)
Hot (black)
Neutral (white)
1 2a 2b
Hot (black)
to Enclosure
ground terminal
3
Ground (green)
Neutral (white)
