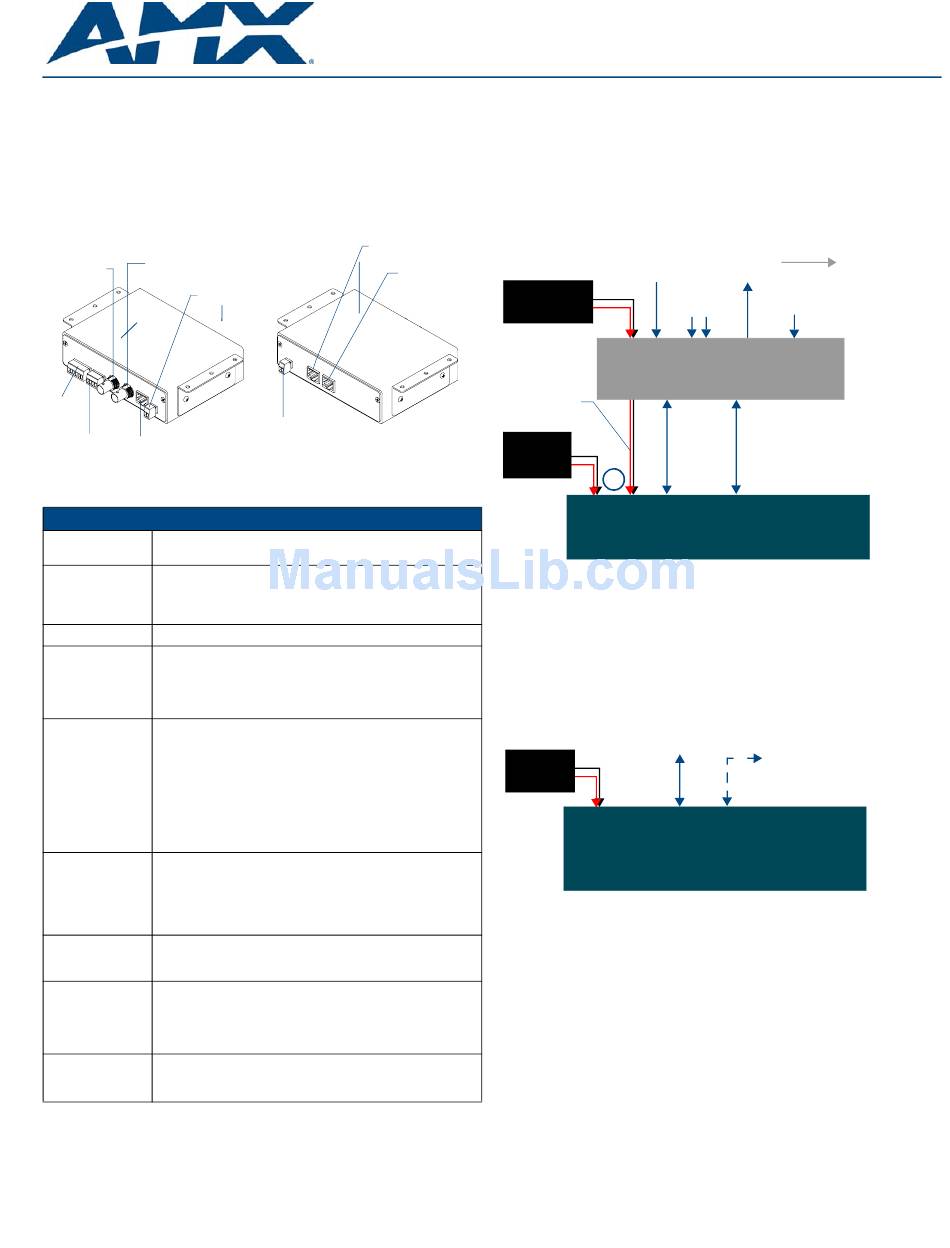

AMX NXA-AVB/ETHERNET Quick Start Manual

Overview
The NXA-AVB/ETHERNET Breakout Box (FG2254-10) facilitates the installation
and distribution of video, data, and audio to Modero touch panels located up to
200 feet (60.96 m) from the AVB box. This unit accepts either Composite or
S-Video from standard video devices. FIG. 1 shows the NXA-AVB/ETHERNET
Breakout Box.
For more detailed installation and operating instructions, refer to the specific
Modero touch panel instruction manual, available online at www.amx.com.
Composite/
S-Video Chroma
S-Video
Luma
Power
(rear)
Audio
In
Mic Out Ethernet
FIG. 1 Connector layouts on the NXA-AVB/ETHERNET Breakout Box
Specifications
NXA-AVB/ETHERNET Specifications
Dimensions • 1.50" x 5.55" x 4.88" (3.81 cm x 14.10 cm x 12.40 cm)
(HWD): • Width when attached to mounting ears: 6.65" (16.89 cm)
Power • 50mA (with audio/video input)
Consumption: • 23mA (with no audio/video)
• Routed through AVB using a PSN power supply (Refer to
FIG. 2 and FIG. 3 for more information).
Certifications: • FCC, CE, and EN60950
Front Components: • 2-pin 3.5 mm Phoenix connector for power to the touch panel
• Green LED provides an indication of power status
• RJ-45 connector provides Ethernet signals to the touch panel
• RJ-45 connector provides differential audio and video signals
to the touch panel (panel type dependent)
Rear Components: • 6-pin 3.5 mm Phoenix connector for in-bound (left/right
channel) audio
• 4-pin 3.5 mm Phoenix connector for out-bound (from
microphone) audio
• BNC connector (female) for Composite or Chroma
(for video-capable panels only)
• BNC connector (female) for luminance (for video-capable
panels only)
• RJ-45 connector for Ethernet input from the control system
• 2-pin 3.5 mm Phoenix connector for in-bound power
Features: • Accepts either Composite or S-Video (video-capable
panels only)
• Provides audio distribution to the non-video touch panels
over a CAT5 cable (up to 200 ft.)
• Provides video/audio distribution to the video-capable touch
panels over CAT5 cable up to 200 ft. (60.9 m)
Availability: • This unit is not included with current Modero panels
• This unit is included with VG-series Video Kits and with the
7" panels
Included • Two 2-pin Phoenix connectors (41-5025)
Accessories: • One 4-pin Phoenix connector (41-5047)
• One 6-pin Phoenix connector (41-5063)
• One Rack Mount Kit (KA2250-40) with mounting bracket
(62-2254-02)
Optional • AC-RK Accessory RackMount Kit (FG515)
Accessories: • Modero Table Top Cable (CA2250-50)
• PSN6.5 power supply (FG423-41) (panel dependent)
NXA-AVB/ETHERNET Breakout Box

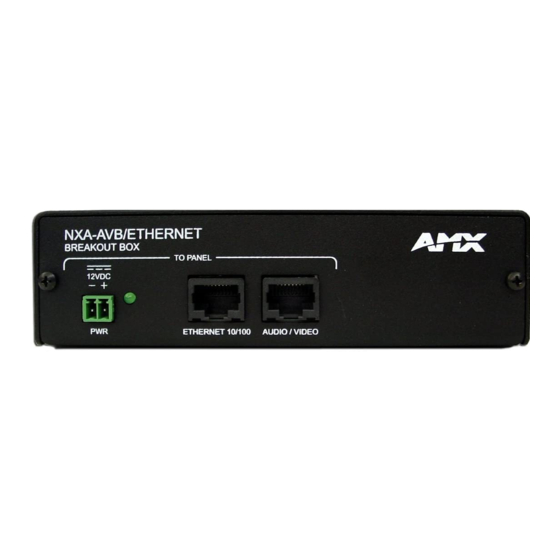

FIG. 1 shows the front and rear connectors on the breakout box.
Note: The breakout box unit can be mounted on either a horizontal flat surface
or into an equipment rack (by removing the front screws and attaching it to an
AC-RK).
NXA-AVB/ETHERNET
Ethernet (to panel)
Audio/Video
(to panel)
(front)
Power (to panel)
Modero
Note: The PSN power supply being used on the NXA-AVB/ETHERNET is
dependent on the power requirements of the target touch panel.
Connections and Wiring
A PSN power supply can indirectly provide power to a Modero panel by routing
power through the NXA-AVB/ETHERNET Breakout Box. FIG. 2 shows a sample
wiring configuration using both an indirect or direct PSN power connection for a
video-capable Modero panel. Refer to the online Modero Touch Panel instruction
manuals for connection options.
Indirect
Ethernet In
Connect
(RJ-45)
PSN power Video In
supply
NXA-AVB/ETHERNET
PSN4.4/6.5
supplied via
NXA-AVB box
Ethernet
PSN power
(CAT5)
supply
or
Direct
Connect
NXD/T Video-capable
Touch Panels
FIG. 2
Sample wiring configuration on video-capable panels using this Breakout Box
The NXA-AVB/ETHERNET is an optional accessory for non-video capable
Modero touch panels but can only transfer Audio signals between the Breakout
Box and the target touch panel.
A PSN power supply can also directly provide power through the unit to a target
Modero panel. Refer to the specific Modero touch panel instruction manual for
detailed wiring information. FIG. 3 shows a sample wiring configuration for a
non-video capable Modero panel.
Direct
Ethernet
connect
(CAT5)
PSN power
supply
NXD/T Non-video capable
FIG. 3 Sample Wiring configuration on non-video panel using this Breakout Box
Note: AMX recommends using the above power connection examples when
connecting the breakout box to your touch panel. If you want to attempt another
configuration or if you want to use two power supplies, be sure to avoid any
potential ground loops that may occur in your connection configuration. Ground
loops can cause display errors with your touch panel.
Wiring the NXA-AVB/ETHERNET connectors and cables
The inputs and outputs on the breakout box are separated into front and rear
connectors. The rear connectors are used to input external signals. The front
connectors are used to communicate signals between the
NXA-AVB/ETHERNET and a target Modero panel. FIG. 4 provides a layout of
the wiring connection both into and from the breakout box.
Quick Start Guide
®
Ethernet/Video Breakout Box
Line Level out
Mic Out
(to amplifier
(4-pin captive-wire)
or VOL card)
Audio In
(BNC)
(6-pin captive-wire)
Breakout Box
Audio/Video
(CAT5)
Audio (CAT5)
between optional
NXA-AVB/ETHERNET
Breakout Box
Touch Panels
(rear)
(front)
