AMX Heavy Duty DC Module RDM-HDC Installation Sheet

The RDM-HDC Heavy Duty DC Module is a heavy-duty 2400 W module for
dimming of fluorescent ballast loads. It uses a 0 to 12 VDC current sinking
or sourcing for use with all four-wire ballasts. It is designed for use with the
RDA series of enclosures, in an AMX Lighting™ modular digital dimming
system. The module's 120, 240, and 277 VAC ratings are CE, UL, and
C-UL approved.
Mounting
points
Neutral
High
voltage
Line in
Load
Relay

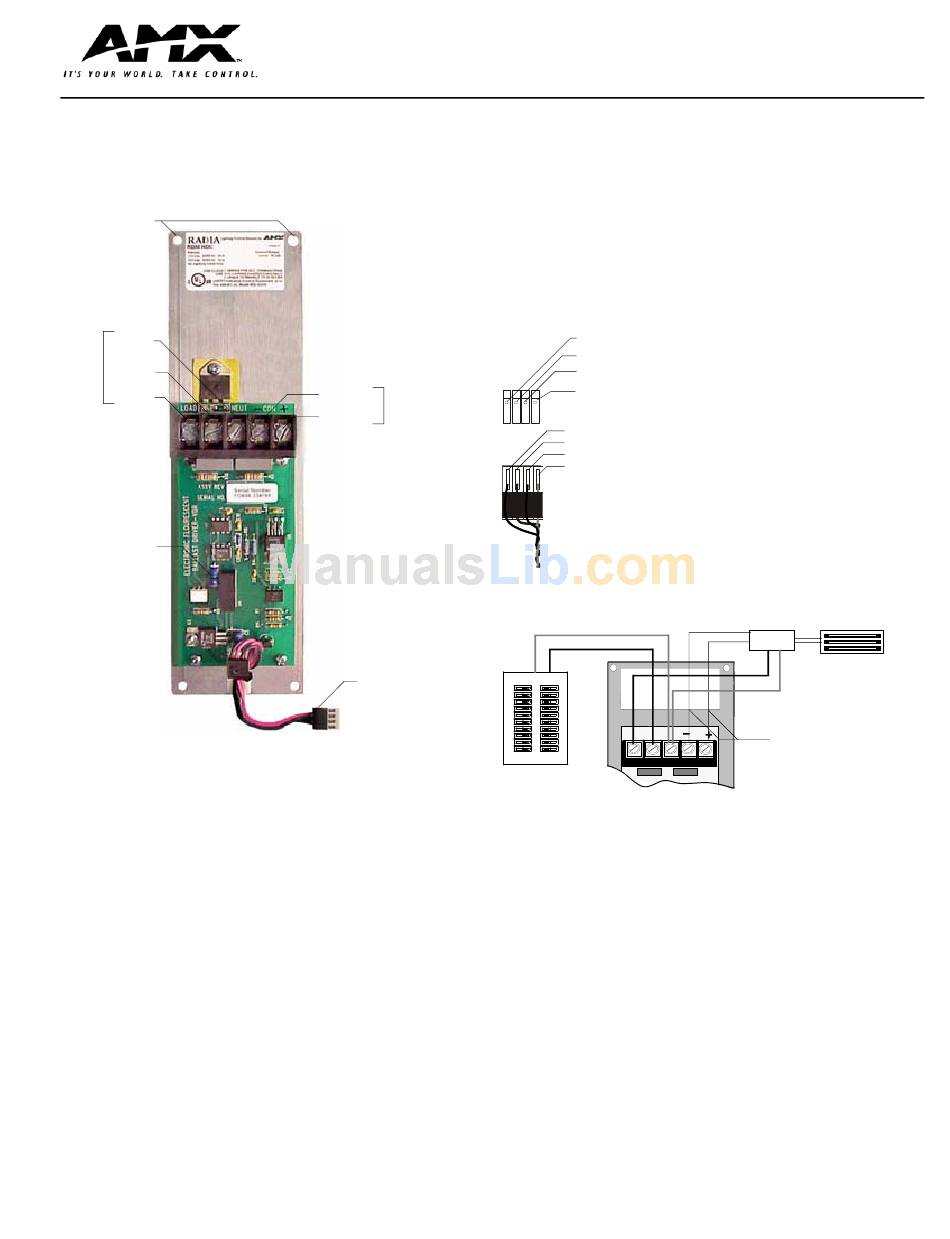

FIG. 1 RDM-HDC
RDM-HDC UL and C-UL Ratings
• 120 VAC, 50/60 Hz, 2400 W
• 240/277 VAC, 50/60 Hz, 2400 W
• Control Out: 50 mA, 12 VDC
sourcing/sinking
Suggested Dimmed Loads
• Four-wire dimmable ballasts
• All low-voltage DC controlled ballasts
Specifications
• Dimensions (HW): 10" x 2.75" (25.4 cm x 6.99 cm)
• Non-phase dependant
• Use wires rated at 75°C (167°F)
• Torque terminals to 20 in-lbs. (2.3 N/M)
• Max. wire size: 10 AWG (4 mm²)
• Wire stripping length: 0.28" (7 mm)
• Weight: 1.3 lbs. (0.590 kg)
• BTU/hr: 150
• Control current: 150 mA @ 12 VDC
Caution: Pre-Installation Notes
Connecting the RDM-HDC to the AMX Lighting Master
- out (LV)
Low-voltage
+ out (LV)
FIG. 2 Connecting the RDM-HDC and AMX Lighting Master
Low-voltage control
wiring: 4-pin
connector to AMX
Lighting master
controller
Circuit breaker
panel
FIG. 3 RDM-HDC application wiring
Warning: Failure to ground the ballast may cause ballast
failure
Installation Sheet
RDM-HDC Heavy Duty DC Module
• All Class 1 wiring must be connected to proper terminals.
• All control wiring must be connected to proper terminals.
• Disconnect power while installing or connecting the unit.
• Keep top and bottom air vents clear at all times.
• Use low-voltage wires with a 300 volt rating or greater.
• Use field installed copper conductors.
• All electrical ratings are for continuous duty.
• For indoor use only.
• Test loads for shorts before connecting.
• This module may require extra power from the AXlink connection or an
external power supply connected to the control card.
Pin 4 (GND)
Pin 3 (RLY)
Pin 2 (DIM)
Pin 1 (+12 V)
RDM-HDC 4-pin module connector
GND
3 (-)
2 (DIM)
1 (+)
4-pin plug from RDM series module
Note: The 4-pin plugs from the module connector to the 4-pin
connector on the master (black plug cover facing up).
Lighting Application Drawings
Neutral
Line in (HOT)
RDM-HDC
LOAD LINE NEUT
2400 W, 0-12 VDC
Florescent Ballast
-
Ballast
+
Load
Neutral
CON Low-voltage wire rated
to 300 V
