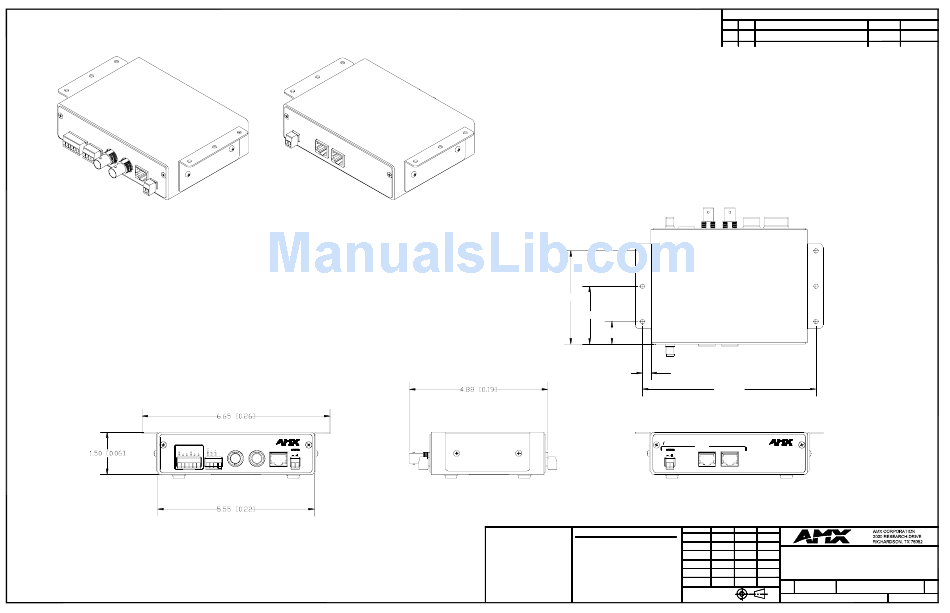

AMX NXA-AVB Dimensional Drawing

LEFT R IGHT
12VDC
AU D IO IN MIC OUT C O MP/Y C IC SNet PWR
3.30 [0.13]
2.05 [0.08]
.80 [0.03]
NXA-AVB
A V BREAKOUT
12VDC
PWR
NOTICE: This drawing is the UNLESS OTHERWISE SPECIFIED:
property of AMX Corporation.
TOLERANCE ON DECIMAL DIMENSIONS: XX = .010
All information contained herein
XXX = .005
that is not generally known
TOLERANCE ON HOLE DIAMETERS:
UNDER .250 ú = +/- .005
shall be confidential except
.250 TO .500 = +.006 -.005
to the extent the information
OVER .500 = +.008 -.005
has been previously established.
FRACTIONAL DIMENSIONS INCLUDING HOLES: +/- 1/64
This drawing may not be copied, ANGLES: +/- 1.0°
SURFACE FLATNESS .003 TIR PER LINEAR INCH.
reproduced, or used as the basis
ALL DIMENSIONS IN INCHES.
for manufacture or sale without
DO NOT SCALE THIS DRAWING.
written permission.
REVISIONS
REV ECN DESCRIPTION
A 4301 RELEASED TO PRODUCTION
.30 [0.01]
6.15 [0.24]
T O PANEL
IC SNet AU D IO / VIDEO
REL APPR REL DATE REV APPR
DRAWN J.L. 05/28/02
T M
DB 10/31/02
ENGR SERV
NXA-AVB, A/V BREAKOUT BOX,
RDR 10/31/02
ENGINEER
PICTORIAL
PROD ENGR MAS 10/31/02
JM 10/31/02
MATL SUP
AK 10/31/02 SIZE DWG. NO.
QUALITY SCALE:
D FULL
THIRD ANGLE
PROJECTION
95225401A
DATE APPROVED
10/31/02
REV.
95-2254-01
A
SHEET 1 OF 1
