Rompa 22126 Manual

For water environments
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

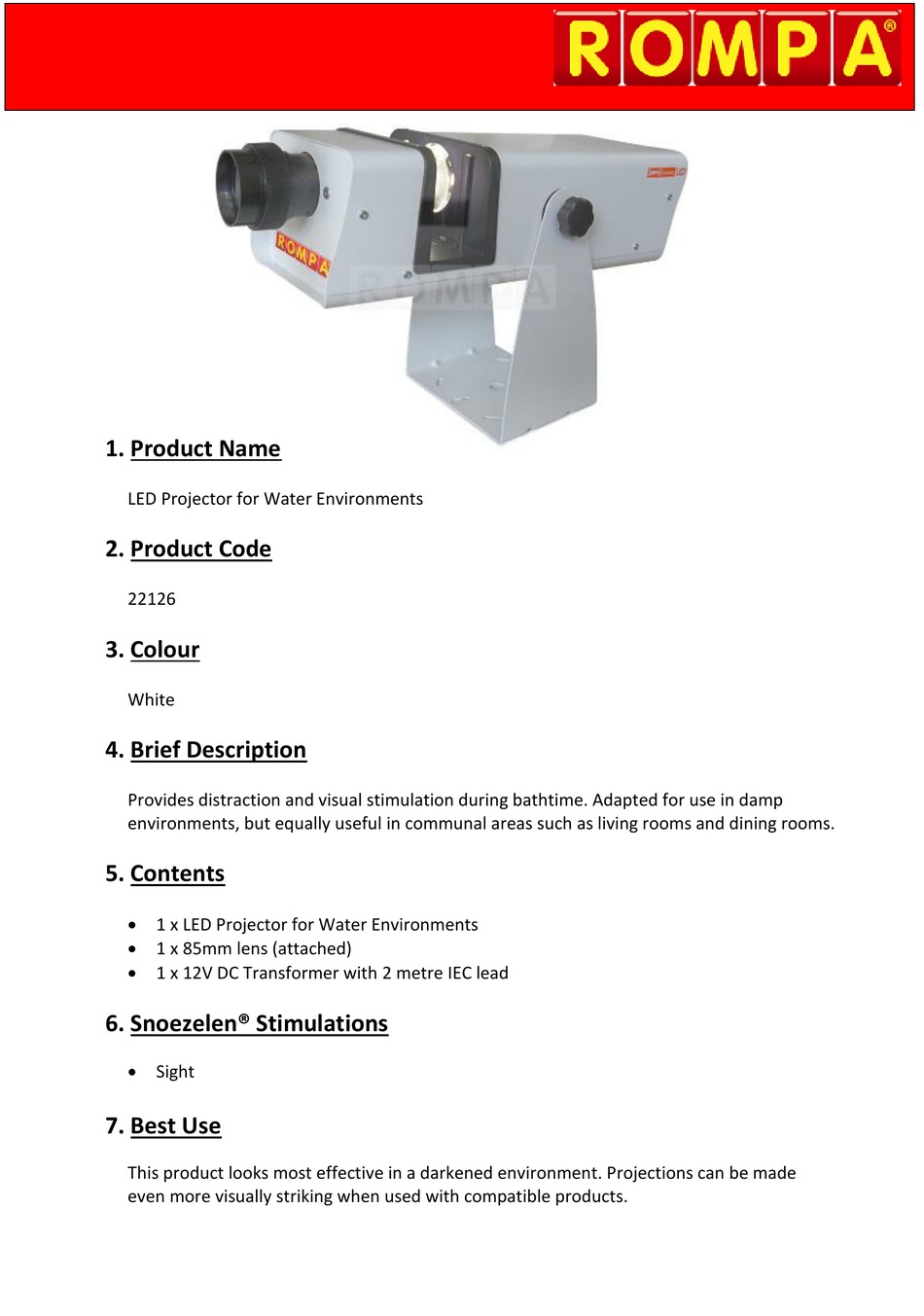

1. Product Name
LED Projector for Water Environments
2. Product Code
22126
3. Colour
White
4. Brief Description
Provides distraction and visual stimulation during bathtime. Adapted for use in damp
environments, but equally useful in communal areas such as living rooms and dining rooms.
5. Contents
 1 x LED Projector for Water Environments
 1 x 85mm lens (attached)
 1 x 12V DC Transformer with 2 metre IEC lead
6. Snoezelen® Stimulations
 Sight
7. Best Use
This product looks most effective in a darkened environment. Projections can be made
even more visually striking when used with compatible products.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 22126 and is the answer not in the manual?

Questions and answers

Vi mcphee
June 5, 2025

The weather is off, not reading the proper weather,to high,how to make the adjustment?

0

Related Manuals for Rompa 22126

Summary of Contents for Rompa 22126

  • Page 1 1. Product Name LED Projector for Water Environments 2. Product Code 22126 3. Colour White 4. Brief Description Provides distraction and visual stimulation during bathtime. Adapted for use in damp environments, but equally useful in communal areas such as living rooms and dining rooms.

  • Page 2: Detailed Description

    8. Compatible ROMPA® Products The LED Projector must be used with an accessory in the rear gate, typically a Wheel Rotator: 22614 Wireless Magnetic Wheel Rotator This projector cannot be used with the Magnetic Wheel Rotator 22335 nor the Standard Wheel Rotator 13170 as both these types of Wheel Rotators have a short cable from the motor that has a 2-pin plug on the end.
  • Page 3 If the carton appears damaged, carefully check the shipping carton for damage and be sure all accessories necessary to operate the unit have arrived intact. In case of any difficulties, please contact ROMPA®.  It is highly advisable that you read the full instructions before use. Keep the instructions in a safe and accessible place so that can be read as required.

  • Page 4: Technical Specification

    12. Technical Specification Size: 34.7L x 13.3W x 10.2cmD (22.8cm including bracket) Power Rating: 62 Watts maximum Voltage: 220-240V~ or 110-120V~ 50/60Hz 12VDC Output Current: 500mA maximum Light: 40W LED Module Average LED Module life 100,000+ hours Weight: 3.2kg Lumens: 850 lumens (on screen) Colour : Colour temperature 4000°...
  • Page 5  Consider the following projection distances AS WELL AS ALL SAFETY REQUIREMENTS OF ELECTRICAL ITEMS IN WET ENVIRONMENTS:...
  • Page 6 Use the projector’s bracket to mount the projector in any of the following ways: CAUTION: Never operate the projector in a position where the air vents can be blocked  Ensure that the projector is secured to a surface or structure able to bear the weight of the projector and accessories, via the bracket fitted using suitable central bolt (minimum: 14mm M10 x 20mm), washers and attachments.
  • Page 7 Place a suitable accessory in the projector e.g. Wireless Wheel Rotator with an Effect Wheel. Slide the Wireless Wheel Rotator (22614 Magnetic) into the rear gate runners (the main effect goes into the rear gate runners, with Distortion Wheels etc. in the front gate runners). Once the Wireless Wheel Rotator is in place, operation will begin instantly.
  • Page 8 Focus the projected image by twisting the lens in and out until the desired focus is achieved. During focusing beware of rotating the projection lens too far out as this can cause the lens to separate from the projector and may drop and break or cause injury. Projector use with external switches The use of external switches is unadvisable in a wet environment –...

  • Page 10: Care And Maintenance

    Do not attempt to open the projector and never touch the LED module - it may fail if touched.  For any repairs, please contact ROMPA®. Do not attempt to repair this product yourself.  Once this product is eventually exhausted, please dispose of it responsibly and appropriately.

  • Page 11: Troubleshooting

    Wheels compatible with your Wheel Rotator In the unlikely event of product failure, please contact us. Further copies of these instructions can be downloaded at www.rompa.com We hope you find our instructions invaluable. If you have any suggestions for improving them further your comments will be greatly received –...
